Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 2.8 GeV2 |
|---|---|
| W : | 1.25 GeV |
| Ps: | 560 MeV |
|

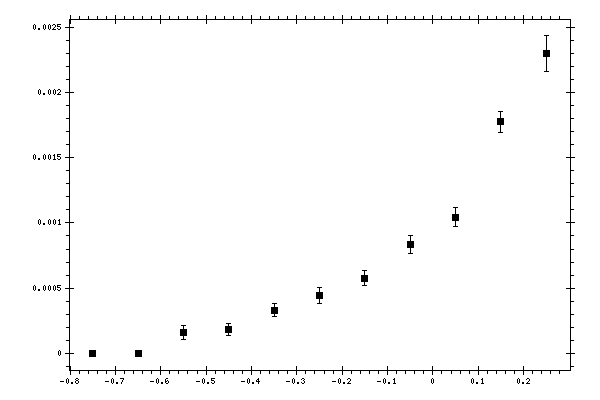

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.75 | 0 | 0 | 4.97327e-05 |
| -0.65 | 0 | 0 | 3.74184e-05 |
| -0.55 | 0.000161084 | 5.42153e-05 | 4.6561e-05 |
| -0.45 | 0.000184283 | 4.68713e-05 | 4.25073e-05 |
| -0.35 | 0.000329834 | 5.03934e-05 | 5.80284e-05 |
| -0.25 | 0.0004408 | 5.96377e-05 | 7.99979e-05 |
| -0.15 | 0.000574108 | 5.73512e-05 | 0.000124755 |
| -0.05 | 0.000836821 | 6.78257e-05 | 0.000177508 |
| 0.05 | 0.00104463 | 7.20493e-05 | 0.000212108 |
| 0.15 | 0.00177592 | 8.14766e-05 | 0.000303481 |
| 0.25 | 0.00230062 | 0.000136906 | 0.000408156 |
