Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 2.8 GeV2 |
|---|---|
| W : | 1.73 GeV |
| Ps: | 560 MeV |
|

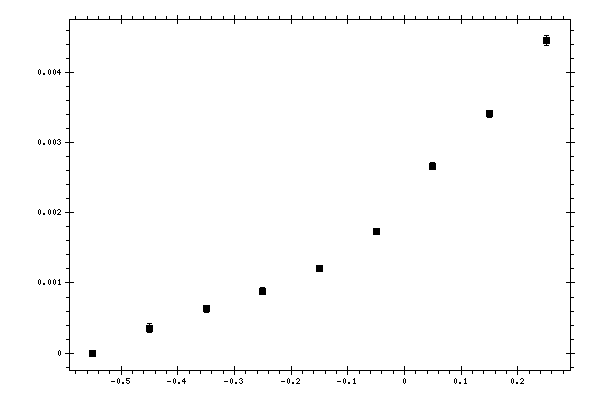

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.55 | 0 | 0 | 5.78555e-05 |
| -0.45 | 0.000357536 | 6.87658e-05 | 5.83975e-05 |
| -0.35 | 0.000629314 | 4.81317e-05 | 8.8499e-05 |
| -0.25 | 0.000885379 | 4.91368e-05 | 0.000122662 |
| -0.15 | 0.00120228 | 3.76196e-05 | 0.000214183 |
| -0.05 | 0.00173274 | 4.55871e-05 | 0.00029109 |
| 0.05 | 0.00266213 | 5.06203e-05 | 0.000396717 |
| 0.15 | 0.0034107 | 5.17181e-05 | 0.00044305 |
| 0.25 | 0.00445602 | 6.61265e-05 | 0.000568624 |
