Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 0.55 GeV2 |
|---|---|
| W : | 2.4 GeV |
| Ps: | 300 MeV |
|

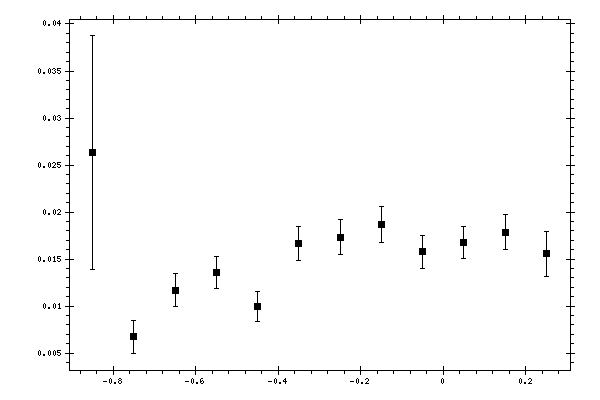

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.85 | 0.0263076 | 0.0124293 | 0.0183463 |
| -0.75 | 0.00673791 | 0.00174016 | 0.00369952 |
| -0.65 | 0.0117112 | 0.00170449 | 0.00195102 |
| -0.55 | 0.013557 | 0.00173773 | 0.00259649 |
| -0.45 | 0.0099477 | 0.00157233 | 0.00261586 |
| -0.35 | 0.0166786 | 0.00177754 | 0.00410106 |
| -0.25 | 0.017332 | 0.0018757 | 0.00480771 |
| -0.15 | 0.0186864 | 0.00187067 | 0.0049668 |
| -0.05 | 0.0158026 | 0.00175435 | 0.00244258 |
| 0.05 | 0.0167626 | 0.0017139 | 0.00263469 |
| 0.15 | 0.0178359 | 0.00186335 | 0.00280371 |
| 0.25 | 0.0155606 | 0.00239547 | 0.00586968 |
