Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 0.18 GeV2 |
|---|---|
| W : | 2.4 GeV |
| Ps: | 340 MeV |
|

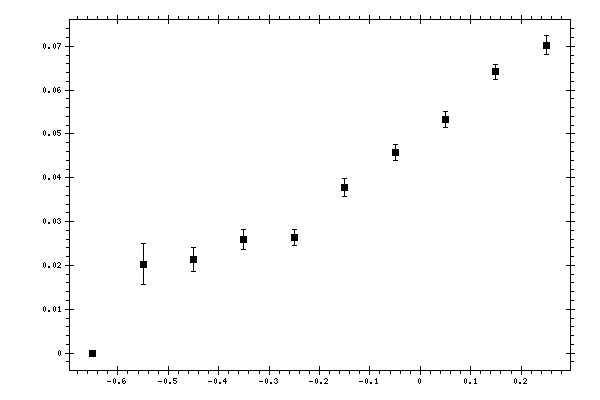

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.65 | 0 | 0 | 0.00453737 |
| -0.55 | 0.0203133 | 0.00467691 | 0.00586588 |
| -0.45 | 0.0214043 | 0.00272624 | 0.00402538 |
| -0.35 | 0.0258906 | 0.00234102 | 0.00570035 |
| -0.25 | 0.0263348 | 0.00186806 | 0.00405462 |
| -0.15 | 0.0376868 | 0.00204359 | 0.01005 |
| -0.05 | 0.0456963 | 0.00185336 | 0.013257 |
| 0.05 | 0.0533147 | 0.00182579 | 0.0170614 |
| 0.15 | 0.0641582 | 0.00169884 | 0.0220108 |
| 0.25 | 0.0702346 | 0.00213667 | 0.0235874 |
