Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 0.25 GeV2 |
|---|---|
| W : | 2.4 GeV |
| Ps: | 340 MeV |
|

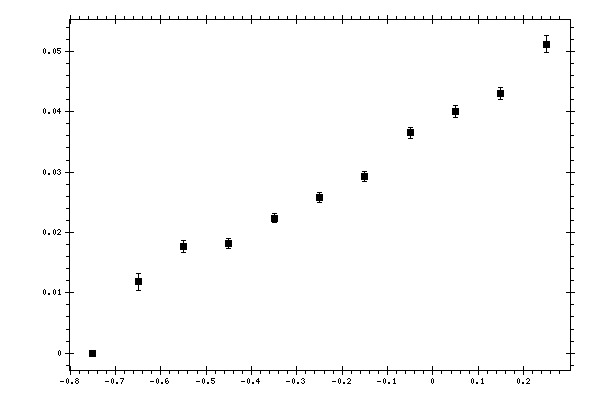

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.75 | 0 | 0 | 0.00425318 |
| -0.65 | 0.0117934 | 0.00133234 | 0.00224495 |
| -0.55 | 0.0177203 | 0.000985481 | 0.003835 |
| -0.45 | 0.018216 | 0.000807664 | 0.00299648 |
| -0.35 | 0.0223856 | 0.000809907 | 0.00395497 |
| -0.25 | 0.0257606 | 0.000824581 | 0.0046091 |
| -0.15 | 0.0293032 | 0.000880894 | 0.00478556 |
| -0.05 | 0.0364963 | 0.000937018 | 0.00783203 |
| 0.05 | 0.0400517 | 0.000989251 | 0.00780789 |
| 0.15 | 0.0430492 | 0.000992658 | 0.00728246 |
| 0.25 | 0.0511949 | 0.00138729 | 0.0107972 |
