Measurement E90M79

You are not logged in.

Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002

Spokespersons: Sebastian Kuhn

Publication:

Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none

Q2 : 0.35 GeV2
W : 2.4 GeV
Ps: 340 MeV

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless

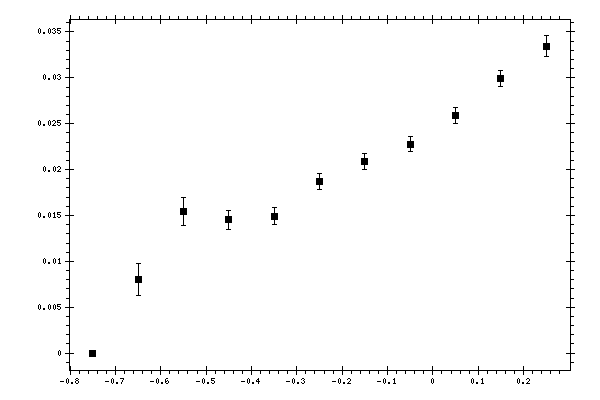

Plot measurement data

Parameter (X axis): cos(θpq), dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

cos(θpq),
dimensionless
F2 * P(Ps),
dimensionless
Data errors,
dimensionless
Systematic errors,
dimensionless
-0.75 0 0 0.00262407
-0.65 0.00800391 0.00172253 0.00250644
-0.55 0.0154178 0.00153176 0.00500468
-0.45 0.0145209 0.00103264 0.00246138
-0.35 0.0149398 0.000908556 0.00230752
-0.25 0.0186739 0.000878274 0.0030303
-0.15 0.0209059 0.000899706 0.00310962
-0.05 0.0227536 0.000817152 0.00301003
0.05 0.0258833 0.000860724 0.00342096
0.15 0.029899 0.000853111 0.0040565
0.25 0.0334678 0.00110693 0.0044218
