Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 0.65 GeV2 |
|---|---|
| W : | 2.4 GeV |
| Ps: | 340 MeV |
|

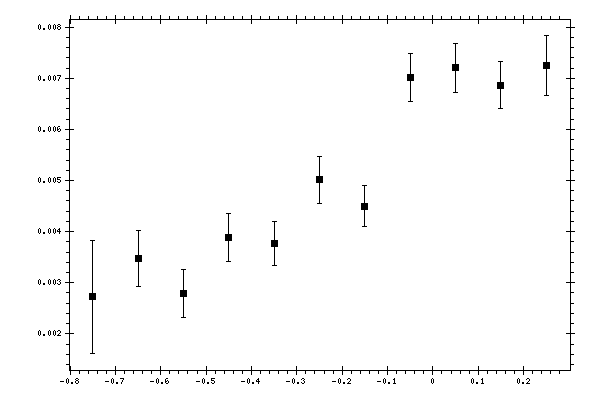

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.75 | 0.00272212 | 0.00109959 | 0.000930403 |
| -0.65 | 0.00347244 | 0.000539424 | 0.000713497 |
| -0.55 | 0.00279247 | 0.000463253 | 0.000637195 |
| -0.45 | 0.00388186 | 0.000473076 | 0.000577495 |
| -0.35 | 0.0037717 | 0.000432293 | 0.000936364 |
| -0.25 | 0.00501206 | 0.000455033 | 0.000770519 |
| -0.15 | 0.00449897 | 0.000404741 | 0.00172844 |
| -0.05 | 0.00701614 | 0.000470628 | 0.00100933 |
| 0.05 | 0.00720217 | 0.000473651 | 0.00149546 |
| 0.15 | 0.00686276 | 0.000456883 | 0.00270956 |
| 0.25 | 0.00724866 | 0.000580265 | 0.00384009 |
