Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 0.18 GeV2 |
|---|---|
| W : | 2.4 GeV |
| Ps: | 390 MeV |
|

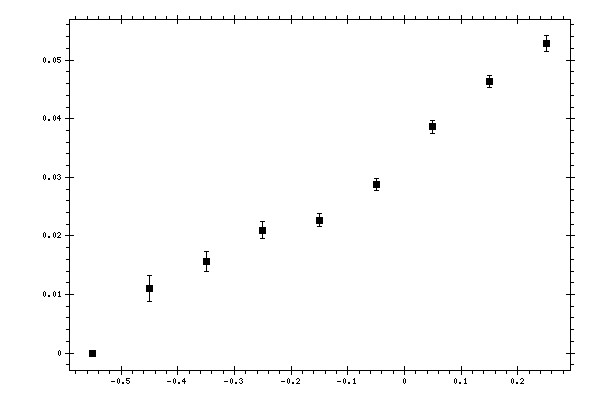

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.55 | 0 | 0 | 0.00238496 |
| -0.45 | 0.0110058 | 0.00219768 | 0.00167049 |
| -0.35 | 0.0156726 | 0.00169849 | 0.00332822 |
| -0.25 | 0.0209614 | 0.00147907 | 0.00664262 |
| -0.15 | 0.0226875 | 0.00114713 | 0.00458779 |
| -0.05 | 0.0287473 | 0.00106651 | 0.00709331 |
| 0.05 | 0.0385992 | 0.00109628 | 0.0129605 |
| 0.15 | 0.0464202 | 0.00100663 | 0.0161945 |
| 0.25 | 0.0528109 | 0.00132985 | 0.018376 |
