Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 0.25 GeV2 |
|---|---|
| W : | 2.4 GeV |
| Ps: | 390 MeV |
|

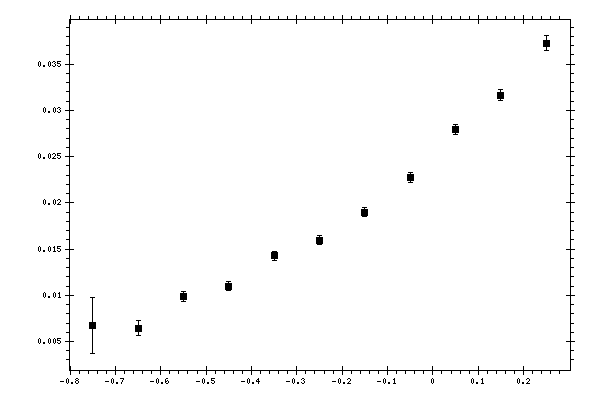

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.75 | 0.00676878 | 0.00302709 | 0.000911081 |
| -0.65 | 0.00645558 | 0.000801658 | 0.00103554 |
| -0.55 | 0.0098415 | 0.000562585 | 0.00221562 |
| -0.45 | 0.0109861 | 0.000471955 | 0.00219389 |
| -0.35 | 0.0142763 | 0.00047472 | 0.0034163 |
| -0.25 | 0.015974 | 0.000468556 | 0.00287542 |
| -0.15 | 0.0189908 | 0.000497183 | 0.00341375 |
| -0.05 | 0.022731 | 0.000493953 | 0.00399881 |
| 0.05 | 0.0279206 | 0.000550521 | 0.00531781 |
| 0.15 | 0.0316327 | 0.000568383 | 0.00540269 |
| 0.25 | 0.0372546 | 0.000795844 | 0.00691694 |
