Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 2.8 GeV2 |
|---|---|
| W : | 1.5 GeV |
| Ps: | 300 MeV |
|

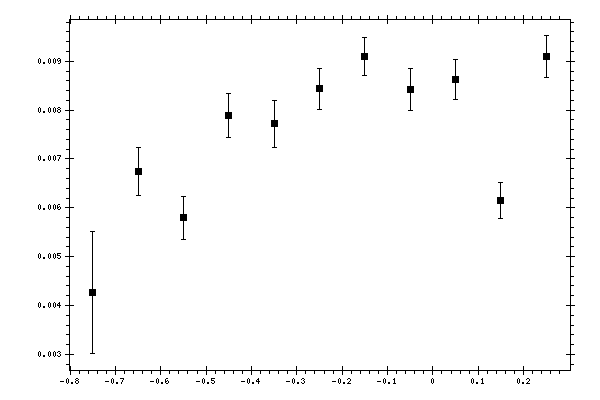

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.75 | 0.0042682 | 0.00124325 | 0.000761932 |
| -0.65 | 0.00674338 | 0.000497734 | 0.00097148 |
| -0.55 | 0.00579794 | 0.000442719 | 0.000838269 |
| -0.45 | 0.00789557 | 0.000454024 | 0.00112712 |
| -0.35 | 0.00771596 | 0.000483919 | 0.00115322 |
| -0.25 | 0.00843356 | 0.000427691 | 0.00123868 |
| -0.15 | 0.00910304 | 0.000389813 | 0.00132138 |
| -0.05 | 0.00842077 | 0.000428657 | 0.0013152 |
| 0.05 | 0.00863198 | 0.000412703 | 0.00136045 |
| 0.15 | 0.00615065 | 0.000370804 | 0.00104231 |
| 0.25 | 0.00909015 | 0.000429655 | 0.00150048 |
