Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 0.65 GeV2 |
|---|---|
| W : | 2.4 GeV |
| Ps: | 390 MeV |
|

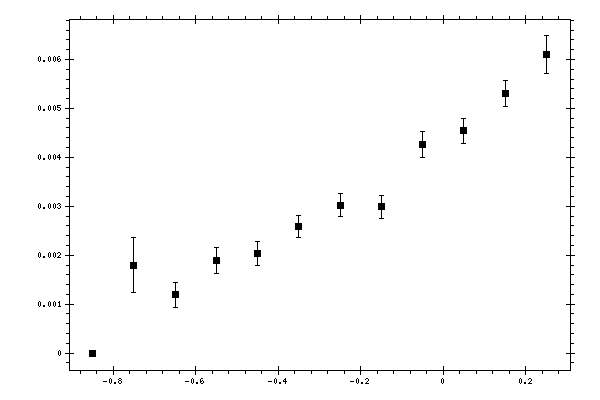

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.85 | 0 | 0 | 0.00133327 |
| -0.75 | 0.00180043 | 0.000563111 | 0.000905021 |
| -0.65 | 0.00118925 | 0.000260668 | 0.000283339 |
| -0.55 | 0.00188931 | 0.000259404 | 0.000327587 |
| -0.45 | 0.00203893 | 0.000250919 | 0.000340651 |
| -0.35 | 0.00258602 | 0.000232569 | 0.000362432 |
| -0.25 | 0.00302526 | 0.000240512 | 0.000434762 |
| -0.15 | 0.00298986 | 0.000229823 | 0.000731805 |
| -0.05 | 0.00427072 | 0.000264863 | 0.00060763 |
| 0.05 | 0.00453872 | 0.000258124 | 0.0010509 |
| 0.15 | 0.00530607 | 0.000273318 | 0.00131051 |
| 0.25 | 0.00609969 | 0.000381676 | 0.00156373 |
