Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 0.35 GeV2 |
|---|---|
| W : | 2.4 GeV |
| Ps: | 460 MeV |
|

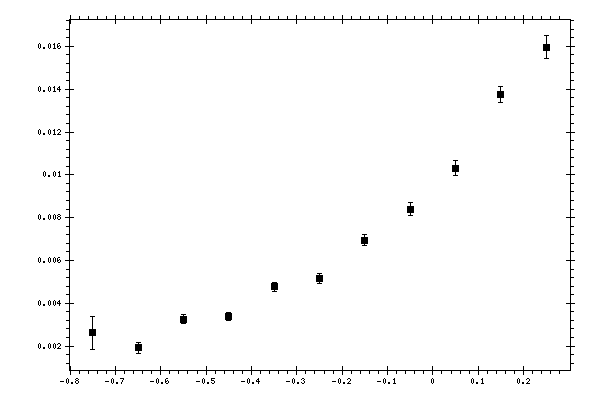

Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.75 | 0.00261592 | 0.000773827 | 0.000508051 |
| -0.65 | 0.00191245 | 0.000240221 | 0.000535287 |
| -0.55 | 0.00326457 | 0.000205189 | 0.000609231 |
| -0.45 | 0.00340468 | 0.000185448 | 0.000471623 |
| -0.35 | 0.00476595 | 0.000201095 | 0.000938686 |
| -0.25 | 0.00517687 | 0.00023112 | 0.00064819 |
| -0.15 | 0.00695016 | 0.00026247 | 0.000860424 |
| -0.05 | 0.00839937 | 0.000302603 | 0.00103328 |
| 0.05 | 0.0103192 | 0.000336681 | 0.00138779 |
| 0.15 | 0.0137501 | 0.000372211 | 0.00167364 |
| 0.25 | 0.0159732 | 0.000520596 | 0.00204978 |
