Parameter (X axis): cos(θpq), dimensionless
You are not logged in.
Experiment: Electron Scattering from a High-Momentum Neutron in Deuterium, 2002
Spokespersons: Sebastian Kuhn
Publication:
Quantity measured: F2 * P(Ps), dimensionless
Structure function times lab momentum distribution.
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p+X, polarization: none
| Q2 : | 0.55 GeV2 |
|---|---|
| W : | 2.4 GeV |
| Ps: | 460 MeV |
|
Observable quantity measured (Y axis): F2 * P(Ps), dimensionless
Parameter (X axis): cos(θpq), dimensionless |
Click here to get data in text file, delimited with tabs.

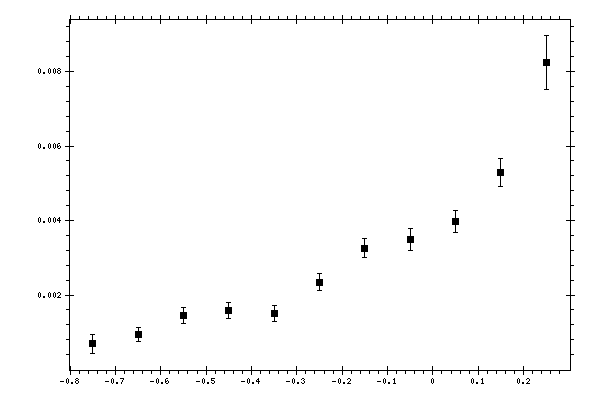

Measured data:
|
cos(θpq),
dimensionless |
F2 * P(Ps),
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| -0.75 | 0.000690009 | 0.000248335 | 0.000230354 |
| -0.65 | 0.000942228 | 0.000186996 | 0.000144274 |
| -0.55 | 0.00145959 | 0.000211019 | 0.000414641 |
| -0.45 | 0.00158439 | 0.00020396 | 0.000342513 |
| -0.35 | 0.00150369 | 0.000203789 | 0.00023107 |
| -0.25 | 0.00234527 | 0.000227572 | 0.000388287 |
| -0.15 | 0.0032584 | 0.000261634 | 0.000702086 |
| -0.05 | 0.00349178 | 0.000283765 | 0.000523206 |
| 0.05 | 0.00396848 | 0.00030065 | 0.000792316 |
| 0.15 | 0.0052855 | 0.000370083 | 0.000867424 |
| 0.25 | 0.00823945 | 0.000716658 | 0.00185268 |
