Parameter (X axis): φ, Degree
You are not logged in.
Experiment: EG1B run, 2006
Spokespersons: Volker Burkert
Experiment comment: The experiment data are from EG1b taken from Sep. 2000 to Apr. 2001.
Publication:
Quantity measured: AUL, dimensionless
Target spin asymmetry.
Beam: e, polarization: polarized
Target: p (Z=1, A=1), polarization: longitudinal
Final state: p+X, polarization: none
| Q2 : | 1 — 4.2 GeV2 |
|---|---|
| W : | 2 — 2.9 GeV |
| xb : | 0.1 — 0.6 |
| Eγ : | 2 — 5 GeV |
|

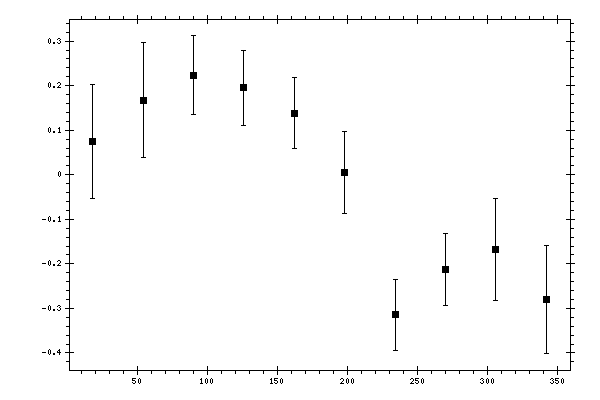

Observable quantity measured (Y axis): AUL, dimensionless
Parameter (X axis): φ, Degree |
Click here to get data in text file, delimited with tabs.
Measured data:
|
φ,
Degree |
AUL,
dimensionless |
Data errors,
dimensionless |
Systematic errors,
dimensionless |
|---|---|---|---|
| 18 | 0.0742775 | 0.127606 | 0.0728303 |
| 54 | 0.167409 | 0.129285 | 0.0255936 |
| 90 | 0.22316 | 0.0887712 | 0.0228193 |
| 126 | 0.194973 | 0.0837723 | 0.0222749 |
| 162 | 0.138675 | 0.0796177 | 0.0133773 |
| 198 | 0.0050099 | 0.0917264 | 0.0385125 |
| 234 | -0.314647 | 0.0800623 | 0.0641947 |
| 270 | -0.213244 | 0.0805967 | 0.0510583 |
| 306 | -0.167803 | 0.114895 | 0.0555684 |
| 342 | -0.280037 | 0.120318 | 0.0822032 |
