Measurement E82M11

You are not logged in.

Experiment: E91-023 CLAS experiment, 1998

Spokespersons: R. Fatemi

Measurement comment: G1 as a function of W and Bjorken X for a mean Q**2 = 0.166116 GeV**2.

Publication:

R. Fatemi, A.V. Skabelin, V. D. Burkert, D. Crabb, R. DeVita, S. E. Kuhn, R. Minehart and CLAS Collaboration Measurement of the Spin Structure Functions in the Resonance Region for Q² from 0.15 to 1.6 GeV² // PRL 91 (2003) 222002

Quantity measured: g₁^d, dimensionless
Spin structure function of the deutron.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: longitudinal
Final state: inclusive, polarization: none

Q² :	0.166116 GeV²
W :	0 GeV
x_b :	0.046516 — 0.350181

Observable quantity measured (Y axis): g₁^d, dimensionless

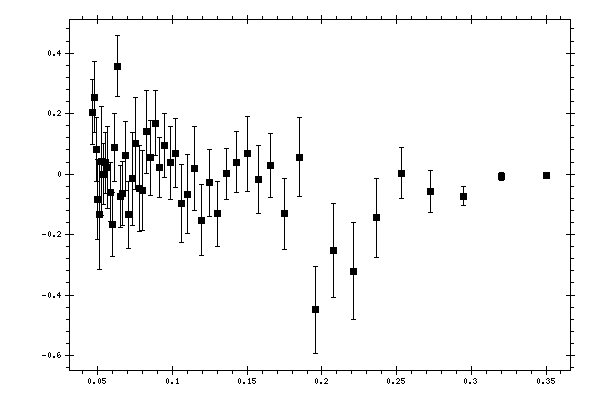

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x, dimensionless	g₁^d, dimensionless	Stat. error, dimensionless
0.350181	-0.004843	0.004134
0.320457	-0.007987	0.01459
0.294965	-0.072624	0.032223
0.272871	-0.057097	0.069917
0.253546	0.002644	0.08466
0.236507	-0.14433	0.130714
0.221378	-0.320421	0.158873
0.20786	-0.253275	0.154766
0.195713	-0.448959	0.143001
0.184743	0.056414	0.131627
0.174791	-0.130903	0.117286
0.165723	0.027596	0.105517
0.15743	-0.018733	0.112912
0.14982	0.067259	0.123682
0.142813	0.039793	0.099965
0.136343	0.001177	0.084762
0.130351	-0.130914	0.108081
0.124789	-0.029183	0.110024
0.119614	-0.151792	0.117769
0.114787	0.019859	0.138583
0.110276	-0.066646	0.13097
0.106051	-0.096149	0.129304
0.102089	0.069083	0.114816
0.098365	0.037112	0.120942
0.09486	0.095359	0.106761
0.091556	0.021939	0.100484
0.088436	0.167995	0.107006
0.085487	0.053386	0.123653
0.082695	0.13972	0.137071
0.080049	-0.055066	0.13156
0.077538	-0.046746	0.143017
0.075153	0.1021	0.152117
0.072884	-0.015706	0.154417
0.070725	-0.134863	0.111428
0.068667	0.060368	0.113674
0.066703	-0.063879	0.106802
0.064829	-0.073316	0.103418
0.063038	0.356461	0.100744
0.061325	0.088462	0.113223
0.059686	-0.166022	0.105509
0.058116	-0.059216	0.096665
0.05661	0.022949	0.135682
0.055167	0.037766	0.101194
0.053781	0.000209	0.100618
0.052449	0.042999	0.18118
0.05117	-0.132825	0.181505
0.049939	-0.083477	0.13128
0.048755	0.081068	0.104899
0.047614	0.253908	0.117325
0.046516	0.20438	0.107822
