Measurement E82M17

You are not logged in.

Experiment: E91-023 CLAS experiment, 1998

Spokespersons: R. Fatemi

Measurement comment: G1 as a function of W and Bjorken X for a mean Q**2 = 0.299227 GeV**2.

Publication:

R. Fatemi, A.V. Skabelin, V. D. Burkert, D. Crabb, R. DeVita, S. E. Kuhn, R. Minehart and CLAS Collaboration Measurement of the Spin Structure Functions in the Resonance Region for Q² from 0.15 to 1.6 GeV² // PRL 91 (2003) 222002

Quantity measured: g₁^d, dimensionless
Spin structure function of the deutron.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: longitudinal
Final state: inclusive, polarization: none

Q² :	0.299227 GeV²
W :	0 GeV
x_b :	0.079004 — 0.492569

Observable quantity measured (Y axis): g₁^d, dimensionless

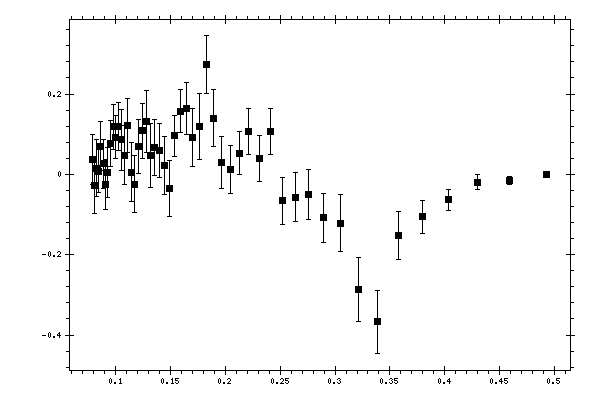

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x, dimensionless	g₁^d, dimensionless	Stat. error, dimensionless
0.492569	-0.000237	0.002503
0.459301	-0.015228	0.010794
0.429749	-0.019952	0.018941
0.403334	-0.063667	0.027179
0.379593	-0.105866	0.041584
0.358149	-0.152019	0.060102
0.33869	-0.366815	0.078231
0.320962	-0.286626	0.079229
0.304748	-0.121241	0.070102
0.289869	-0.108573	0.060925
0.276171	-0.049738	0.062052
0.263524	-0.056348	0.061838
0.251815	-0.065952	0.057903
0.240946	0.10741	0.057105
0.230835	0.039344	0.056935
0.221406	0.107722	0.057017
0.212597	0.052831	0.054254
0.204351	0.012643	0.060217
0.196616	0.028971	0.064485
0.18935	0.140068	0.071649
0.182513	0.272795	0.072055
0.176069	0.119164	0.082197
0.169988	0.09243	0.07225
0.164241	0.163856	0.06519
0.158802	0.156688	0.053421
0.153648	0.095626	0.050882
0.148759	-0.034098	0.069627
0.144117	0.022761	0.07163
0.139703	0.059522	0.068239
0.135502	0.06643	0.070164
0.1315	0.047533	0.079877
0.127685	0.132024	0.076498
0.124043	0.108446	0.068531
0.120565	0.068884	0.066518
0.117239	-0.024395	0.071044
0.114057	0.005173	0.073746
0.111011	0.122057	0.066427
0.108091	0.04777	0.073042
0.105292	0.086133	0.076596
0.102606	0.119136	0.059509
0.100026	0.092293	0.053685
0.097548	0.118422	0.055701
0.095165	0.076485	0.057929
0.092873	0.004854	0.061883
0.090667	-0.02528	0.062757
0.088542	0.026325	0.061726
0.086495	0.070551	0.06033
0.084521	0.00835	0.054638
0.082616	0.015712	0.069988
0.080779	-0.027945	0.069517
0.079004	0.036432	0.062548
