Measurement E11M6
| Experiment: | EG1 | |
|---|---|---|
| Year: | 2000 | |
| Spokespersons: | P. Stoler, V. Burkert, R. Minehart | |
| Reaction: | ep → π0p | |
| Polarization: | beam, target (longitudinal) | |
| Quantity: | Abt(θπ, φπ) | |
| Q2: | 0.223 — 0.379 GeV2 | |
| W: | 1.4 — 1.5 GeV | |
| Publication: |
under preparation //
|
|

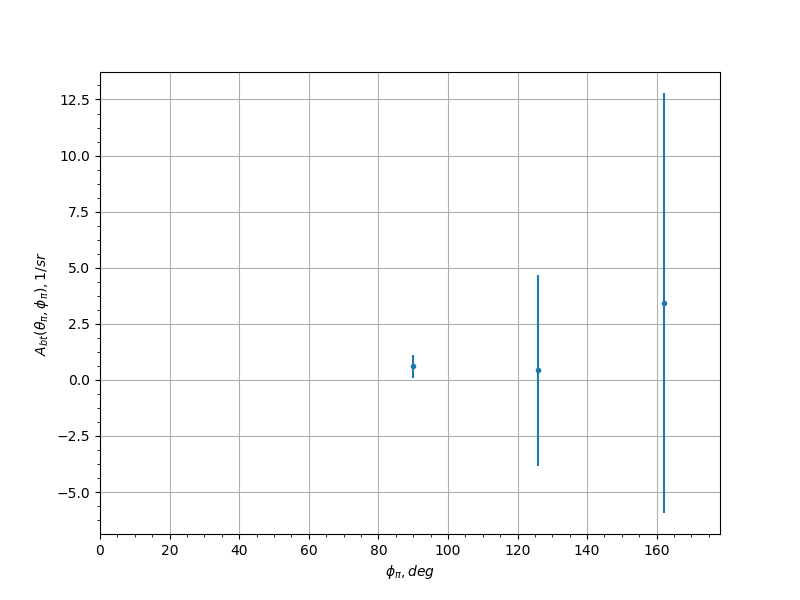

| cos(θπ) | φπ, [deg] | Abt(θπ, φπ), [1/sr] | uncertainty |
|---|---|---|---|
| -0.929 | -162.0 | -0.247 | 1.352 |
| -0.786 | -162.0 | -0.719 | 0.666 |
| -0.643 | -162.0 | 0.578 | 0.52 |
| -0.5 | -162.0 | 0.479 | 0.755 |
| -0.357 | -162.0 | 0.458 | 0.425 |
| -0.214 | -162.0 | 0.474 | 0.369 |
| -0.071 | -162.0 | 0.123 | 0.324 |
| 0.071 | -162.0 | 0.968 | 0.617 |
| 0.214 | -162.0 | 0.161 | 0.348 |
| 0.357 | -162.0 | 0.611 | 0.438 |
| 0.5 | -162.0 | 0.176 | 0.232 |
| 0.643 | -162.0 | 0.408 | 0.276 |
| 0.786 | -162.0 | -0.291 | 0.531 |
| 0.929 | -162.0 | 0.477 | 0.711 |
| -0.929 | -126.0 | 0.081 | 0.51 |
| -0.786 | -126.0 | 0.385 | 0.239 |
| -0.643 | -126.0 | 0.588 | 0.19 |
| -0.5 | -126.0 | 0.231 | 0.243 |
| -0.357 | -126.0 | 0.434 | 0.174 |
| -0.214 | -126.0 | 0.509 | 0.186 |
| -0.071 | -126.0 | 0.277 | 0.132 |
| 0.071 | -126.0 | 0.473 | 0.191 |
| 0.214 | -126.0 | 0.226 | 0.134 |
| 0.357 | -126.0 | -0.082 | 0.151 |
| 0.5 | -126.0 | 0.152 | 0.222 |
| 0.643 | -126.0 | 0.469 | 0.27 |
| 0.786 | -126.0 | -0.14 | 0.226 |
| 0.929 | -126.0 | 5.289 | 16.188 |
| -0.929 | -90.0 | -0.167 | 0.545 |
| -0.786 | -90.0 | 0.491 | 0.333 |
| -0.643 | -90.0 | 0.113 | 0.141 |
| -0.5 | -90.0 | 0.118 | 0.115 |
| -0.357 | -90.0 | 0.269 | 0.116 |
| -0.214 | -90.0 | 0.138 | 0.104 |
| -0.071 | -90.0 | 0.001 | 0.111 |
| 0.071 | -90.0 | 0.432 | 0.144 |
| 0.214 | -90.0 | 0.079 | 0.117 |
| 0.357 | -90.0 | 0.142 | 0.171 |
| 0.5 | -90.0 | 0.167 | 0.138 |
| 0.643 | -90.0 | -0.182 | 0.16 |
| 0.786 | -90.0 | 0.517 | 0.353 |
| 0.929 | -90.0 | 0.751 | 0.706 |
| -0.929 | 90.0 | 0.598 | 0.505 |
| -0.786 | 90.0 | 0.791 | 0.297 |
| -0.643 | 90.0 | 0.199 | 0.203 |
| -0.5 | 90.0 | 0.286 | 0.194 |
| -0.357 | 90.0 | 0.298 | 0.15 |
| -0.214 | 90.0 | 0.172 | 0.118 |
| -0.071 | 90.0 | 0.072 | 0.099 |
| 0.071 | 90.0 | 0.299 | 0.13 |
| 0.214 | 90.0 | 0.016 | 0.11 |
| 0.357 | 90.0 | -0.09 | 0.212 |
| 0.5 | 90.0 | 0.347 | 0.197 |
| 0.643 | 90.0 | 0.104 | 0.27 |
| 0.786 | 90.0 | 0.189 | 0.218 |
| 0.929 | 90.0 | 0.483 | 0.587 |
| -0.929 | 126.0 | 0.421 | 4.239 |
| -0.786 | 126.0 | 1.146 | 0.491 |
| -0.643 | 126.0 | 1.211 | 0.623 |
| -0.5 | 126.0 | 0.137 | 0.199 |
| -0.357 | 126.0 | 0.484 | 0.155 |
| -0.214 | 126.0 | 0.285 | 0.137 |
| -0.071 | 126.0 | 0.102 | 0.13 |
| 0.071 | 126.0 | 0.159 | 0.109 |
| 0.214 | 126.0 | 0.22 | 0.127 |
| 0.357 | 126.0 | 0.266 | 0.133 |
| 0.5 | 126.0 | 0.345 | 0.196 |
| 0.643 | 126.0 | 0.058 | 0.323 |
| 0.786 | 126.0 | 0.008 | 0.301 |
| 0.929 | 126.0 | -1.02 | 0.809 |
| -0.929 | 162.0 | 3.427 | 9.362 |
| -0.786 | 162.0 | 0.7 | 0.642 |
| -0.643 | 162.0 | 1.735 | 1.035 |
| -0.5 | 162.0 | 5.093 | 57.162 |
| -0.357 | 162.0 | 0.704 | 0.323 |
| -0.214 | 162.0 | 0.87 | 0.306 |
| -0.071 | 162.0 | 0.018 | 0.255 |
| 0.071 | 162.0 | 0.464 | 0.277 |
| 0.214 | 162.0 | 0.682 | 0.258 |
| 0.357 | 162.0 | 0.137 | 0.312 |
| 0.5 | 162.0 | 0.326 | 0.219 |
| 0.643 | 162.0 | -0.002 | 0.779 |
| 0.786 | 162.0 | 0.827 | 0.563 |
| 0.929 | 162.0 | 0.169 | 0.469 |
Measurement comment:
