Measurement E12M56

Experiment: E1D and E6A runs CLAS data
Year: 2005
Spokesperson: M. Osipenko
Reaction: ed → inclusive
Polarization: none
Quantity: F2
Q2: 3.075 GeV2
W: 1.6031891498774173 — 3.011386690942364 GeV
x: 0.3565 — 1.4455
Publications:
M. Osipenko, G. Ricco, S. Simula, M. Battaglieri, M. Ripani, and CLAS Collaboration Measurement of the Deuteron Structure Function F2 in the Resonance Region and Evaluation of Its Moments // hep-ex/0506004
M. Osipenko, G. Ricco, S. Simula, M. Battaglieri, M. Ripani, and CLAS Collaboration The deuteron structure function F2 with CLAS // CLAS-NOTE 2005-013 and hep-ex/0507098

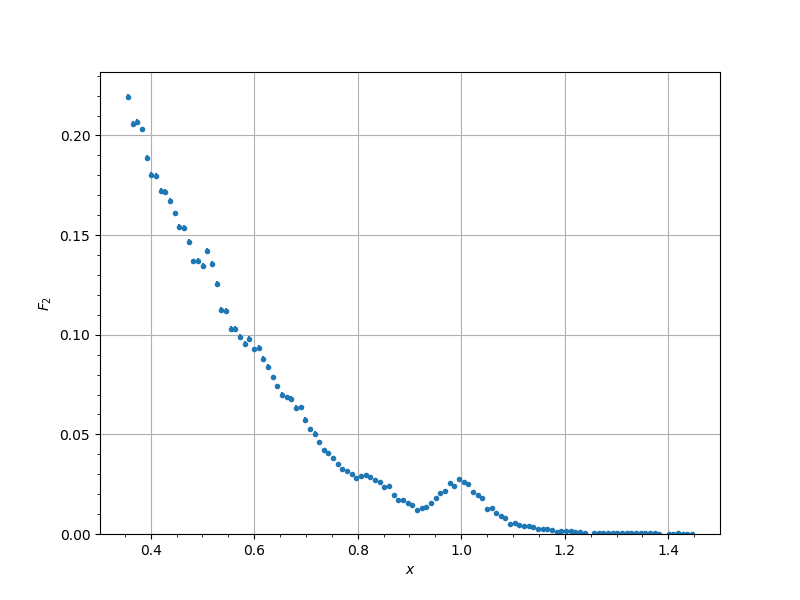

Measurement data
x F2 uncertainty
0.3565 0.21953 0.0012622
0.3655 0.20586 0.0012042
0.3745 0.20679 0.0012733
0.3835 0.20306 0.0012811
0.3925 0.18889 0.0012623
0.4015 0.18023 0.0012807
0.4105 0.17984 0.0013607
0.4195 0.17236 0.0012883
0.4285 0.1717 0.0013239
0.4375 0.16706 0.0013214
0.4465 0.16096 0.001339
0.4555 0.15401 0.0013246
0.4645 0.15356 0.0013976
0.4735 0.14645 0.0014621
0.4825 0.13674 0.0013623
0.4915 0.13711 0.0014068
0.5005 0.13444 0.0013855
0.5095 0.14225 0.0014618
0.5185 0.13564 0.0014742
0.5275 0.12541 0.0014806
0.5365 0.11246 0.0014489
0.5455 0.11197 0.0015333
0.5545 0.10263 0.0015088
0.5635 0.10305 0.0014409
0.5725 0.098718 0.0014109
0.5815 0.095472 0.0013928
0.5905 0.098049 0.0013489
0.5995 0.092611 0.0013308
0.6085 0.093447 0.0013076
0.6175 0.087874 0.0012666
0.6265 0.083974 0.0012671
0.6355 0.07871 0.0012797
0.6445 0.074104 0.0012521
0.6535 0.069981 0.0012649
0.6625 0.068772 0.0012194
0.6715 0.067745 0.0012592
0.6805 0.063476 0.0012445
0.6895 0.063591 0.0013025
0.6985 0.057352 0.0012387
0.7075 0.052549 0.0011386
0.7165 0.050292 0.0011732
0.7255 0.045941 0.0011018
0.7345 0.041956 0.0010867
0.7435 0.040668 0.0010003
0.7525 0.038135 0.00090475
0.7615 0.035256 0.00087848
0.7705 0.032429 0.00083683
0.7795 0.031817 0.00090668
0.7885 0.030067 0.00084307
0.7975 0.028332 0.00092338
0.8065 0.029247 0.00091491
0.8155 0.029538 0.00096612
0.8245 0.028688 0.0009437
0.8335 0.027125 0.0010326
0.8425 0.026316 0.00094578
0.8515 0.0237 0.00095098
0.8605 0.024151 0.00089337
0.8695 0.019661 0.00082373
0.8785 0.017245 0.00072344
0.8875 0.017293 0.00067531
0.8965 0.015651 0.00066913
0.9055 0.014546 0.00059558
0.9145 0.012103 0.00054374
0.9235 0.013016 0.00056802
0.9325 0.013456 0.00057065
0.9415 0.015378 0.00059951
0.9505 0.018025 0.00071587
0.9595 0.020603 0.00081131
0.9685 0.021758 0.00096952
0.9775 0.025392 0.00093596
0.9865 0.024153 0.0010687
0.9955 0.027692 0.0010998
1.0045 0.025909 0.0010968
1.0135 0.024874 0.0010615
1.0225 0.021214 0.00089806
1.0315 0.019679 0.00086216
1.0405 0.018157 0.0008032
1.0495 0.012473 0.00078797
1.0585 0.012854 0.00084386
1.0675 0.010517 0.00057461
1.0765 0.0088056 0.00059535
1.0855 0.0079902 0.0004827
1.0945 0.0052157 0.00048541
1.1035 0.0056592 0.0004063
1.1125 0.004556 0.00035795
1.1215 0.0040986 0.00034764
1.1305 0.0039806 0.00033404
1.1395 0.00327 0.00030761
1.1485 0.0026576 0.00026984
1.1575 0.0027571 0.0002771
1.1665 0.0023328 0.00026414
1.1755 0.0018038 0.00022725
1.1845 0.0012227 0.00018866
1.1935 0.0014271 0.0001979
1.2025 0.0012667 0.00018477
1.2115 0.0013531 0.00018587
1.2205 0.0011868 0.00019005
1.2295 0.00098193 0.00016598
1.2385 0.0006772 0.00013544
1.2565 0.00067782 0.00014451
1.2655 0.00066203 0.00014115
1.2745 0.00036816 9.8394e-05
1.2835 0.00063959 0.00013957
1.2925 0.00039994 0.00010326
1.3015 0.00069403 0.00014472
1.3105 0.00044821 0.00011573
1.3195 0.00045563 0.00011051
1.3285 0.00033001 0.00010436
1.3375 0.00026917 8.9722e-05
1.3465 0.00028682 9.07e-05
1.3555 0.00037535 0.00011317
1.3645 0.0002688 8.96e-05
1.3735 0.00047313 0.00013122
1.3825 0.00023722 8.3871e-05
1.4005 0.0001637 7.3207e-05
1.4095 0.00025003 8.8401e-05
1.4185 0.00034339 0.00011446
1.4275 0.00013586 6.0757e-05
1.4365 0.00012867 6.4335e-05
1.4455 0.00010951 5.4754e-05
