Measurement E12M59

Experiment: E1D and E6A runs CLAS data
Year: 2005
Spokesperson: M. Osipenko
Reaction: ed → inclusive
Polarization: none
Quantity: F2
Q2: 3.225 GeV2
W: 1.5975350548509353 — 3.019346496751481 GeV
x: 0.3655 — 1.4275
Publications:
M. Osipenko, G. Ricco, S. Simula, M. Battaglieri, M. Ripani, and CLAS Collaboration Measurement of the Deuteron Structure Function F2 in the Resonance Region and Evaluation of Its Moments // hep-ex/0506004
M. Osipenko, G. Ricco, S. Simula, M. Battaglieri, M. Ripani, and CLAS Collaboration The deuteron structure function F2 with CLAS // CLAS-NOTE 2005-013 and hep-ex/0507098

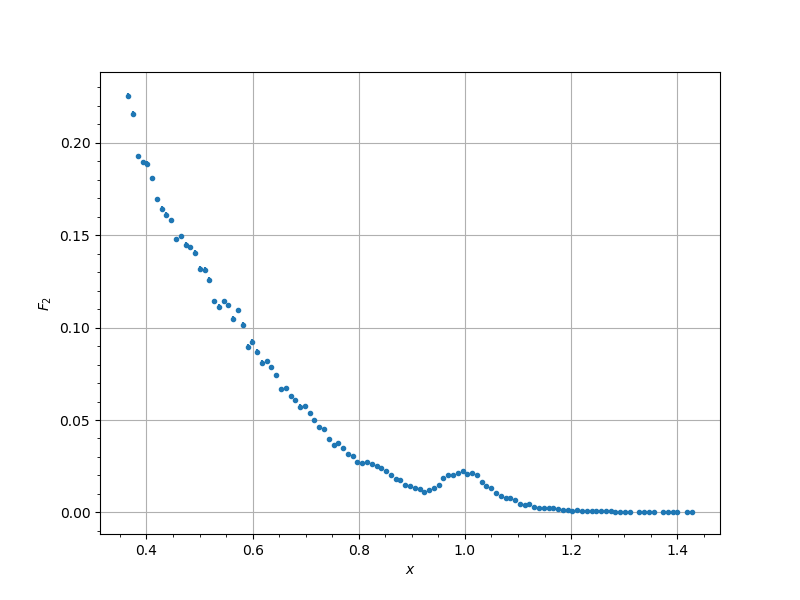

Measurement data
x F2 uncertainty
0.3655 0.22541 0.0014093
0.3745 0.21572 0.0013286
0.3835 0.19273 0.0012349
0.3925 0.18961 0.0012214
0.4015 0.1886 0.0012752
0.4105 0.18075 0.0012995
0.4195 0.16927 0.0012723
0.4285 0.16414 0.0013284
0.4375 0.16091 0.0014312
0.4465 0.15808 0.0013299
0.4555 0.14777 0.0012937
0.4645 0.14938 0.0013364
0.4735 0.14485 0.0013601
0.4825 0.14346 0.0013949
0.4915 0.14034 0.0013548
0.5005 0.13184 0.001355
0.5095 0.13117 0.0014703
0.5185 0.12574 0.0015487
0.5275 0.11413 0.0014173
0.5365 0.11122 0.0013163
0.5455 0.11414 0.0013851
0.5545 0.11192 0.0014025
0.5635 0.10486 0.001401
0.5725 0.10933 0.0014552
0.5815 0.10143 0.0014703
0.5905 0.089585 0.0014376
0.5995 0.092271 0.0014819
0.6085 0.086867 0.0015002
0.6175 0.080835 0.0014031
0.6265 0.08174 0.001312
0.6355 0.078531 0.0011948
0.6445 0.07437 0.0011507
0.6535 0.066759 0.0011336
0.6625 0.06741 0.0010968
0.6715 0.062882 0.0012132
0.6805 0.060954 0.0011609
0.6895 0.057276 0.0012309
0.6985 0.057418 0.0011724
0.7075 0.053641 0.0011312
0.7165 0.050198 0.0011431
0.7255 0.046349 0.0011886
0.7345 0.045091 0.0011599
0.7435 0.039628 0.00099311
0.7525 0.036702 0.001016
0.7615 0.037461 0.0009239
0.7705 0.034622 0.0010337
0.7795 0.03187 0.00099103
0.7885 0.030643 0.00089691
0.7975 0.027302 0.00084813
0.8065 0.026996 0.0010831
0.8155 0.027353 0.00086843
0.8245 0.026338 0.00089783
0.8335 0.025142 0.0010222
0.8425 0.024103 0.00083613
0.8515 0.022539 0.00090148
0.8605 0.020058 0.00079849
0.8695 0.018121 0.00067769
0.8785 0.017367 0.00067516
0.8875 0.014862 0.00069338
0.8965 0.014085 0.00060051
0.9055 0.013148 0.00056826
0.9145 0.012455 0.00050976
0.9235 0.011006 0.00050582
0.9325 0.012088 0.00050542
0.9415 0.013065 0.00062059
0.9505 0.014909 0.00074865
0.9595 0.018724 0.0007316
0.9685 0.020022 0.00084462
0.9775 0.020042 0.00099513
0.9865 0.021516 0.0010253
0.9955 0.022322 0.0010741
1.0045 0.020669 0.0013319
1.0135 0.021379 0.00095421
1.0225 0.020292 0.0011064
1.0315 0.016261 0.00097111
1.0405 0.014097 0.0009875
1.0495 0.013191 0.00092652
1.0585 0.010553 0.0007294
1.0675 0.008706 0.00068073
1.0765 0.0077128 0.00064825
1.0855 0.0079788 0.00055456
1.0945 0.0066128 0.00048487
1.1035 0.0046623 0.00042039
1.1125 0.0043029 0.00038956
1.1215 0.0048374 0.00053846
1.1305 0.0029195 0.00031482
1.1395 0.0023757 0.0004286
1.1485 0.0025874 0.00029679
1.1575 0.002552 0.00030502
1.1665 0.0021614 0.0002838
1.1755 0.0020969 0.00026848
1.1845 0.0010969 0.00019094
1.1935 0.0011261 0.00019907
1.2025 0.00094631 0.00018559
1.2115 0.0013853 0.00022473
1.2205 0.00087754 0.0001721
1.2295 0.0010156 0.00021177
1.2385 0.00059815 0.00014954
1.2475 0.00068853 0.00015796
1.2565 0.00070217 0.00041632
1.2655 0.00073206 0.00016369
1.2745 0.00064627 0.00015233
1.2835 0.00052163 0.00013041
1.2925 0.00038168 0.00010586
1.3015 5.6429e-06 0.00028998
1.3105 0.00039281 0.00010895
1.3285 0.00025889 0.00010569
1.3375 0.00044529 0.00013426
1.3465 0.00015292 6.8386e-05
1.3555 0.00029582 9.8608e-05
1.3735 0.00032032 0.00010129
1.3825 0.00025544 9.0311e-05
1.3915 0.00028862 0.00010204
1.4005 0.00034306 0.00012129
1.4185 4.424e-05 4.424e-05
1.4275 0.00026387 9.9734e-05
