Measurement E12M85

Experiment: E1D and E6A runs CLAS data
Year: 2005
Spokesperson: M. Osipenko
Reaction: ed → inclusive
Polarization: none
Quantity: F2
Q2: 4.525 GeV2
W: 1.5947839295422812 — 2.7515673547659043 GeV
x: 0.5275 — 1.2745
Publications:
M. Osipenko, G. Ricco, S. Simula, M. Battaglieri, M. Ripani, and CLAS Collaboration Measurement of the Deuteron Structure Function F2 in the Resonance Region and Evaluation of Its Moments // hep-ex/0506004
M. Osipenko, G. Ricco, S. Simula, M. Battaglieri, M. Ripani, and CLAS Collaboration The deuteron structure function F2 with CLAS // CLAS-NOTE 2005-013 and hep-ex/0507098

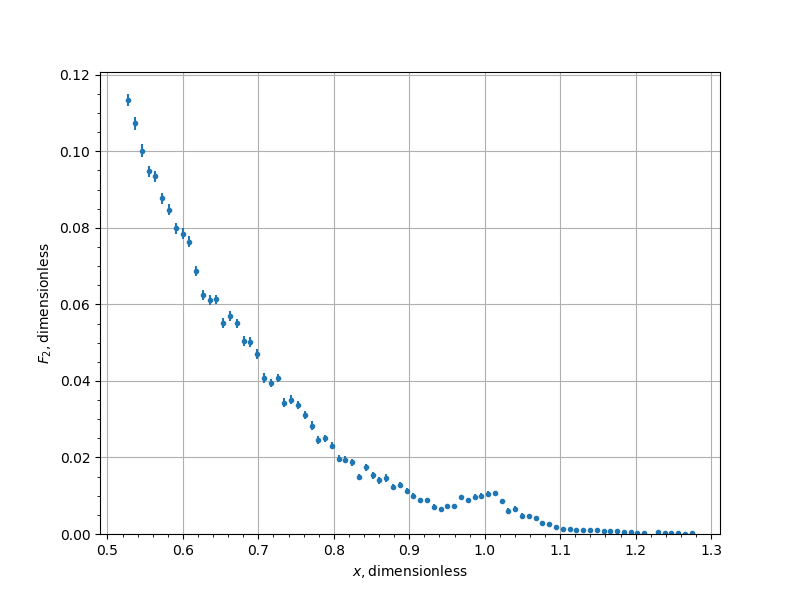

Measurement data
x F2 uncertainty syst. uncert.
0.5275 0.11344 0.0015366 0.0096508
0.5365 0.1073 0.0016329 0.0090168
0.5455 0.10019 0.0016431 0.0083479
0.5545 0.094785 0.0014404 0.0078624
0.5635 0.093474 0.0015084 0.0077342
0.5725 0.08772 0.0014254 0.0072424
0.5815 0.084677 0.0014395 0.0069887
0.5905 0.07986 0.0014389 0.0065777
0.5995 0.078503 0.0013736 0.0064692
0.6085 0.076423 0.0014032 0.0062882
0.6175 0.068655 0.0012728 0.0056444
0.6265 0.062513 0.0012924 0.0051374
0.6355 0.061228 0.0012816 0.00503
0.6445 0.06135 0.001169 0.0050337
0.6535 0.055068 0.0012825 0.0045185
0.6625 0.0569 0.0013104 0.0046763
0.6715 0.05506 0.001209 0.0045185
0.6805 0.050453 0.0012372 0.0041396
0.6895 0.050133 0.0012913 0.004105
0.6985 0.047074 0.0012617 0.003862
0.7075 0.040845 0.0013049 0.0033499
0.7165 0.039463 0.0011626 0.0032311
0.7255 0.040715 0.001127 0.0033426
0.7345 0.034334 0.0012315 0.0028157
0.7435 0.035089 0.0012061 0.0028822
0.7525 0.033629 0.0010917 0.0027603
0.7615 0.031097 0.0011494 0.0025525
0.7705 0.028335 0.001075 0.0023275
0.7795 0.02453 0.00097501 0.0020158
0.7885 0.025003 0.0009498 0.0020581
0.7975 0.023083 0.00096784 0.001895
0.8065 0.019696 0.00099935 0.0016151
0.8155 0.019397 0.00089151 0.0015921
0.8245 0.018781 0.00090955 0.0015441
0.8335 0.014923 0.00088551 0.0012236
0.8425 0.017475 0.00088351 0.0014334
0.8515 0.015332 0.00084653 0.0012616
0.8605 0.013992 0.00081976 0.0011487
0.8695 0.014682 0.00098913 0.0012104
0.8785 0.012344 0.0006665 0.0010174
0.8875 0.012723 0.00077399 0.0010531
0.8965 0.011167 0.0007301 0.00091697
0.9055 0.010014 0.00075511 0.00082053
0.9145 0.0087617 0.00066554 0.00071518
0.9235 0.0088261 0.00051739 0.00071999
0.9325 0.0071548 0.00057528 0.00058088
0.9415 0.0064481 0.00040066 0.00052318
0.9505 0.0073755 0.00052537 0.0005997
0.9595 0.0073134 0.00055933 0.00059649
0.9685 0.0095944 0.00056733 0.0007829
0.9775 0.0088793 0.00057435 0.00072599
0.9865 0.0097781 0.00063382 0.00080384
0.9955 0.0099915 0.0006617 0.00082277
1.0045 0.01046 0.00068528 0.00086289
1.0135 0.010609 0.00073384 0.00087879
1.0225 0.0085008 0.00065979 0.00070097
1.0315 0.005989 0.00075267 0.00049376
1.0405 0.0065981 0.00061796 0.00054401
1.0495 0.0047842 0.0006884 0.00039096
1.0585 0.0047399 0.00052994 0.00039289
1.0675 0.0041599 0.00046509 0.00033984
1.0765 0.0029497 0.00038732 0.00024102
1.0855 0.0026816 0.0003755 0.00021854
1.0945 0.0017475 0.0005918 0.00014467
1.1035 0.0013848 0.00024871 0.00011179
1.1125 0.0012572 0.0005472 0.00010305
1.1215 0.00097558 0.00020799 7.8674e-05
1.1305 0.00098238 0.00020053 7.9293e-05
1.1395 0.0010899 0.00024372 8.9003e-05
1.1485 0.00099362 0.00022795 8.0719e-05
1.1575 0.00087863 0.00020709 7.1345e-05
1.1665 0.00078894 0.00021085 6.4649e-05
1.1755 0.00065655 0.00018953 5.3274e-05
1.1845 0.00064483 0.00017884 5.1844e-05
1.1935 0.0004065 0.0001355 3.2775e-05
1.2025 0.00036858 0.00013031 2.9778e-05
1.2115 0.00035407 0.00013383 2.8917e-05
1.2295 0.00047383 0.00015794 3.8649e-05
1.2385 0.00037655 0.00012552 3.0463e-05
1.2475 0.00031497 0.00011905 2.5301e-05
1.2565 0.00031909 0.0001427 2.6692e-05
1.2655 0.00012128 6.0642e-05 9.7212e-06
1.2745 0.00013427 7.7522e-05 1.1316e-05
