Measurement E142M262
| Experiment: | E00-112 CLAS experiment | |
|---|---|---|
| Year: | 0 | |
| Spokesperson: | Daniel S. Carman | |
| Reaction: | ep → K+ Σ0 | |
| Polarization: | none | |
| Quantity: | dσ/dΩ | |
| Q2: | 2.6 GeV2 | |
| W: | 1.695 GeV | |
| Publication: |
D. S. Carman et al. (CLAS Collaboration) //
Phys. Rev. C 87, 025204 (2013)
|
|

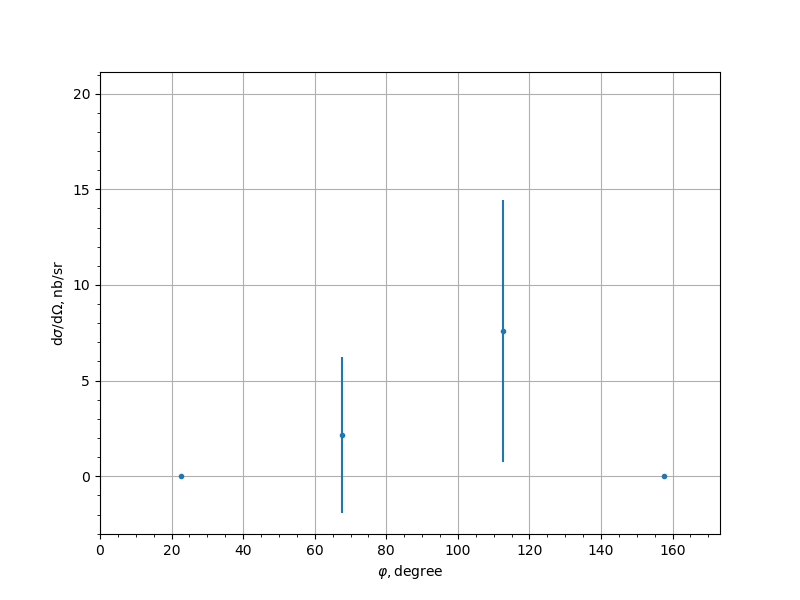

| cos(θ) | φ, [degree] | dσ/dΩ, [nb/sr] | uncertainty |
|---|---|---|---|
| -0.775 | -157.5 | 1.516 | 2.814 |
| -0.775 | -112.5 | 5.91 | 6.047 |
| -0.775 | -67.5 | 10.861 | 9.176 |
| -0.775 | -22.5 | 3.157 | 4.649 |
| -0.775 | 22.5 | 0.0 | 0.0 |
| -0.775 | 67.5 | 2.144 | 4.065 |
| -0.775 | 112.5 | 7.574 | 6.849 |
| -0.775 | 157.5 | 0.0 | 0.0 |
| -0.525 | -157.5 | 2.611 | 3.297 |
| -0.525 | -112.5 | 4.169 | 4.554 |
| -0.525 | -67.5 | 9.781 | 8.203 |
| -0.525 | -22.5 | 5.101 | 5.641 |
| -0.525 | 22.5 | 4.0 | 4.993 |
| -0.525 | 67.5 | 2.874 | 4.436 |
| -0.525 | 112.5 | 2.502 | 3.526 |
| -0.525 | 157.5 | 7.723 | 5.679 |
| -0.3 | -157.5 | 7.245 | 5.074 |
| -0.3 | -112.5 | 8.03 | 5.676 |
| -0.3 | -67.5 | 3.818 | 4.583 |
| -0.3 | -22.5 | 3.45 | 4.348 |
| -0.3 | 22.5 | 11.524 | 7.978 |
| -0.3 | 67.5 | 10.593 | 7.659 |
| -0.3 | 112.5 | 6.404 | 5.066 |
| -0.3 | 157.5 | 12.508 | 6.681 |
| -0.1 | -157.5 | 10.892 | 6.646 |
| -0.1 | -112.5 | 12.835 | 8.438 |
| -0.1 | -67.5 | 0.0 | 0.0 |
| -0.1 | -22.5 | 11.562 | 8.547 |
| -0.1 | 22.5 | 0.0 | 0.0 |
| -0.1 | 67.5 | 9.285 | 7.41 |
| -0.1 | 112.5 | 9.617 | 7.296 |
| -0.1 | 157.5 | 5.707 | 4.803 |
| 0.1 | -157.5 | 15.5 | 9.091 |
| 0.1 | -112.5 | 4.816 | 5.127 |
| 0.1 | -67.5 | 6.727 | 6.789 |
| 0.1 | -22.5 | 14.069 | 9.729 |
| 0.1 | 22.5 | 10.439 | 8.37 |
| 0.1 | 67.5 | 6.63 | 6.74 |
| 0.1 | 112.5 | 7.697 | 6.486 |
| 0.1 | 157.5 | 4.884 | 5.089 |
| 0.3 | -157.5 | 1.696 | 2.893 |
| 0.3 | -112.5 | 8.701 | 7.156 |
| 0.3 | -67.5 | 2.821 | 4.534 |
| 0.3 | -22.5 | 10.859 | 8.041 |
| 0.3 | 22.5 | 6.32 | 6.126 |
| 0.3 | 67.5 | 9.365 | 8.278 |
| 0.3 | 112.5 | 7.528 | 6.654 |
| 0.3 | 157.5 | 7.017 | 5.891 |
| 0.5 | -157.5 | 4.066 | 5.312 |
| 0.5 | -112.5 | 5.948 | 6.604 |
| 0.5 | -67.5 | 20.063 | 14.323 |
| 0.5 | -22.5 | 5.234 | 6.846 |
| 0.5 | 22.5 | 4.438 | 6.302 |
| 0.5 | 67.5 | 6.83 | 8.333 |
| 0.5 | 112.5 | 1.412 | 3.215 |
| 0.5 | 157.5 | 6.665 | 6.804 |
| 0.675 | -157.5 | 1.944 | 7.446 |
| 0.675 | -112.5 | 0.5 | 4.03 |
| 0.675 | -67.5 | 2.7 | 10.511 |
| 0.675 | -22.5 | 3.017 | 10.322 |
| 0.675 | 22.5 | 3.533 | 11.17 |
| 0.675 | 67.5 | 1.375 | 7.499 |
| 0.675 | 112.5 | 1.064 | 5.877 |
| 0.675 | 157.5 | 2.455 | 8.368 |
| 0.825 | -157.5 | 0.13 | 6.783 |
| 0.825 | -112.5 | 0.288 | 11.026 |
| 0.825 | -67.5 | 0.101 | 6.688 |
| 0.825 | -22.5 | 0.287 | 10.943 |
| 0.825 | 22.5 | 0.29 | 11.014 |
| 0.825 | 67.5 | 0.255 | 10.631 |
| 0.825 | 112.5 | 0.24 | 10.069 |
| 0.825 | 157.5 | 0.0 | 0.0 |
| 0.95 | -157.5 | 6.777 | 14.398 |
| 0.95 | -112.5 | 1.823 | 7.4 |
| 0.95 | -67.5 | 2.941 | 9.773 |
| 0.95 | -22.5 | 0.0 | 0.0 |
| 0.95 | 22.5 | 2.928 | 9.446 |
| 0.95 | 67.5 | 1.985 | 8.028 |
| 0.95 | 112.5 | 2.87 | 9.287 |
| 0.95 | 157.5 | 3.457 | 10.281 |
Experiment comment:
