Measurement E151M1041

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: AUL
εL: 0.378
Q2: 0.2915 GeV2
W: 1475.0 GeV
Ebeam: 2.999 GeV
ε: 0.9269

Slice: cos(θπ+) =

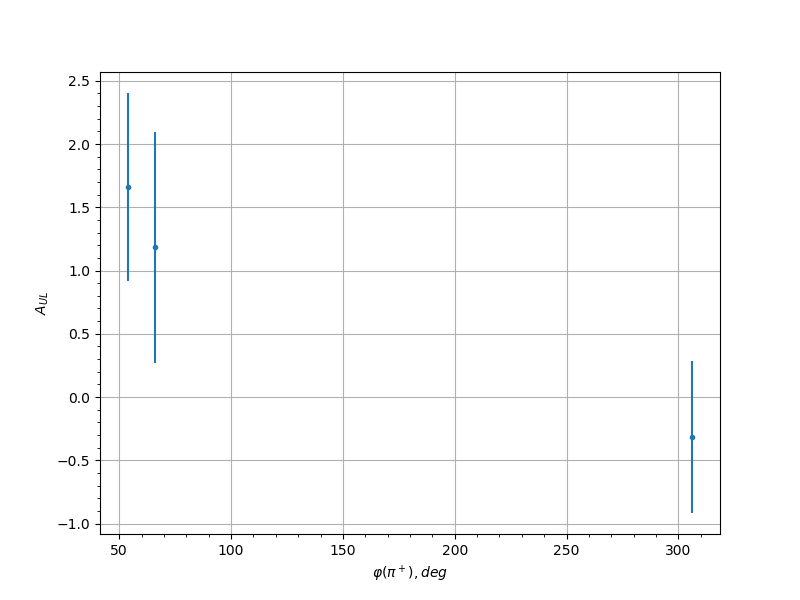

Measurement data
cos(θπ+) φ(π+), [deg] AUL uncertainty syst. uncert.
0.05 54.0 1.6614 0.7422 0.1251
0.05 66.0 1.1823 0.9155 0.0915
0.05 306.0 -0.3172 0.5997 0.0379
0.15 54.0 1.0413 0.7169 0.0818
0.15 66.0 1.4836 0.6743 0.1125
0.15 78.0 0.1606 0.7272 0.0322
0.15 282.0 0.0202 0.7535 0.03
0.15 294.0 -0.7294 0.5945 0.0612
0.25 54.0 -0.1516 0.6233 0.032
0.25 66.0 0.8161 0.7506 0.0668
0.25 78.0 -0.205 0.6268 0.0335
0.25 282.0 -1.3123 0.4739 0.1005
0.25 294.0 0.7698 0.5833 0.0638
0.25 306.0 -1.026 0.585 0.0808
0.35 54.0 1.6663 0.8077 0.1254
0.35 66.0 0.3168 0.6199 0.0379
0.35 78.0 0.8367 0.9352 0.0681
0.35 282.0 -0.0866 0.5188 0.0307
0.35 294.0 0.0596 0.5236 0.0303
0.45 78.0 1.4207 0.8874 0.1081
0.45 90.0 -0.0084 0.6832 0.03
0.45 102.0 -0.5915 0.5721 0.0526
0.45 270.0 -0.2019 0.6432 0.0334
0.45 282.0 -0.8287 0.451 0.0676
0.45 294.0 0.3966 0.5589 0.0417
0.45 306.0 0.6281 0.8259 0.0548
0.55 78.0 0.638 0.7644 0.0554
0.55 90.0 -0.1661 0.4906 0.0324
0.55 102.0 0.4302 0.5284 0.0435
0.55 114.0 -1.634 0.4329 0.1231
0.55 258.0 -0.547 0.5795 0.05
0.55 270.0 0.0498 0.6917 0.0302
0.55 282.0 -0.4462 0.5417 0.0443
0.55 306.0 -0.1842 0.5061 0.0329
0.65 78.0 -0.9243 0.4003 0.0739
0.65 90.0 0.1623 0.464 0.0323
0.65 102.0 -0.8015 0.4312 0.0658
0.65 114.0 -0.2847 0.4726 0.0365
0.65 126.0 0.3369 0.618 0.0388
0.65 234.0 -0.1998 0.6999 0.0334
0.65 246.0 0.8831 0.5761 0.0712
0.65 258.0 -0.313 0.5055 0.0377
0.65 270.0 0.3914 0.7553 0.0415
0.65 282.0 -0.1794 0.631 0.0327
0.65 306.0 0.2372 0.652 0.0346
0.75 54.0 0.3083 0.6479 0.0375
0.75 66.0 0.1625 0.5426 0.0323
0.75 78.0 0.0198 0.5498 0.03
0.75 90.0 -0.4201 0.3785 0.0429
0.75 102.0 -0.377 0.4318 0.0407
0.75 114.0 -0.4542 0.4115 0.0447
0.75 126.0 -0.6119 0.4893 0.0539
0.75 138.0 -0.598 0.7708 0.053
0.75 210.0 -0.0315 0.7567 0.0301
0.75 222.0 0.4419 0.6145 0.0441
0.75 234.0 0.8112 0.4753 0.0664
0.75 246.0 -0.1054 0.438 0.031
0.75 258.0 0.0448 0.468 0.0302
0.75 270.0 -0.3534 0.4776 0.0396
0.75 282.0 0.7168 0.6345 0.0604
0.85 54.0 0.463 0.5352 0.0452
0.85 66.0 -0.3327 0.4279 0.0386
0.85 78.0 -1.0868 0.6013 0.0849
0.85 90.0 0.5463 0.5228 0.0499
0.85 102.0 -0.8451 0.3481 0.0687
0.85 114.0 -0.4399 0.4635 0.044
0.85 126.0 0.1932 0.5589 0.0332
0.85 138.0 -0.461 0.681 0.0451
0.85 186.0 -0.4521 0.76 0.0446
0.85 198.0 0.0234 0.6491 0.03
0.85 210.0 0.7393 0.5771 0.0618
0.85 222.0 1.0114 0.5703 0.0798
0.85 234.0 0.6857 0.5217 0.0584
0.85 246.0 -0.2847 0.397 0.0365
0.85 258.0 -0.1546 0.3925 0.0321
0.85 270.0 0.0976 0.389 0.0308
0.85 282.0 -0.0566 0.415 0.0303
0.85 294.0 0.393 0.4824 0.0415
0.85 306.0 -0.1023 0.5079 0.0309
0.95 54.0 -0.9371 0.4799 0.0748
0.95 66.0 0.0393 0.7021 0.0301
0.95 102.0 0.956 0.8722 0.076
0.95 114.0 -0.9825 0.5966 0.0778
0.95 126.0 -0.4883 0.6902 0.0466
0.95 162.0 0.2446 0.8182 0.0349
0.95 186.0 0.414 0.6636 0.0426
0.95 198.0 -0.6873 0.6035 0.0585
0.95 210.0 0.7397 0.7013 0.0618
0.95 222.0 0.3418 0.6149 0.039
0.95 234.0 1.0056 0.624 0.0794
0.95 246.0 0.9949 0.5363 0.0787
0.95 258.0 0.0187 0.4405 0.03
0.95 270.0 0.6051 0.4496 0.0534
0.95 282.0 -0.3965 0.3695 0.0417
0.95 294.0 -0.2498 0.3203 0.0351
0.95 306.0 0.0193 0.3876 0.03
0.95 318.0 0.2997 0.4311 0.0371
0.95 330.0 0.2446 0.6275 0.0349
