Measurement E151M1076

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: AUL
εL: 0.2105
Q2: 0.205 GeV2
W: 1565.0 GeV
Ebeam: 2.999 GeV
ε: 0.9175

Slice: cos(θπ+) =

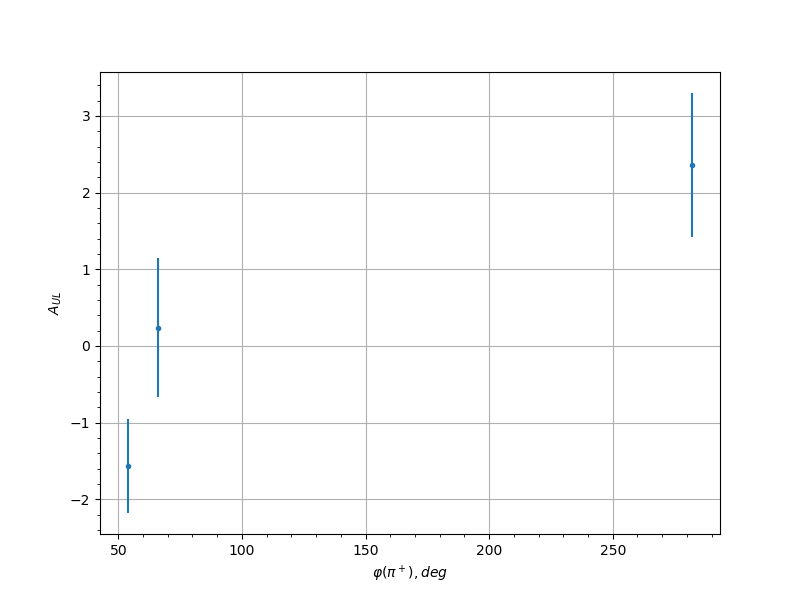

Measurement data
cos(θπ+) φ(π+), [deg] AUL uncertainty syst. uncert.
0.15 54.0 -1.5681 0.6119 0.1185
0.15 66.0 0.2366 0.9093 0.0346
0.15 282.0 2.3584 0.9402 0.175
0.25 66.0 -0.5772 0.651 0.0518
0.25 282.0 -0.3208 0.662 0.0381
0.25 294.0 -0.0481 0.7768 0.0302
0.35 66.0 0.2145 0.6998 0.0338
0.35 270.0 0.4922 0.7353 0.0468
0.35 282.0 -0.0883 0.6454 0.0307
0.45 54.0 -0.3697 0.7925 0.0404
0.45 66.0 1.1011 0.9235 0.0859
0.45 90.0 0.526 0.9115 0.0488
0.45 102.0 -0.0423 0.7647 0.0302
0.45 114.0 -0.9082 0.7756 0.0728
0.45 258.0 1.5616 1.0314 0.118
0.45 270.0 0.9628 0.7408 0.0765
0.45 282.0 0.0641 0.5467 0.0304
0.45 294.0 0.2336 0.7606 0.0345
0.55 54.0 -0.6647 0.6837 0.0571
0.55 90.0 -0.4798 0.63 0.0462
0.55 102.0 -0.3634 0.5084 0.0401
0.55 114.0 -0.8782 0.4636 0.0709
0.55 126.0 0.5312 0.7488 0.0491
0.55 138.0 -1.224 0.6596 0.0944
0.55 234.0 -0.1204 0.8063 0.0313
0.55 258.0 -0.0631 0.7752 0.0304
0.55 270.0 0.7584 0.794 0.063
0.55 282.0 0.3754 0.6346 0.0407
0.55 306.0 0.7816 0.7308 0.0645
0.65 90.0 -1.0269 0.4607 0.0808
0.65 102.0 -0.047 0.4793 0.0302
0.65 114.0 -1.4837 0.4483 0.1125
0.65 126.0 -0.3688 0.6514 0.0403
0.65 138.0 1.0157 0.9093 0.0801
0.65 198.0 0.1655 0.8664 0.0323
0.65 210.0 -0.5953 0.7819 0.0528
0.65 222.0 0.0841 0.6142 0.0306
0.65 234.0 0.334 0.5732 0.0387
0.65 246.0 -0.3166 0.6111 0.0379
0.65 258.0 1.1199 0.9028 0.0872
0.65 294.0 -0.7682 0.5272 0.0637
0.65 306.0 -0.1646 0.4982 0.0323
0.75 66.0 -0.1758 0.6863 0.0326
0.75 78.0 -0.4879 0.4822 0.0466
0.75 90.0 -0.1532 0.5689 0.032
0.75 102.0 -0.0254 0.4327 0.0301
0.75 114.0 -0.564 0.4685 0.051
0.75 126.0 -0.6513 0.4733 0.0563
0.75 138.0 -0.9708 0.6338 0.077
0.75 186.0 2.0549 0.8181 0.1532
0.75 198.0 0.842 0.7194 0.0685
0.75 210.0 0.877 0.7402 0.0708
0.75 222.0 1.0038 0.5756 0.0793
0.75 234.0 0.9067 0.4913 0.0727
0.75 246.0 -0.1751 0.5349 0.0326
0.75 258.0 0.7185 0.6075 0.0605
0.75 270.0 0.3422 0.8783 0.0391
0.75 282.0 -0.1121 0.6814 0.0311
0.75 294.0 0.2843 0.6026 0.0365
0.75 306.0 1.0998 0.8496 0.0858
0.85 66.0 -0.5529 0.4291 0.0503
0.85 78.0 0.2845 0.4788 0.0365
0.85 90.0 -0.6082 0.4987 0.0536
0.85 102.0 -0.9993 0.6035 0.079
0.85 114.0 -0.8306 0.4849 0.0677
0.85 126.0 -1.1994 0.4388 0.0927
0.85 138.0 -1.7209 0.4493 0.1293
0.85 174.0 1.831 1.0378 0.1371
0.85 186.0 -0.1663 0.7682 0.0324
0.85 198.0 0.6782 0.6406 0.0579
0.85 210.0 0.6833 0.5557 0.0583
0.85 222.0 0.0497 0.4855 0.0302
0.85 234.0 0.0404 0.4293 0.0301
0.85 246.0 0.003 0.3622 0.03
0.85 258.0 0.0679 0.4594 0.0304
0.85 270.0 0.2787 0.5324 0.0363
0.85 282.0 -0.0398 0.6989 0.0301
0.85 294.0 0.0909 0.7413 0.0307
0.95 66.0 -0.3909 0.6559 0.0414
0.95 78.0 -0.2654 0.5975 0.0357
0.95 90.0 -0.286 0.4964 0.0366
0.95 102.0 0.5595 0.7891 0.0507
0.95 162.0 0.4865 0.8719 0.0465
0.95 174.0 0.8292 0.8508 0.0676
0.95 186.0 -0.8026 0.4956 0.0659
0.95 198.0 -0.1591 0.5879 0.0322
0.95 210.0 -1.0853 0.4891 0.0848
0.95 222.0 0.4375 0.5085 0.0438
0.95 234.0 -0.0914 0.4203 0.0307
0.95 246.0 0.0051 0.4646 0.03
0.95 258.0 0.1961 0.4462 0.0332
0.95 270.0 -0.5181 0.3561 0.0483
0.95 282.0 0.6216 0.4545 0.0544
0.95 294.0 0.6657 0.4924 0.0572
