Measurement E151M1112

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: AUL
εL: 0.1311
Q2: 0.1715 GeV2
W: 1655.0 GeV
Ebeam: 2.999 GeV
ε: 0.8948

Slice: cos(θπ+) =

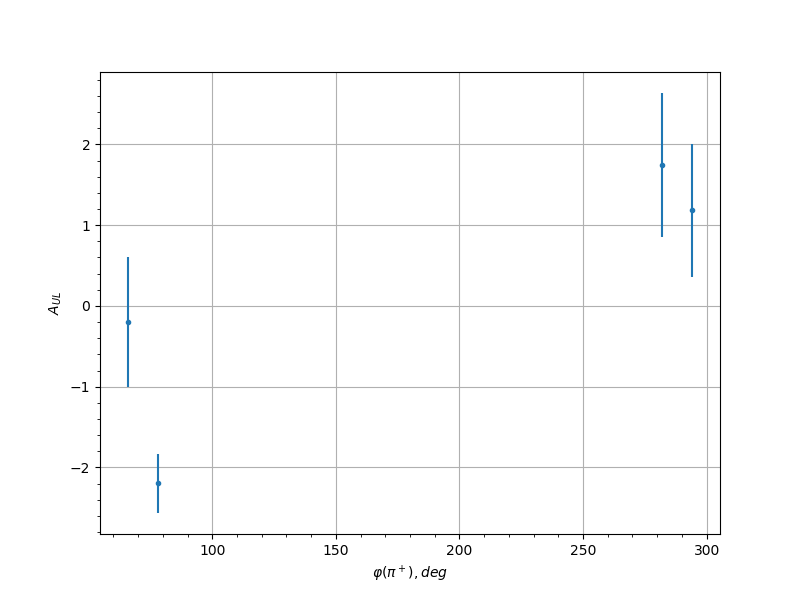

Measurement data
cos(θπ+) φ(π+), [deg] AUL uncertainty syst. uncert.
0.25 66.0 -0.194 0.8047 0.0332
0.25 78.0 -2.1982 0.3658 0.1634
0.25 282.0 1.7481 0.8887 0.1312
0.25 294.0 1.1843 0.8239 0.0916
0.35 66.0 -0.4098 0.6391 0.0424
0.35 78.0 -1.0784 0.5995 0.0843
0.35 114.0 -1.1975 0.6856 0.0925
0.35 270.0 0.1232 0.7405 0.0313
0.35 282.0 -0.4538 0.5802 0.0447
0.35 294.0 0.4004 0.802 0.0419
0.45 66.0 0.9237 0.8124 0.0739
0.45 78.0 -0.8474 0.6772 0.0688
0.45 102.0 0.2022 0.719 0.0334
0.45 114.0 -0.9789 0.5331 0.0776
0.45 126.0 -0.4105 0.6526 0.0424
0.45 138.0 -0.3953 0.7813 0.0417
0.45 234.0 1.1706 0.9531 0.0907
0.45 258.0 -0.3614 0.6503 0.04
0.45 270.0 0.8748 0.5834 0.0706
0.45 282.0 -0.1023 0.4904 0.0309
0.45 294.0 0.3441 0.7098 0.0391
0.55 54.0 -1.3626 0.5061 0.104
0.55 90.0 0.0939 0.705 0.0308
0.55 102.0 -0.4933 0.5114 0.0469
0.55 114.0 -1.1088 0.519 0.0864
0.55 126.0 0.4407 0.6317 0.044
0.55 138.0 -0.5118 0.6624 0.0479
0.55 150.0 -1.7221 0.5706 0.1294
0.55 198.0 -1.3571 0.6209 0.1036
0.55 210.0 1.0403 0.7797 0.0817
0.55 222.0 0.9434 0.7305 0.0752
0.55 234.0 0.5648 0.9222 0.051
0.55 270.0 1.5321 0.6647 0.1159
0.55 282.0 1.5692 0.8224 0.1185
0.55 294.0 0.1972 0.7141 0.0333
0.55 306.0 -0.0303 0.7606 0.0301
0.65 54.0 0.7032 0.7559 0.0595
0.65 78.0 0.3778 0.8369 0.0408
0.65 90.0 0.7719 0.7445 0.0639
0.65 102.0 0.3799 0.5413 0.0409
0.65 114.0 -0.1198 0.4711 0.0313
0.65 126.0 -0.8838 0.4468 0.0712
0.65 138.0 0.4284 0.8363 0.0434
0.65 150.0 0.0795 0.8487 0.0306
0.65 198.0 -0.1889 0.6452 0.033
0.65 210.0 1.192 0.7107 0.0921
0.65 222.0 0.6212 0.5839 0.0544
0.65 234.0 2.2899 0.7247 0.17
0.65 246.0 0.355 0.8562 0.0397
0.65 258.0 1.6283 0.8356 0.1227
0.65 282.0 0.0515 0.6993 0.0302
0.65 294.0 -0.1721 0.4672 0.0325
0.65 306.0 0.5605 0.7338 0.0508
0.75 78.0 -0.0439 0.5794 0.0302
0.75 90.0 0.8336 0.6367 0.0679
0.75 102.0 0.7819 0.6492 0.0645
0.75 114.0 -0.5422 0.4568 0.0497
0.75 126.0 0.4654 0.5241 0.0454
0.75 138.0 -0.8675 0.6375 0.0701
0.75 150.0 -0.9423 0.639 0.0751
0.75 186.0 0.6167 0.6963 0.0541
0.75 198.0 0.5511 0.6195 0.0502
0.75 210.0 0.2945 0.5556 0.0369
0.75 222.0 0.8066 0.5355 0.0661
0.75 234.0 0.3979 0.5654 0.0418
0.75 246.0 0.5067 0.5718 0.0477
0.75 258.0 0.3295 0.7982 0.0385
0.75 270.0 -0.1323 0.7782 0.0315
0.75 282.0 0.4107 0.5466 0.0424
0.75 294.0 -0.2131 0.487 0.0338
0.75 306.0 0.4443 0.738 0.0442
0.85 66.0 1.1881 0.8184 0.0919
0.85 78.0 -0.7126 0.4001 0.0601
0.85 90.0 -0.6658 0.3991 0.0572
0.85 102.0 -0.8138 0.4548 0.0666
0.85 114.0 -0.6789 0.5936 0.058
0.85 126.0 -1.1456 0.4972 0.0889
0.85 174.0 -1.1353 0.5307 0.0882
0.85 186.0 0.1012 0.6748 0.0309
0.85 198.0 0.4211 0.6103 0.043
0.85 210.0 0.5189 0.5576 0.0484
0.85 222.0 0.2963 0.4419 0.037
0.85 234.0 0.7703 0.4578 0.0638
0.85 246.0 1.2993 0.5443 0.0996
0.85 258.0 0.604 0.6161 0.0534
0.85 270.0 1.5395 0.7564 0.1165
0.85 294.0 -0.8989 0.6391 0.0722
0.95 78.0 0.3507 0.5745 0.0395
0.95 90.0 -0.0978 0.5524 0.0308
0.95 102.0 -0.7458 0.5038 0.0622
0.95 114.0 -0.1349 0.7503 0.0316
0.95 174.0 0.7381 0.7449 0.0617
0.95 186.0 -0.5947 0.4964 0.0528
0.95 198.0 0.0008 0.6046 0.03
0.95 210.0 -0.2275 0.4914 0.0343
0.95 222.0 -0.0767 0.5313 0.0305
0.95 234.0 0.5833 0.4334 0.0521
0.95 246.0 1.3248 0.5014 0.1014
0.95 258.0 0.5425 0.4569 0.0497
0.95 270.0 -0.6711 0.4652 0.0575
