Measurement E151M1136

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: AUL
εL: 0.0674
Q2: 0.101 GeV2
W: 1715.0 GeV
Ebeam: 2.999 GeV
ε: 0.8854

Slice: cos(θπ+) =

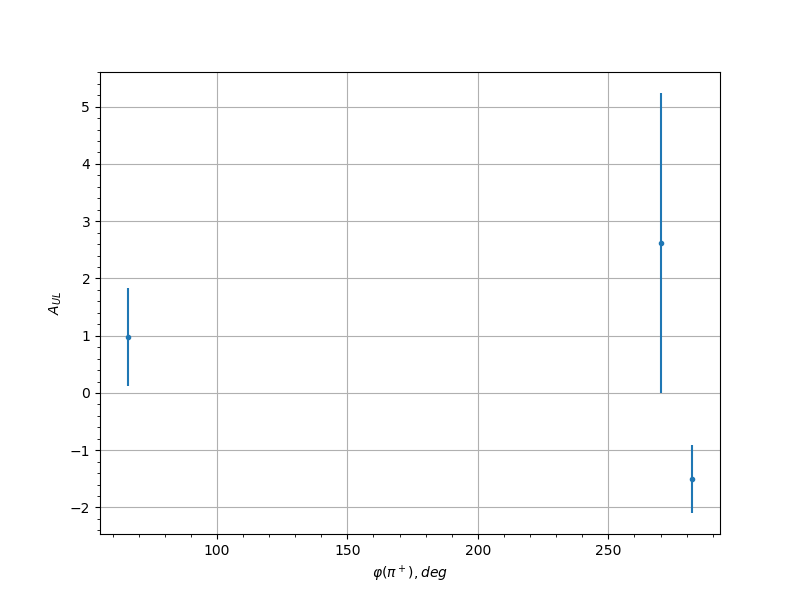

Measurement data
cos(θπ+) φ(π+), [deg] AUL uncertainty syst. uncert.
0.25 66.0 0.9764 0.8522 0.0774
0.25 270.0 2.6193 2.6193 0.1938
0.25 282.0 -1.5043 0.592 0.114
0.35 66.0 0.3489 0.895 0.0394
0.35 78.0 1.1735 0.9154 0.0909
0.35 126.0 -1.9427 0.5656 0.1451
0.35 258.0 -0.0268 0.8163 0.0301
0.35 270.0 0.2327 0.6259 0.0345
0.35 282.0 -0.6415 0.5783 0.0557
0.45 66.0 0.2126 0.8276 0.0338
0.45 90.0 -0.863 0.7542 0.0698
0.45 102.0 -0.6144 0.7857 0.054
0.45 114.0 -0.3066 0.6616 0.0374
0.45 126.0 -0.8947 0.6265 0.0719
0.45 138.0 0.5671 0.9532 0.0512
0.45 198.0 1.517 0.9957 0.1149
0.45 210.0 0.3243 0.828 0.0382
0.45 222.0 0.1276 0.919 0.0314
0.45 258.0 2.5662 2.5662 0.1899
0.45 270.0 0.5787 0.5893 0.0519
0.45 282.0 -0.6592 0.5796 0.0568
0.55 66.0 -0.1757 0.6866 0.0326
0.55 78.0 2.0079 0.9645 0.1498
0.55 90.0 -0.4368 0.715 0.0438
0.55 102.0 -0.3879 0.5918 0.0413
0.55 114.0 0.4662 0.6536 0.0454
0.55 126.0 -0.4912 0.5669 0.0468
0.55 138.0 -0.9894 0.5908 0.0783
0.55 186.0 0.3694 1.0177 0.0404
0.55 198.0 -0.7568 0.6568 0.0629
0.55 210.0 -0.3153 0.8749 0.0378
0.55 222.0 1.3406 0.8386 0.1025
0.55 234.0 1.5966 1.0415 0.1205
0.55 246.0 -0.3366 0.8288 0.0388
0.55 258.0 1.0868 0.7282 0.0849
0.55 270.0 1.1719 0.6179 0.0908
0.65 54.0 0.2266 0.5942 0.0343
0.65 66.0 -0.5147 0.7851 0.0481
0.65 102.0 -1.4134 0.4754 0.1076
0.65 114.0 0.7087 0.6879 0.0599
0.65 126.0 -1.1164 0.4627 0.0869
0.65 138.0 0.1042 0.7229 0.031
0.65 150.0 -2.2209 0.4947 0.1651
0.65 174.0 -0.3274 0.8382 0.0384
0.65 186.0 0.8165 0.913 0.0668
0.65 198.0 0.9123 0.7154 0.0731
0.65 210.0 0.1841 0.6581 0.0329
0.65 222.0 0.8475 0.6989 0.0688
0.65 234.0 1.8433 0.8978 0.138
0.65 246.0 -0.3317 0.6706 0.0386
0.65 258.0 0.2865 0.896 0.0366
0.65 270.0 0.6255 0.9125 0.0547
0.65 282.0 -0.6556 0.4718 0.0565
0.65 294.0 0.5295 0.748 0.049
0.75 54.0 0.3964 0.9306 0.0417
0.75 78.0 -1.3291 0.5721 0.1017
0.75 90.0 -0.358 0.5939 0.0398
0.75 102.0 -0.0976 0.5608 0.0308
0.75 114.0 -0.5499 0.7599 0.0502
0.75 126.0 -0.8415 0.5423 0.0684
0.75 138.0 -0.491 0.7113 0.0468
0.75 150.0 0.3187 0.8836 0.038
0.75 162.0 0.005 0.7456 0.03
0.75 174.0 0.1325 0.6886 0.0315
0.75 186.0 -0.546 0.5659 0.0499
0.75 198.0 0.5949 0.6308 0.0528
0.75 210.0 0.4171 0.5675 0.0428
0.75 222.0 0.1929 0.5642 0.0331
0.75 234.0 0.6889 0.6467 0.0586
0.75 246.0 0.9748 0.7511 0.0773
0.75 258.0 0.9512 0.6232 0.0757
0.75 270.0 -0.4301 0.4513 0.0435
0.75 282.0 -0.0939 0.4792 0.0308
0.75 294.0 0.3025 0.543 0.0373
0.85 78.0 -0.1717 0.6465 0.0325
0.85 90.0 -0.2837 0.4527 0.0365
0.85 102.0 -0.6594 0.3675 0.0568
0.85 114.0 0.2472 0.5261 0.035
0.85 126.0 1.0303 0.7661 0.0811
0.85 174.0 -1.3118 0.4873 0.1005
0.85 186.0 -0.405 0.4854 0.0421
0.85 198.0 0.4859 0.5203 0.0465
0.85 210.0 0.4883 0.448 0.0466
0.85 222.0 -0.2184 0.4673 0.034
0.85 234.0 0.1837 0.5514 0.0329
0.85 246.0 0.4291 0.6697 0.0434
0.85 258.0 0.2153 0.6928 0.0339
0.85 270.0 0.3066 0.6147 0.0374
0.85 282.0 -0.0676 0.6739 0.0304
0.85 294.0 1.1283 0.9095 0.0878
0.95 114.0 -1.2075 0.5556 0.0932
0.95 174.0 -0.6175 0.6458 0.0542
0.95 186.0 1.4939 0.8122 0.1132
0.95 198.0 0.1436 0.7117 0.0318
0.95 210.0 -0.1901 0.5663 0.0331
0.95 222.0 0.1871 0.5674 0.033
0.95 234.0 0.4865 0.6434 0.0465
0.95 246.0 0.5131 0.8027 0.048
