Measurement E151M1246

Experiment:	EG4
Year:	2016	Experiment comment: Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson:	Xiaochao Zheng
Reaction:	ep → π⁺n
Polarization:	beam (longitudinal), target (longitudinal)
Quantity:	A_LL
ε_L:	0.1064
Q²:	0.0143 GeV²
W:	1235.0 GeV
E_beam:	1.0539 GeV
ε:	0.9145

Slice: cos(θ_π⁺) =

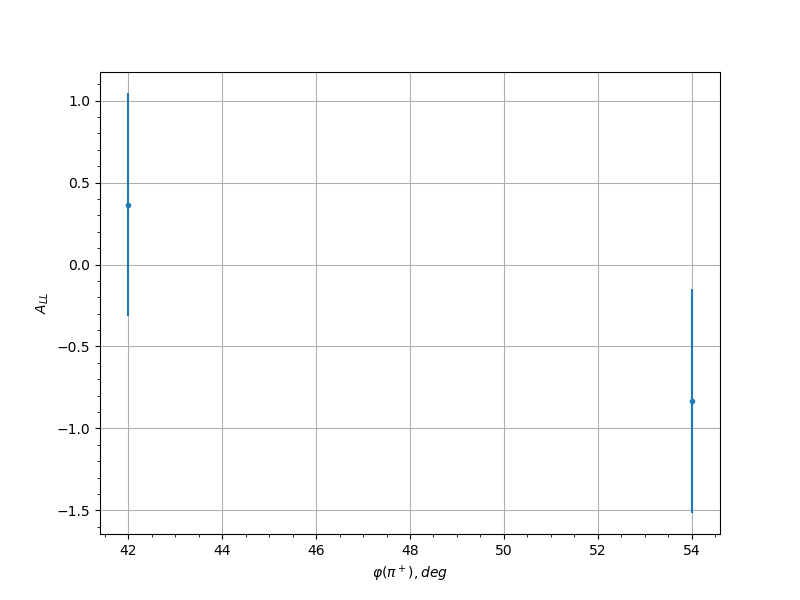

Measurement data
cos(θ_π⁺)	φ(π⁺), [deg]	A_LL	uncertainty	syst. uncert.
0.25	42.0	0.3652	0.6812	0.051
0.25	54.0	-0.8335	0.6827	0.0987
0.35	42.0	-0.1594	0.4926	0.035
0.35	54.0	-1.2614	0.4844	0.1454
0.35	66.0	-0.7327	0.6772	0.0879
0.45	42.0	-0.8876	0.4958	0.1045
0.45	54.0	-0.2528	0.4662	0.0414
0.45	258.0	-1.0154	0.5023	0.1184
0.45	270.0	0.2273	0.482	0.0395
0.55	54.0	0.2755	0.5873	0.0432
0.55	246.0	0.134	0.3862	0.0336
0.55	258.0	-0.2325	0.3591	0.0398
0.55	270.0	0.2022	0.3455	0.0377
0.55	282.0	-0.0421	0.4858	0.0304
0.65	162.0	0.1561	0.5646	0.0348
0.65	174.0	0.7317	0.5947	0.0878
0.65	186.0	-0.1603	0.6016	0.035
0.65	198.0	-0.5249	0.5815	0.0664
0.65	210.0	-0.0565	0.6737	0.0307
0.65	222.0	0.0447	0.5328	0.0304
0.65	234.0	0.0058	0.4349	0.03
0.65	246.0	-0.7247	0.3107	0.0871
0.65	258.0	-0.416	0.2749	0.0557
0.65	270.0	-0.1407	0.3236	0.0339
0.65	282.0	-0.1742	0.4687	0.0359
0.75	138.0	-0.6035	0.6035	0.0744
0.75	150.0	0.3311	0.5577	0.0479
0.75	162.0	-0.314	0.4757	0.0464
0.75	174.0	-0.0226	0.3878	0.0301
0.75	186.0	0.0938	0.4422	0.0318
0.75	198.0	-0.0508	0.524	0.0305
0.75	210.0	-0.124	0.5067	0.0331
0.75	222.0	-0.1879	0.4937	0.0367
0.75	234.0	-0.0082	0.3402	0.03
0.75	246.0	0.06	0.3247	0.0308
0.75	258.0	0.435	0.3164	0.0575
0.75	270.0	-0.6007	0.3614	0.0741
0.85	150.0	0.7137	0.4732	0.0859
0.85	162.0	-0.8933	0.4963	0.1051
0.85	174.0	0.1605	0.422	0.035
0.85	186.0	0.1889	0.4036	0.0368
0.85	210.0	1.3121	0.4792	0.151
0.85	222.0	-0.189	0.5657	0.0368
0.85	234.0	0.3453	0.5127	0.0492
0.85	246.0	0.5737	0.3854	0.0713
0.85	258.0	0.2602	0.5242	0.042
