Measurement E151M1331

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALL
εL: 0.043
Q2: 0.0143 GeV2
W: 1355.0 GeV
Ebeam: 1.0539 GeV
ε: 0.7998

Slice: cos(θπ+) =

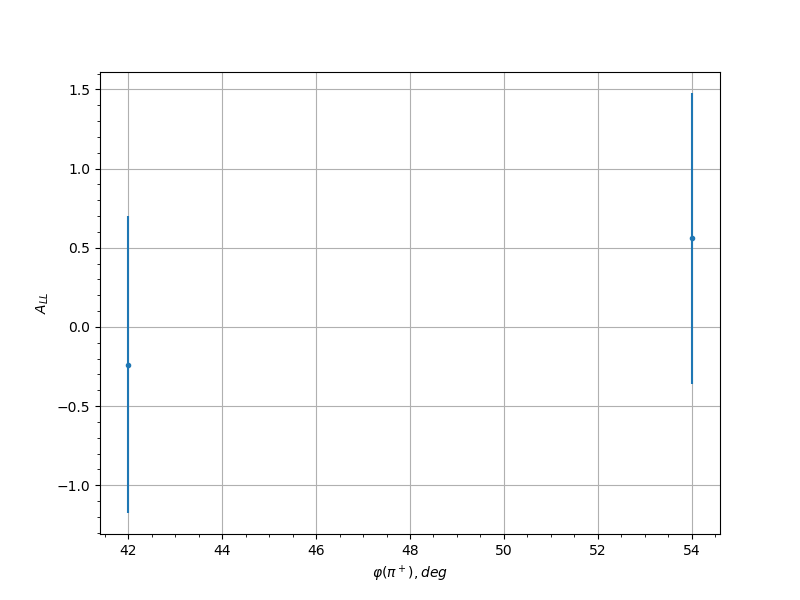

Measurement data
cos(θπ+) φ(π+), [deg] ALL uncertainty syst. uncert.
0.25 42.0 -0.2386 0.937 0.0403
0.25 54.0 0.5596 0.9178 0.0699
0.35 30.0 1.6898 0.769 0.1929
0.35 42.0 0.2772 0.6052 0.0433
0.35 54.0 -0.5434 0.6469 0.0682
0.35 66.0 -1.2348 0.8598 0.1425
0.45 18.0 1.2086 0.9266 0.1396
0.45 30.0 -0.1975 0.8615 0.0374
0.45 42.0 -0.6427 0.5442 0.0785
0.45 54.0 -0.6497 0.6497 0.0792
0.45 66.0 0.9297 0.9988 0.1091
0.45 234.0 0.9102 0.788 0.107
0.55 18.0 -0.5151 0.8139 0.0654
0.55 30.0 -0.3532 0.5959 0.0499
0.55 42.0 1.187 0.4788 0.1372
0.55 54.0 -0.1431 0.5575 0.0341
0.55 66.0 -0.3055 0.9697 0.0457
0.55 138.0 -1.4713 0.7681 0.1686
0.55 150.0 0.2088 0.8311 0.0381
0.55 162.0 -0.7817 1.0011 0.0931
0.55 222.0 -0.1308 0.7323 0.0334
0.55 234.0 -0.0152 0.5893 0.03
0.55 246.0 0.3486 0.545 0.0495
0.55 258.0 0.1296 0.6836 0.0334
0.65 30.0 0.0715 0.949 0.0311
0.65 42.0 0.39 0.7889 0.0532
0.65 54.0 0.2133 0.7761 0.0385
0.65 138.0 0.6078 0.7761 0.0748
0.65 150.0 -0.2815 0.7297 0.0437
0.65 162.0 0.6192 0.8037 0.076
0.65 174.0 -0.7608 0.9262 0.0909
0.65 186.0 -1.4874 0.8105 0.1704
0.65 210.0 -0.4752 0.7136 0.0614
0.65 222.0 0.4216 0.7253 0.0562
0.65 234.0 0.9516 0.4968 0.1114
0.65 246.0 0.0326 0.5155 0.0302
0.65 258.0 -0.1705 0.6743 0.0356
0.75 138.0 1.5317 0.674 0.1753
0.75 150.0 1.2142 0.699 0.1402
0.75 162.0 0.2675 0.717 0.0425
0.75 174.0 -0.2047 0.8923 0.0379
0.75 210.0 -0.0226 0.7888 0.0301
0.75 222.0 0.2214 0.6698 0.039
0.75 234.0 0.4408 0.4869 0.0581
0.75 246.0 -0.0862 0.4708 0.0315
0.75 258.0 0.2286 0.5679 0.0396
0.85 162.0 1.7943 0.7711 0.2046
0.85 210.0 0.3311 0.8219 0.0479
0.85 222.0 0.3484 0.6445 0.0494
0.85 234.0 -0.319 0.5229 0.0468
0.85 246.0 -0.6839 0.4684 0.0828
0.85 258.0 -0.9866 0.4891 0.1153
0.85 270.0 0.8354 0.7679 0.0989
0.95 234.0 -0.3641 0.6638 0.0509
