Measurement E151M1478

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALL
εL: 0.1172
Q2: 0.0245 GeV2
W: 1295.0 GeV
Ebeam: 1.3383 GeV
ε: 0.9174

Slice: cos(θπ+) =

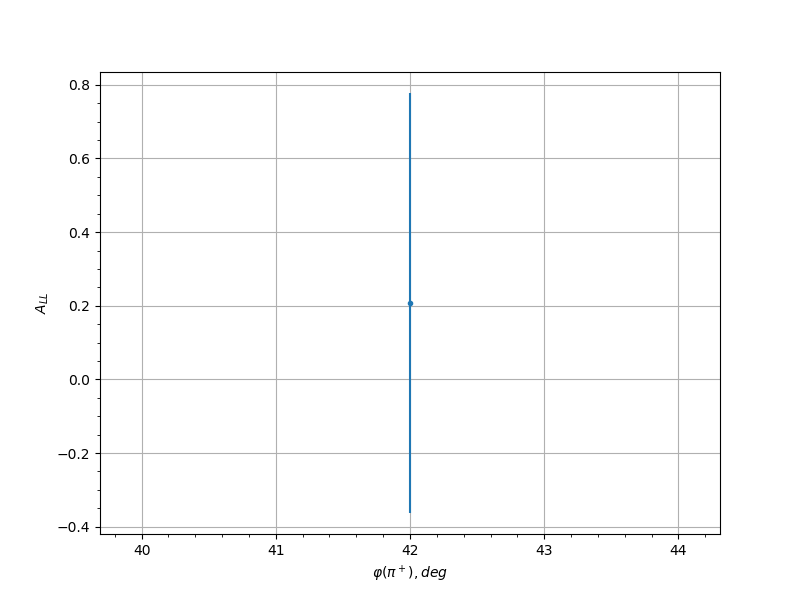

Measurement data
cos(θπ+) φ(π+), [deg] ALL uncertainty syst. uncert.
0.15 42.0 0.2075 0.5702 0.0495
0.25 30.0 -0.0742 0.7201 0.0303
0.25 42.0 -0.721 0.4264 0.0581
0.25 54.0 -0.6484 0.4456 0.064
0.35 30.0 2.2085 2.2085 0.1319
0.35 42.0 0.2856 0.4585 0.0448
0.35 54.0 0.0687 0.4821 0.0594
0.45 30.0 -0.6592 0.4922 0.0492
0.55 42.0 0.3723 0.8813 0.037
0.55 234.0 0.2967 0.7041 0.0346
0.55 246.0 -0.0375 0.6761 0.0301
0.55 258.0 -0.1727 0.6546 0.0316
0.55 270.0 1.2405 0.4595 0.0781
0.65 126.0 1.2785 0.6375 0.0802
0.65 138.0 -0.3399 0.735 0.0359
0.65 150.0 0.2251 0.8282 0.0327
0.65 162.0 2.0762 2.0762 0.1244
0.65 210.0 1.0759 0.8605 0.0694
0.65 222.0 0.3679 0.7141 0.0368
0.65 234.0 -0.2279 0.5162 0.0328
0.65 246.0 0.1376 0.4534 0.031
0.65 258.0 -1.0492 0.4817 0.068
0.65 270.0 -0.1205 0.5865 0.0308
0.75 114.0 -0.389 0.9057 0.0376
0.75 126.0 0.2036 0.6919 0.0323
0.75 138.0 0.1122 0.6396 0.0307
0.75 150.0 0.0606 0.694 0.0302
0.75 162.0 0.5736 0.6422 0.0449
0.75 174.0 0.4465 0.7203 0.0397
0.75 186.0 -1.3682 0.5945 0.085
0.75 210.0 0.8443 0.895 0.0575
0.75 222.0 -0.5783 0.5982 0.0451
0.75 234.0 1.0803 0.4112 0.0696
0.75 246.0 0.0057 0.428 0.03
0.75 258.0 -0.5469 0.4487 0.0437
0.75 270.0 1.401 0.4604 0.0868
0.85 114.0 0.3436 0.9272 0.036
0.85 126.0 0.552 0.8912 0.0439
0.85 138.0 0.658 0.7474 0.0486
0.85 150.0 -0.4985 0.6412 0.0417
0.85 162.0 -0.4755 0.7906 0.0408
0.85 174.0 -1.3584 0.5466 0.0845
0.85 186.0 -0.0713 0.8353 0.0303
0.85 198.0 1.4937 0.7649 0.0919
0.85 210.0 1.8638 1.8638 0.1125
0.85 222.0 1.0831 0.5528 0.0698
0.85 234.0 -0.6596 0.4457 0.0487
0.85 246.0 -0.4522 0.4524 0.0399
0.85 258.0 0.3776 0.4616 0.0372
0.85 270.0 -0.1493 0.543 0.0312
0.95 234.0 0.222 0.6784 0.0327
0.95 246.0 -0.4125 0.6711 0.0384
0.45 42.0 0.1566 0.6819 0.0314
0.55 234.0 -1.5215 0.4503 0.096
0.55 246.0 -0.2717 0.4791 0.0341
0.55 258.0 -0.6826 0.4381 0.0507
0.55 270.0 -0.3882 0.4913 0.038
0.65 126.0 0.5689 0.6819 0.0454
0.65 138.0 0.7557 0.624 0.0543
0.65 150.0 -0.6423 0.6939 0.0488
0.65 162.0 0.7309 0.6361 0.0531
0.65 222.0 0.3568 0.5086 0.0368
0.65 234.0 -0.5667 0.4205 0.0453
0.65 246.0 -0.0236 0.371 0.03
0.65 258.0 0.3343 0.329 0.0361
0.65 270.0 -0.1158 0.4532 0.0308
0.75 114.0 0.1854 0.7419 0.032
0.75 126.0 0.2898 0.4567 0.0347
0.75 138.0 -0.161 0.4495 0.0315
0.75 150.0 -0.3371 0.4411 0.0362
0.75 162.0 -0.2425 0.5166 0.0333
0.75 174.0 0.2657 0.6865 0.034
0.75 186.0 0.9387 0.7091 0.0638
0.75 198.0 0.6485 0.6738 0.0491
0.75 210.0 -0.1596 0.621 0.0315
0.75 222.0 0.0785 0.4461 0.0304
0.75 234.0 0.2042 0.3617 0.0324
0.75 246.0 0.356 0.3766 0.0368
0.75 258.0 0.4464 0.3371 0.0402
0.75 270.0 0.1944 0.4719 0.0322
0.75 282.0 -0.6884 0.6729 0.051
0.85 126.0 -0.0282 0.5541 0.03
0.85 138.0 0.6765 0.4686 0.0504
0.85 150.0 0.258 0.4706 0.0338
0.85 162.0 0.9893 0.4929 0.0665
0.85 174.0 0.3765 0.6074 0.0375
0.85 186.0 -1.352 0.5043 0.0864
0.85 198.0 -0.4151 0.7189 0.039
0.85 210.0 1.7982 0.6627 0.1119
0.85 222.0 0.614 0.5376 0.0475
0.85 234.0 0.0901 0.3779 0.0305
0.85 246.0 0.4102 0.3139 0.0388
0.85 258.0 0.2069 0.3457 0.0325
0.85 270.0 0.1388 0.4186 0.0311
0.95 114.0 0.1557 0.5908 0.0314
0.95 234.0 0.869 0.5562 0.0601
0.95 246.0 -0.0319 0.5698 0.0301
