Measurement E151M1497

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALL
εL: 0.0957
Q2: 0.0245 GeV2
W: 1325.0 GeV
Ebeam: 1.3383 GeV
ε: 0.8999

Slice: cos(θπ+) =

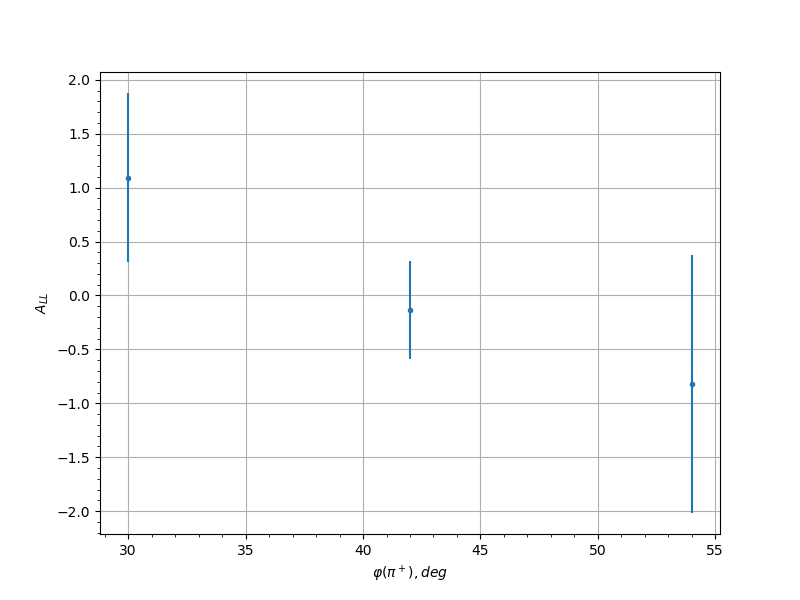

Measurement data
cos(θπ+) φ(π+), [deg] ALL uncertainty syst. uncert.
0.25 30.0 1.0928 0.785 0.072
0.25 42.0 -0.1356 0.4577 0.0423
0.35 30.0 -0.9015 0.6972 0.0618
0.35 42.0 -0.6002 0.6235 0.0468
0.35 54.0 1.103 0.82 0.0726
0.45 30.0 -2.1015 2.1015 0.1295
0.55 234.0 0.2818 0.6476 0.0344
0.55 246.0 0.3844 0.5075 0.0378
0.55 258.0 0.6529 0.6016 0.0493
0.55 270.0 -0.8386 0.6037 0.0585
0.65 126.0 0.392 0.5722 0.0381
0.65 138.0 0.1047 0.5745 0.0306
0.65 150.0 0.4961 0.6905 0.0422
0.65 162.0 0.6994 0.669 0.0515
0.65 210.0 0.5478 0.6825 0.0445
0.65 222.0 0.6368 0.5326 0.0485
0.65 234.0 0.4112 0.4406 0.0388
0.65 246.0 -0.2514 0.3647 0.0336
0.65 258.0 1.0113 0.4807 0.0676
0.65 270.0 -0.9359 0.6235 0.0636
0.75 114.0 -1.3162 0.5834 0.0844
0.75 126.0 0.1842 0.5412 0.032
0.75 138.0 -0.1581 0.4364 0.0315
0.75 150.0 0.0803 0.5278 0.0304
0.75 162.0 -0.4247 0.5238 0.0393
0.75 174.0 0.1044 0.7052 0.0306
0.75 210.0 0.2087 0.7042 0.0325
0.75 222.0 -0.3409 0.4845 0.0363
0.75 234.0 0.0854 0.4415 0.0304
0.75 246.0 -0.2248 0.3783 0.0329
0.75 258.0 0.736 0.3488 0.0533
0.75 270.0 0.4094 0.57 0.0388
0.85 126.0 -0.8501 0.619 0.0591
0.85 138.0 0.0729 0.5302 0.0303
0.85 150.0 0.589 0.6732 0.0463
0.85 162.0 0.9682 0.6325 0.0653
0.85 174.0 0.8783 0.6508 0.0606
0.85 198.0 0.5867 0.6416 0.0462
0.85 210.0 0.8833 0.6577 0.0608
0.85 222.0 0.6481 0.4656 0.0491
0.85 234.0 0.7112 0.4264 0.0521
0.85 246.0 0.3862 0.3814 0.0379
0.85 258.0 0.3564 0.4004 0.0368
0.85 270.0 -0.1245 0.5877 0.0309
0.95 114.0 1.6801 0.5028 0.1051
0.95 126.0 0.023 0.687 0.03
0.95 234.0 1.1865 0.5369 0.0772
0.95 246.0 1.0101 0.5344 0.0676
0.95 258.0 0.9427 0.5615 0.064
0.25 54.0 -0.8223 1.1952 0.0564
0.35 42.0 0.5162 0.7142 0.0424
0.35 54.0 -0.0627 0.9965 0.0302
0.45 30.0 0.0599 0.8805 0.0302
0.45 42.0 0.226 1.0171 0.0328
0.55 30.0 -1.1257 0.8277 0.072
0.55 234.0 -0.2027 0.7533 0.0322
0.55 246.0 -0.6466 0.6625 0.0481
0.55 258.0 -0.0064 0.7606 0.03
0.55 270.0 0.3356 0.9219 0.0358
0.65 114.0 1.2603 0.9375 0.0792
0.65 126.0 -0.8859 0.8061 0.0596
0.65 138.0 0.2439 0.7976 0.0332
0.65 150.0 0.7731 0.7744 0.054
0.65 162.0 0.923 0.8295 0.0615
0.65 210.0 0.4633 0.9369 0.0403
0.65 222.0 0.3357 0.7397 0.0358
0.65 234.0 0.6901 0.5256 0.0501
0.65 246.0 -0.2332 0.5089 0.0329
0.65 258.0 -0.1793 0.5695 0.0318
0.65 270.0 0.4322 0.8925 0.0391
0.75 126.0 0.1991 0.6946 0.0322
0.75 138.0 -0.1749 0.6448 0.0317
0.75 150.0 1.2778 0.6914 0.0801
0.75 162.0 1.273 0.6889 0.0799
0.75 174.0 -0.4708 0.9042 0.0406
0.75 210.0 -1.5337 0.6724 0.0941
0.75 222.0 -0.221 0.6147 0.0326
0.75 234.0 0.5682 0.5134 0.0446
0.75 246.0 0.3785 0.5163 0.0372
0.75 258.0 0.0314 0.5994 0.0301
0.75 270.0 1.0847 0.7638 0.0698
0.85 114.0 -0.1605 1.0336 0.0314
0.85 126.0 -0.5618 0.8153 0.0444
0.85 138.0 -0.5434 0.8206 0.0436
0.85 150.0 -0.3051 0.7673 0.0349
0.85 162.0 -2.2092 2.2092 0.1319
0.85 210.0 0.2785 0.9757 0.0341
0.85 222.0 1.2205 0.4761 0.0771
0.85 234.0 0.483 0.5291 0.0411
0.85 246.0 -0.2498 0.5016 0.0333
0.85 258.0 0.6334 0.4673 0.0475
0.85 270.0 -0.0004 0.612 0.03
0.95 126.0 -0.7709 0.684 0.0539
0.95 222.0 -0.4493 0.6386 0.0398
0.95 234.0 1.3496 0.4506 0.084
0.95 246.0 -0.6349 0.6029 0.0476
0.95 258.0 0.1638 0.6644 0.0315
