Measurement E151M1537

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALL
εL: 0.0769
Q2: 0.0291 GeV2
W: 1385.0 GeV
Ebeam: 1.3383 GeV
ε: 0.853

Slice: cos(θπ+) =

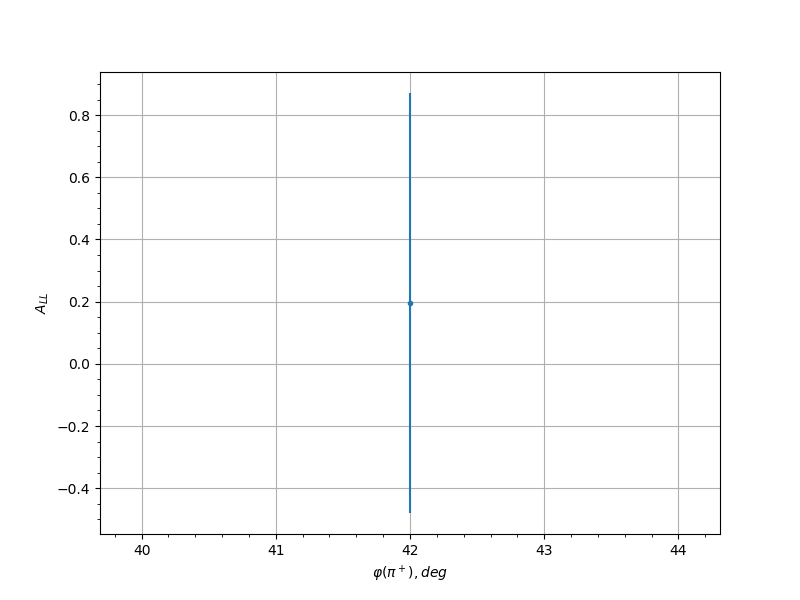

Measurement data
cos(θπ+) φ(π+), [deg] ALL uncertainty syst. uncert.
0.15 42.0 0.1957 0.6755 0.0585
0.25 30.0 -0.7583 0.6801 0.0576
0.25 42.0 0.0067 0.6723 0.0476
0.35 18.0 -0.1439 1.1456 0.0311
0.35 30.0 -0.7758 0.4426 0.0877
0.35 42.0 -0.148 0.5772 0.0342
0.45 18.0 0.673 0.7302 0.0503
0.45 30.0 -0.0396 0.6392 0.0301
0.45 42.0 1.1432 0.7006 0.0748
0.55 30.0 1.1151 0.7786 0.0733
0.55 42.0 -0.6634 0.6484 0.0498
0.55 138.0 0.7801 0.7706 0.0556
0.55 150.0 -0.7096 0.8621 0.052
0.55 222.0 -0.5735 0.7324 0.0456
0.55 234.0 0.0491 0.6629 0.0301
0.55 246.0 -0.6137 0.6513 0.0475
0.55 258.0 0.2162 0.8039 0.0327
0.65 126.0 -0.8041 0.5815 0.0568
0.65 138.0 -0.7549 0.56 0.0543
0.65 150.0 0.4532 0.7341 0.0405
0.65 162.0 -1.0966 0.9092 0.0722
0.65 174.0 2.5946 2.5946 0.1584
0.65 210.0 -1.6018 0.6347 0.1006
0.65 222.0 -0.2927 0.5751 0.0348
0.65 234.0 -0.7771 0.5167 0.0554
0.65 246.0 0.2353 0.5049 0.0331
0.65 258.0 -0.9612 0.6623 0.065
0.75 114.0 -0.2004 0.7595 0.0323
0.75 126.0 -0.2143 0.6664 0.0326
0.75 138.0 0.6834 0.5445 0.0508
0.75 150.0 0.4865 0.6269 0.0418
0.75 162.0 -0.3785 0.7148 0.0376
0.75 198.0 -0.146 0.8956 0.0312
0.75 210.0 -0.1898 0.8643 0.0321
0.75 222.0 0.0016 0.6217 0.03
0.75 234.0 -0.4275 0.4989 0.0395
0.75 246.0 -0.5606 0.4567 0.045
0.75 258.0 0.2489 0.511 0.0335
0.75 270.0 -1.2223 0.6526 0.0792
0.85 102.0 0.5098 0.8118 0.0428
0.85 114.0 0.767 0.8066 0.0549
0.85 126.0 0.8501 0.7299 0.0591
0.85 138.0 0.571 0.7269 0.0455
0.85 150.0 0.0545 0.8629 0.0302
0.85 162.0 -0.5269 0.7512 0.0436
0.85 222.0 0.2111 0.606 0.0326
0.85 234.0 0.5384 0.4668 0.0441
0.85 246.0 0.1646 0.5296 0.0316
0.85 258.0 0.2784 0.467 0.0343
0.85 270.0 -0.1923 0.6235 0.0321
0.95 126.0 -0.3083 0.5932 0.0352
0.95 222.0 0.3253 0.6803 0.0358
0.95 234.0 -0.6252 0.5816 0.048
0.95 246.0 0.6867 0.5956 0.0509
0.35 54.0 0.5857 1.1139 0.0454
0.45 18.0 -1.2533 1.0288 0.0788
0.45 30.0 0.9995 0.899 0.0654
0.45 42.0 -1.7945 0.889 0.1086
0.55 30.0 -0.0007 1.1495 0.03
0.55 42.0 -0.7523 0.8311 0.053
0.55 126.0 1.2815 0.9688 0.0803
0.55 138.0 -1.4259 0.7421 0.0882
0.55 222.0 -0.9543 0.7365 0.0631
0.55 234.0 0.4939 0.7126 0.0415
0.55 246.0 1.0153 0.6934 0.0662
0.55 258.0 0.0087 0.8411 0.03
0.65 126.0 0.2849 0.8554 0.0343
0.65 138.0 0.3789 0.8095 0.0372
0.65 150.0 0.0087 0.9408 0.03
0.65 162.0 -0.1308 1.0805 0.0309
0.65 174.0 0.5251 1.0793 0.0428
0.65 210.0 0.5869 0.9789 0.0454
0.65 222.0 -1.5627 0.5212 0.0957
0.65 234.0 -0.8715 0.6381 0.0589
0.65 246.0 -0.6011 0.6322 0.0461
0.65 258.0 1.2783 0.6263 0.0802
0.75 114.0 -0.9091 0.8992 0.0608
0.75 126.0 0.0052 0.8496 0.03
0.75 138.0 -1.385 0.6184 0.0859
0.75 150.0 -1.5186 0.6826 0.0933
0.75 162.0 0.204 1.0446 0.0323
0.75 210.0 -0.2439 1.0545 0.0332
0.75 222.0 0.2071 0.6865 0.0323
0.75 234.0 0.4358 0.5995 0.0393
0.75 246.0 -0.9138 0.5744 0.061
0.75 258.0 -0.5799 0.6287 0.0451
0.85 126.0 0.1619 1.001 0.0314
0.85 138.0 -0.0585 1.0314 0.0302
0.85 150.0 -0.7402 0.972 0.0525
0.85 210.0 1.3563 1.1092 0.0844
0.85 222.0 0.469 0.6235 0.0405
0.85 234.0 0.7165 0.6 0.0513
0.85 246.0 0.0342 0.5889 0.0301
0.85 258.0 0.4869 0.6913 0.0413
0.85 270.0 -0.8707 0.6716 0.0588
0.95 126.0 1.6841 0.7381 0.1024
0.95 222.0 -0.7484 0.8795 0.0529
0.95 234.0 0.4681 0.6735 0.0405
0.95 246.0 1.3332 0.4435 0.0831
0.95 258.0 -0.9171 0.7228 0.0612
