Measurement E151M1770

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALL
εL: 0.1382
Q2: 0.0496 GeV2
W: 1385.0 GeV
Ebeam: 1.9889 GeV
ε: 0.9354

Slice: cos(θπ+) =

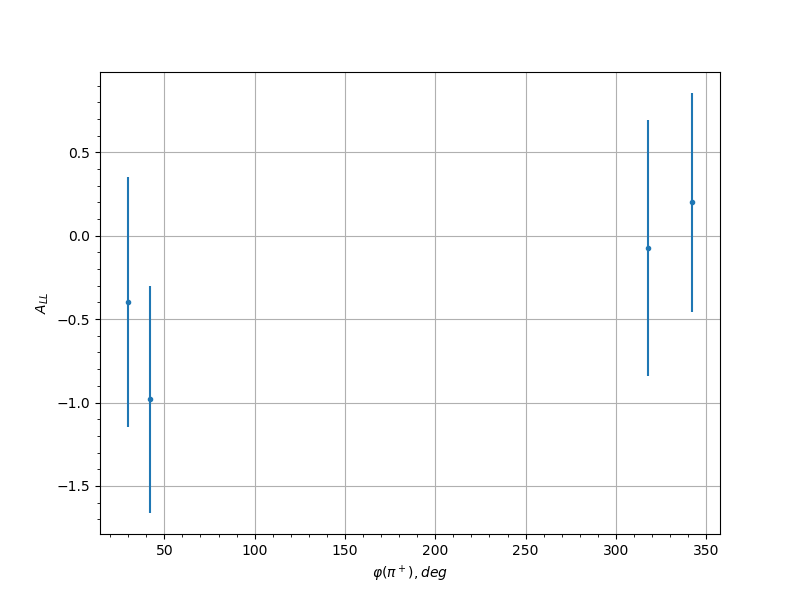

Measurement data
cos(θπ+) φ(π+), [deg] ALL uncertainty syst. uncert.
0.15 30.0 -0.3967 0.7475 0.0384
0.15 42.0 -0.9808 0.6816 0.0666
0.15 318.0 -0.0744 0.7681 0.0303
0.15 342.0 0.1991 0.6563 0.0323
0.25 54.0 0.5333 0.7885 0.0441
0.25 66.0 -0.7296 0.5701 0.0534
0.25 78.0 0.1875 0.6479 0.0321
0.25 282.0 1.4686 0.6213 0.0939
0.25 294.0 -0.8783 0.5452 0.0611
0.25 306.0 0.6058 0.5345 0.0474
0.25 342.0 0.5106 0.7199 0.0431
0.35 18.0 -1.362 0.7266 0.0878
0.35 30.0 1.4394 0.6332 0.0922
0.35 66.0 -0.1534 0.4654 0.0314
0.35 78.0 0.4602 0.4358 0.041
0.35 90.0 -0.2263 0.6449 0.033
0.35 270.0 0.688 0.7398 0.0514
0.35 282.0 -0.5984 0.4311 0.0471
0.35 294.0 -0.0184 0.3978 0.03
0.35 306.0 -0.2672 0.5358 0.0341
0.35 330.0 0.7761 0.6645 0.0558
0.45 66.0 -0.3085 0.4708 0.0353
0.45 78.0 -0.8118 0.3685 0.0576
0.45 90.0 0.1341 0.4715 0.0311
0.45 102.0 1.0254 0.7264 0.069
0.45 258.0 0.2664 0.7825 0.0341
0.45 270.0 -0.5154 0.4553 0.0433
0.45 282.0 -0.7095 0.3785 0.0524
0.45 294.0 -0.1792 0.3938 0.0319
0.45 306.0 -0.6031 0.5021 0.0473
0.55 66.0 0.2308 0.5741 0.0331
0.55 78.0 0.183 0.4021 0.032
0.55 90.0 0.53 0.469 0.0439
0.55 102.0 0.1354 0.6756 0.0311
0.55 114.0 -0.2718 0.545 0.0342
0.55 126.0 -0.1275 0.6417 0.031
0.55 234.0 0.7121 0.7877 0.0526
0.55 246.0 -0.2871 0.6465 0.0347
0.55 258.0 0.097 0.5494 0.0306
0.55 270.0 -0.5583 0.4498 0.0452
0.55 282.0 -0.0244 0.384 0.03
0.55 294.0 0.3618 0.4588 0.0372
0.65 66.0 0.1637 0.5148 0.0316
0.65 78.0 1.2041 0.4936 0.0789
0.65 90.0 0.2484 0.5717 0.0336
0.65 102.0 -0.0453 0.5027 0.0301
0.65 114.0 0.8875 0.4865 0.0616
0.65 126.0 -0.7766 0.4401 0.0558
0.65 138.0 -0.2464 0.5016 0.0335
0.65 150.0 0.2482 0.6655 0.0336
0.65 210.0 -0.2205 0.8158 0.0328
0.65 222.0 -0.1964 0.5253 0.0323
0.65 234.0 -0.3191 0.484 0.0357
0.65 246.0 -0.4289 0.4748 0.0397
0.65 258.0 0.535 0.4714 0.0442
0.65 270.0 -1.0205 0.4148 0.0687
0.65 282.0 -0.2796 0.5859 0.0345
0.65 294.0 0.32 0.651 0.0357
0.65 306.0 -0.0505 0.6986 0.0302
0.75 78.0 0.3979 0.5899 0.0385
0.75 90.0 1.1474 0.6584 0.0757
0.75 102.0 0.5425 0.4718 0.0445
0.75 114.0 -0.0628 0.4182 0.0302
0.75 126.0 -0.2475 0.3628 0.0335
0.75 138.0 -0.3283 0.4611 0.036
0.75 150.0 0.7478 0.5155 0.0543
0.75 162.0 0.0716 0.7274 0.0303
0.75 186.0 0.0854 0.87 0.0304
0.75 198.0 0.3307 0.8035 0.0361
0.75 210.0 0.7856 0.5192 0.0563
0.75 222.0 0.7756 0.4292 0.0558
0.75 234.0 0.1628 0.3872 0.0316
0.75 246.0 -0.0738 0.4004 0.0303
0.75 258.0 -0.51 0.4083 0.0431
0.75 270.0 -0.4584 0.5343 0.0409
0.75 282.0 -0.0257 0.6147 0.03
0.85 90.0 -1.0656 0.6834 0.0712
0.85 102.0 -0.5203 0.6479 0.0435
0.85 114.0 -0.1795 0.45 0.0319
0.85 126.0 -0.0744 0.4399 0.0303
0.85 138.0 0.2447 0.4626 0.0335
0.85 150.0 0.7949 0.5415 0.0567
0.85 174.0 -0.2271 0.7819 0.033
0.85 198.0 0.5694 0.7313 0.0457
0.85 210.0 0.194 0.5516 0.0322
0.85 222.0 0.0777 0.4399 0.0304
0.85 234.0 0.4454 0.3698 0.0404
0.85 246.0 0.8273 0.4127 0.0584
0.85 258.0 0.1477 0.4429 0.0313
0.85 270.0 0.211 0.5503 0.0326
0.95 198.0 0.7846 0.7434 0.0562
0.95 210.0 0.7069 0.7257 0.0523
0.95 222.0 0.2064 0.5149 0.0325
0.95 234.0 -0.5188 0.5509 0.0435
0.95 246.0 -0.2885 0.486 0.0347
0.95 258.0 0.8234 0.6139 0.0582
