Measurement E151M1785

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALL
εL: 0.1002
Q2: 0.0415 GeV2
W: 1415.0 GeV
Ebeam: 1.9889 GeV
ε: 0.9272

Slice: cos(θπ+) =

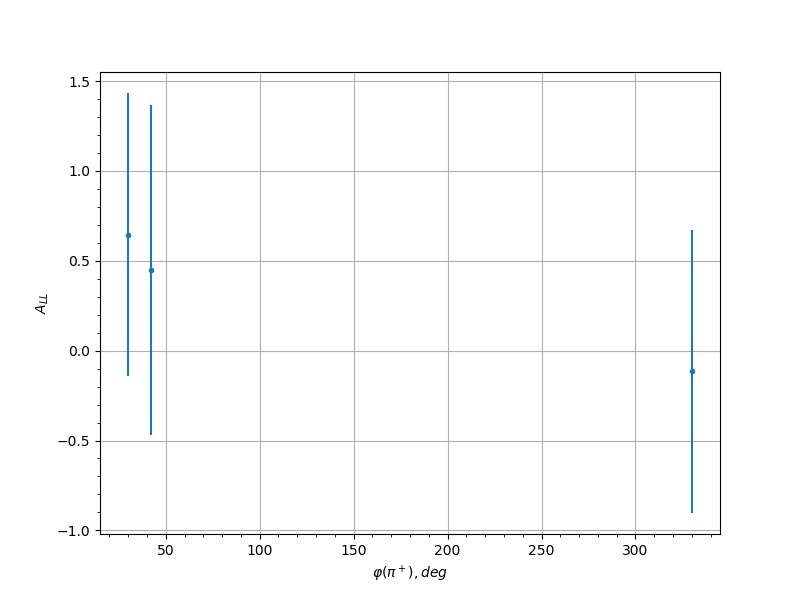

Measurement data
cos(θπ+) φ(π+), [deg] ALL uncertainty syst. uncert.
0.15 30.0 0.6462 0.7875 0.0493
0.15 42.0 0.4506 0.918 0.0406
0.15 330.0 -0.1151 0.7883 0.0308
0.25 30.0 -1.0798 0.6526 0.072
0.25 54.0 0.6582 0.7223 0.0499
0.25 66.0 -0.2816 0.6026 0.0345
0.25 78.0 1.2136 0.5968 0.0794
0.25 282.0 -0.6414 0.7758 0.0491
0.25 294.0 -0.7269 0.6512 0.0533
0.25 306.0 -1.5696 0.581 0.0997
0.25 330.0 0.483 0.8035 0.0419
0.35 18.0 0.8937 0.7607 0.0619
0.35 54.0 0.5202 0.7057 0.0435
0.35 66.0 -0.0659 0.487 0.0303
0.35 78.0 -0.5016 0.437 0.0427
0.35 90.0 0.1073 0.6247 0.0307
0.35 270.0 -0.9871 0.5284 0.0669
0.35 282.0 -0.0283 0.5143 0.03
0.35 294.0 -0.051 0.4502 0.0302
0.35 306.0 0.8718 0.6786 0.0608
0.35 318.0 -0.5893 0.7309 0.0466
0.45 18.0 -1.5939 0.6742 0.1011
0.45 66.0 0.1349 0.456 0.0311
0.45 78.0 0.5863 0.4236 0.0465
0.45 90.0 0.1073 0.4549 0.0307
0.45 102.0 -1.0298 0.8138 0.0692
0.45 258.0 0.9732 0.7796 0.0662
0.45 270.0 0.1887 0.4844 0.0321
0.45 282.0 -0.3629 0.3728 0.0372
0.45 294.0 -0.0099 0.4137 0.03
0.45 306.0 -0.5366 0.6833 0.0442
0.45 318.0 1.4234 0.6588 0.0913
0.55 66.0 -0.5171 0.578 0.0434
0.55 78.0 0.9836 0.3714 0.0667
0.55 90.0 0.6615 0.457 0.0501
0.55 102.0 0.1735 0.6071 0.0318
0.55 114.0 0.5198 0.6132 0.0435
0.55 126.0 0.4929 0.5861 0.0423
0.55 138.0 0.2754 0.7124 0.0343
0.55 222.0 -0.0897 0.7083 0.0305
0.55 234.0 0.2438 0.646 0.0334
0.55 246.0 0.4024 0.6677 0.0387
0.55 258.0 0.0035 0.5737 0.03
0.55 270.0 -0.3452 0.424 0.0366
0.55 282.0 0.0782 0.405 0.0304
0.55 294.0 0.1289 0.5071 0.031
0.65 66.0 -0.079 0.6445 0.0304
0.65 78.0 0.058 0.5357 0.0302
0.65 90.0 -0.2479 0.6239 0.0336
0.65 102.0 -1.3116 0.5331 0.085
0.65 114.0 -0.2568 0.4503 0.0338
0.65 126.0 0.4326 0.4135 0.0398
0.65 138.0 0.3571 0.5487 0.037
0.65 150.0 -0.2727 0.6346 0.0342
0.65 198.0 1.0941 0.6459 0.0728
0.65 210.0 -0.3045 0.5326 0.0352
0.65 222.0 -0.2526 0.4746 0.0337
0.65 234.0 -0.2777 0.5413 0.0344
0.65 246.0 0.3936 0.5136 0.0383
0.65 258.0 0.5155 0.4461 0.0433
0.65 270.0 -0.1979 0.5431 0.0323
0.65 282.0 0.152 0.5688 0.0314
0.65 294.0 -0.4098 0.5102 0.0389
0.65 306.0 -1.0339 0.5473 0.0695
0.75 78.0 1.5068 0.534 0.0961
0.75 102.0 1.3659 0.4872 0.088
0.75 114.0 0.0373 0.4587 0.0301
0.75 126.0 0.4287 0.4443 0.0397
0.75 138.0 -0.159 0.4794 0.0315
0.75 150.0 -1.064 0.4929 0.0711
0.75 162.0 -0.9563 0.8804 0.0653
0.75 198.0 1.4104 0.6919 0.0906
0.75 210.0 0.097 0.5161 0.0306
0.75 222.0 0.8864 0.4146 0.0615
0.75 234.0 -0.1965 0.3742 0.0323
0.75 246.0 0.3802 0.4257 0.0378
0.75 258.0 0.164 0.5921 0.0316
0.75 270.0 0.5297 0.6779 0.0439
0.75 282.0 0.1076 0.5693 0.0307
0.75 294.0 -0.5928 0.6406 0.0468
0.85 90.0 -0.3635 0.8033 0.0372
0.85 102.0 -0.1087 0.6717 0.0307
0.85 114.0 0.8095 0.6657 0.0575
0.85 126.0 -1.1474 0.5502 0.0757
0.85 138.0 0.6898 0.5028 0.0515
0.85 150.0 0.0323 0.8141 0.0301
0.85 198.0 -1.0372 0.75 0.0696
0.85 210.0 -0.1103 0.5282 0.0307
0.85 222.0 1.0031 0.4661 0.0678
0.85 234.0 -0.3607 0.4458 0.0371
0.85 246.0 -0.1168 0.4052 0.0308
0.85 258.0 -1.0929 0.4123 0.0727
0.85 270.0 -0.5509 0.6251 0.0449
0.95 222.0 0.6317 0.64 0.0486
0.95 234.0 0.1439 0.502 0.0312
0.95 246.0 -0.2429 0.6454 0.0334
