Measurement E151M1790

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALL
εL: 0.2162
Q2: 0.101 GeV2
W: 1415.0 GeV
Ebeam: 1.9889 GeV
ε: 0.9093

Slice: cos(θπ+) =

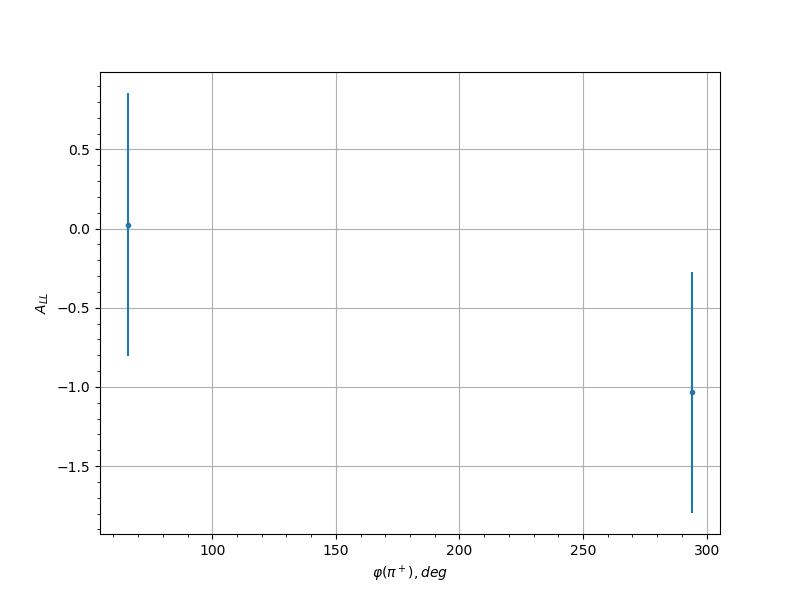

Measurement data
cos(θπ+) φ(π+), [deg] ALL uncertainty syst. uncert.
0.15 66.0 0.0247 0.8322 0.03
0.15 294.0 -1.0342 0.762 0.0695
0.25 54.0 -0.2512 0.9336 0.0336
0.25 66.0 0.0648 0.6512 0.0303
0.25 78.0 0.4369 0.8645 0.04
0.25 282.0 0.7072 0.799 0.0523
0.25 294.0 0.6973 0.6509 0.0518
0.25 306.0 -0.0224 0.7507 0.03
0.35 66.0 0.0477 0.5478 0.0301
0.35 78.0 0.3556 0.6268 0.0369
0.35 90.0 0.3334 0.8398 0.0362
0.35 282.0 0.4195 0.5562 0.0393
0.35 294.0 0.0907 0.5848 0.0305
0.35 306.0 -0.3106 0.6324 0.0354
0.45 66.0 0.8352 0.5842 0.0588
0.45 78.0 -0.9673 0.5489 0.0658
0.45 90.0 -0.4163 0.7295 0.0392
0.45 270.0 -1.194 0.7936 0.0783
0.45 282.0 -0.2947 0.6072 0.0349
0.45 294.0 0.3273 0.6631 0.036
0.55 66.0 -0.6417 0.8703 0.0491
0.55 78.0 -0.1081 0.5558 0.0307
0.55 90.0 1.1209 0.68 0.0743
0.55 114.0 -0.888 0.7055 0.0616
0.55 246.0 -0.0987 0.7898 0.0306
0.55 270.0 -0.0032 0.7413 0.03
0.55 282.0 0.1139 0.6199 0.0308
0.55 294.0 -0.2275 0.6094 0.033
0.65 66.0 0.6423 0.6243 0.0491
0.65 102.0 -0.0323 0.558 0.0301
0.65 114.0 0.7849 0.5148 0.0562
0.65 126.0 0.1701 0.5786 0.0317
0.65 138.0 0.4742 0.7364 0.0415
0.65 210.0 -1.8711 0.7201 0.1173
0.65 222.0 0.8704 0.6748 0.0607
0.65 234.0 0.5591 0.6749 0.0453
0.65 246.0 -0.0634 0.6545 0.0302
0.65 258.0 -0.7655 0.67 0.0552
0.65 270.0 -0.5877 0.6912 0.0466
0.65 282.0 -1.1384 0.7304 0.0752
0.65 294.0 0.2905 0.7368 0.0348
0.65 306.0 1.0697 0.8152 0.0714
0.75 90.0 0.6638 0.6323 0.0502
0.75 102.0 0.08 0.5549 0.0304
0.75 114.0 -0.3271 0.5127 0.036
0.75 126.0 -0.2759 0.5123 0.0343
0.75 138.0 -0.3168 0.6148 0.0356
0.75 150.0 -0.1524 0.8048 0.0314
0.75 198.0 -0.2601 0.804 0.0339
0.75 210.0 -0.0759 0.6826 0.0304
0.75 222.0 0.5772 0.588 0.0461
0.75 234.0 0.7357 0.4626 0.0537
0.75 246.0 -0.3141 0.4507 0.0355
0.75 258.0 0.7068 0.5766 0.0523
0.75 270.0 0.136 0.6557 0.0311
0.85 78.0 0.712 0.7811 0.0525
0.85 90.0 -0.7404 0.6843 0.054
0.85 102.0 -0.0431 0.6833 0.0301
0.85 114.0 0.6991 0.5245 0.0519
0.85 126.0 0.5241 0.563 0.0437
0.85 138.0 0.0692 0.658 0.0303
0.85 150.0 0.7489 0.7136 0.0544
0.85 210.0 -0.534 0.739 0.0441
0.85 222.0 -0.0091 0.5867 0.03
0.85 234.0 -0.8305 0.4795 0.0586
0.85 246.0 -0.298 0.4636 0.035
0.85 258.0 -0.0399 0.4754 0.0301
0.85 270.0 -0.4469 0.5033 0.0404
0.85 282.0 0.2708 0.7094 0.0342
0.95 90.0 -0.7769 0.6554 0.0558
0.95 102.0 0.2416 0.6281 0.0334
0.95 198.0 -0.0835 0.7722 0.0304
0.95 210.0 -0.2671 0.7304 0.0341
0.95 222.0 0.5135 0.6494 0.0432
0.95 234.0 1.085 0.5385 0.0723
0.95 246.0 0.7844 0.5146 0.0562
0.95 258.0 0.349 0.4503 0.0367
0.95 270.0 0.1801 0.5987 0.0319
