Measurement E151M1804

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALL
εL: 0.1382
Q2: 0.0707 GeV2
W: 1445.0 GeV
Ebeam: 1.9889 GeV
ε: 0.9062

Slice: cos(θπ+) =

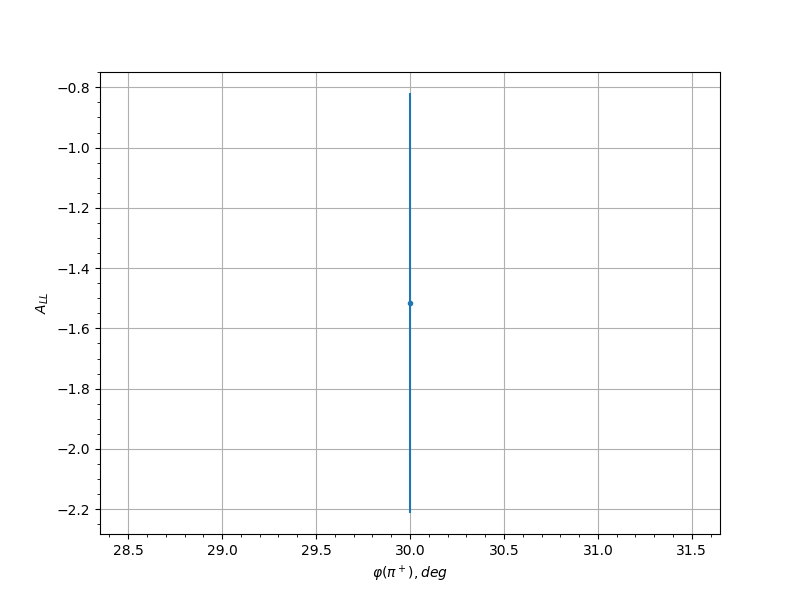

Measurement data
cos(θπ+) φ(π+), [deg] ALL uncertainty syst. uncert.
0.05 30.0 -1.5157 0.697 0.0966
0.15 30.0 0.0827 0.8577 0.0304
0.15 42.0 -0.8354 0.8411 0.0588
0.15 66.0 1.7753 0.7558 0.1117
0.15 306.0 -1.0641 0.7739 0.0711
0.25 18.0 0.7085 0.7894 0.0524
0.25 42.0 0.0692 0.8525 0.0303
0.25 54.0 -0.5805 0.7181 0.0462
0.25 66.0 -0.8467 0.6076 0.0594
0.25 78.0 0.0124 0.5957 0.03
0.25 282.0 0.7298 0.517 0.0534
0.25 294.0 -0.1159 0.6071 0.0308
0.25 306.0 0.1913 0.7492 0.0322
0.35 18.0 0.6407 0.8598 0.0491
0.35 54.0 -0.6785 0.8678 0.0509
0.35 66.0 -0.6036 0.4475 0.0473
0.35 78.0 -0.6266 0.5136 0.0484
0.35 90.0 0.048 0.6681 0.0301
0.35 270.0 0.2853 0.696 0.0346
0.35 282.0 0.1601 0.5353 0.0315
0.35 294.0 -0.1397 0.4487 0.0312
0.35 306.0 0.5059 0.6241 0.0429
0.45 66.0 0.8602 0.5453 0.0601
0.45 78.0 0.3726 0.4603 0.0375
0.45 90.0 -0.3557 0.5605 0.0369
0.45 102.0 -1.2934 0.7694 0.0839
0.45 258.0 1.2758 0.643 0.0829
0.45 270.0 0.2291 0.5236 0.0331
0.45 282.0 -0.1326 0.4138 0.0311
0.45 294.0 0.3477 0.4416 0.0367
0.45 306.0 -0.5061 0.7282 0.0429
0.55 66.0 -0.4503 0.6544 0.0406
0.55 78.0 -0.939 0.5166 0.0643
0.55 90.0 0.0643 0.5247 0.0303
0.55 102.0 0.4092 0.6001 0.0389
0.55 114.0 0.241 0.5554 0.0334
0.55 126.0 1.159 0.6657 0.0764
0.55 138.0 -0.5253 0.6582 0.0437
0.55 222.0 0.5344 0.7841 0.0441
0.55 234.0 -0.2858 0.6656 0.0346
0.55 246.0 0.6583 0.6389 0.0499
0.55 258.0 0.3418 0.5575 0.0365
0.55 270.0 -0.8324 0.4372 0.0587
0.55 282.0 -0.149 0.4184 0.0313
0.55 294.0 -0.1887 0.6044 0.0321
0.65 66.0 1.535 0.5315 0.0977
0.65 78.0 1.2939 0.6256 0.0839
0.65 90.0 -0.487 0.653 0.0421
0.65 102.0 0.7476 0.7277 0.0543
0.65 114.0 -0.1007 0.4798 0.0306
0.65 126.0 1.7994 0.4692 0.1131
0.65 138.0 1.2731 0.515 0.0828
0.65 150.0 0.3505 0.7319 0.0368
0.65 198.0 -0.2397 0.8138 0.0333
0.65 210.0 0.0751 0.7048 0.0303
0.65 222.0 -0.0712 0.5523 0.0303
0.65 234.0 -0.675 0.496 0.0507
0.65 246.0 -1.6491 0.4944 0.1043
0.65 258.0 0.2164 0.5188 0.0327
0.65 270.0 0.7004 0.5356 0.052
0.65 282.0 0.8609 0.6249 0.0602
0.65 294.0 0.8493 0.5362 0.0596
0.65 306.0 0.1497 0.6575 0.0313
0.75 66.0 0.1066 0.7488 0.0307
0.75 78.0 -0.0204 0.6593 0.03
0.75 90.0 0.4732 0.8232 0.0415
0.75 102.0 -0.6085 0.5836 0.0475
0.75 114.0 -0.0676 0.4325 0.0303
0.75 126.0 -0.2255 0.427 0.033
0.75 138.0 0.38 0.499 0.0378
0.75 150.0 -0.9245 0.5831 0.0636
0.75 198.0 -1.1979 0.8151 0.0785
0.75 210.0 -0.3313 0.5715 0.0361
0.75 222.0 -1.1992 0.4321 0.0786
0.75 234.0 0.1642 0.4312 0.0316
0.75 246.0 -0.0646 0.4167 0.0303
0.75 258.0 0.5402 0.5129 0.0444
0.75 270.0 -1.1045 0.6806 0.0733
0.75 282.0 0.2091 0.6776 0.0326
0.75 294.0 1.0222 0.5202 0.0688
0.85 90.0 -0.0845 0.6638 0.0304
0.85 102.0 -1.4704 0.647 0.094
0.85 114.0 0.0337 0.5107 0.0301
0.85 126.0 -0.266 0.5716 0.0341
0.85 138.0 -0.0365 0.5578 0.0301
0.85 150.0 -0.6818 0.625 0.0511
0.85 210.0 0.3059 0.6562 0.0353
0.85 222.0 0.2229 0.5571 0.0329
0.85 234.0 0.1054 0.413 0.0307
0.85 246.0 0.6155 0.4467 0.0479
0.85 258.0 -0.1161 0.4364 0.0308
0.85 270.0 -0.2631 0.5221 0.034
0.95 114.0 -1.7945 0.6293 0.1128
0.95 138.0 0.496 0.7492 0.0425
0.95 222.0 0.7042 0.5936 0.0522
0.95 234.0 -0.9632 0.501 0.0656
0.95 246.0 -0.565 0.4499 0.0455
0.95 258.0 -0.3582 0.6332 0.037
