Measurement E151M1846

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALL
εL: 0.0553
Q2: 0.0415 GeV2
W: 1535.0 GeV
Ebeam: 1.9889 GeV
ε: 0.8705

Slice: cos(θπ+) =

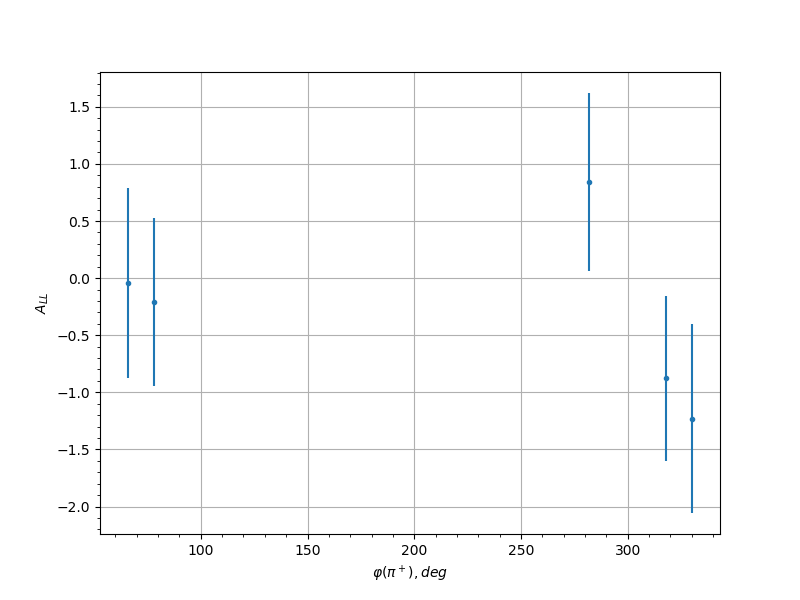

Measurement data
cos(θπ+) φ(π+), [deg] ALL uncertainty syst. uncert.
0.25 66.0 -0.0406 0.8324 0.0301
0.25 78.0 -0.2082 0.7365 0.0325
0.25 282.0 0.8413 0.7796 0.0592
0.25 318.0 -0.8772 0.7235 0.061
0.25 330.0 -1.2297 0.8269 0.0803
0.35 6.0 -0.4441 0.8254 0.0403
0.35 54.0 -0.579 0.8568 0.0462
0.35 66.0 -0.2071 0.6717 0.0325
0.35 78.0 -0.7817 0.613 0.0561
0.35 90.0 -0.7101 0.7044 0.0525
0.35 258.0 0.4453 0.7362 0.0404
0.35 270.0 -0.5242 0.6152 0.0437
0.35 282.0 0.067 0.5347 0.0303
0.35 294.0 0.9708 0.7485 0.066
0.35 318.0 -1.7289 0.829 0.109
0.45 18.0 -0.0061 0.8418 0.03
0.45 30.0 1.4497 0.766 0.0928
0.45 66.0 0.3804 0.6652 0.0378
0.45 78.0 0.2359 0.5635 0.0332
0.45 90.0 0.5455 0.6365 0.0446
0.45 102.0 0.7366 0.7247 0.0538
0.45 114.0 0.02 0.8729 0.03
0.45 126.0 -0.9916 0.8052 0.0672
0.45 138.0 -0.6775 0.8061 0.0508
0.45 210.0 -0.2523 0.9071 0.0337
0.45 222.0 -0.7654 0.8613 0.0552
0.45 258.0 -0.7244 0.6077 0.0532
0.45 270.0 0.2742 0.5647 0.0343
0.45 282.0 0.2403 0.4754 0.0333
0.45 294.0 0.3938 0.6533 0.0383
0.45 306.0 0.1679 0.7757 0.0317
0.45 330.0 -0.3051 0.8522 0.0352
0.55 78.0 0.0747 0.672 0.0303
0.55 90.0 -0.9421 0.7063 0.0645
0.55 102.0 -0.4223 0.6902 0.0394
0.55 114.0 1.1456 0.5837 0.0756
0.55 126.0 -0.1378 0.6294 0.0311
0.55 138.0 -0.478 0.7687 0.0417
0.55 150.0 -1.1756 0.7838 0.0773
0.55 198.0 -0.2052 0.8245 0.0325
0.55 210.0 -0.1879 0.7342 0.0321
0.55 222.0 -0.5053 0.6604 0.0429
0.55 234.0 -0.18 0.8183 0.0319
0.55 246.0 -0.432 0.7458 0.0398
0.55 258.0 0.3839 0.5831 0.038
0.55 270.0 -0.2202 0.4955 0.0328
0.55 282.0 0.2856 0.5445 0.0346
0.65 66.0 -0.437 0.8425 0.04
0.65 78.0 1.05 0.694 0.0703
0.65 90.0 -0.2035 0.8117 0.0324
0.65 102.0 1.426 0.824 0.0915
0.65 114.0 -0.3313 0.6474 0.0361
0.65 126.0 -0.118 0.5461 0.0308
0.65 138.0 -0.9591 0.583 0.0654
0.65 150.0 0.2858 0.8089 0.0346
0.65 162.0 -2.9776 2.9776 0.1829
0.65 186.0 -1.2656 0.8505 0.0823
0.65 198.0 -1.1723 0.7286 0.0771
0.65 210.0 -0.4005 0.5214 0.0386
0.65 222.0 -0.3471 0.5324 0.0366
0.65 234.0 -1.7394 0.5122 0.1096
0.65 246.0 0.2987 0.6019 0.035
0.65 258.0 -0.0736 0.6474 0.0303
0.65 270.0 -0.5366 0.6198 0.0442
0.65 282.0 -0.2006 0.625 0.0324
0.65 294.0 -0.0154 0.6735 0.03
0.75 66.0 -0.5475 0.6694 0.0447
0.75 78.0 0.261 0.7776 0.0339
0.75 90.0 0.7964 0.8884 0.0568
0.75 114.0 -0.2138 0.7257 0.0327
0.75 126.0 0.0823 0.605 0.0304
0.75 138.0 0.9351 0.543 0.0641
0.75 150.0 -1.1436 0.7213 0.0755
0.75 162.0 0.6465 0.8072 0.0493
0.75 186.0 -0.4001 0.8588 0.0386
0.75 198.0 0.2896 0.6655 0.0348
0.75 210.0 -0.2348 0.53 0.0332
0.75 222.0 -0.1921 0.542 0.0322
0.75 234.0 -1.3604 0.4812 0.0877
0.75 246.0 0.1158 0.618 0.0308
0.75 258.0 -0.0906 0.8419 0.0305
0.75 270.0 0.1455 0.6745 0.0313
0.75 282.0 -0.732 0.4351 0.0536
0.75 294.0 -0.1393 0.6213 0.0312
0.85 102.0 0.6348 0.611 0.0488
0.85 114.0 -1.4134 0.5227 0.0907
0.85 126.0 0.6112 0.6046 0.0477
0.85 138.0 -1.0949 0.7754 0.0728
0.85 186.0 -0.1693 0.8465 0.0317
0.85 198.0 0.0465 0.7147 0.0301
0.85 210.0 -0.1858 0.5846 0.032
0.85 222.0 -0.2683 0.5368 0.0341
0.85 234.0 -0.4541 0.4558 0.0407
0.85 246.0 -0.0448 0.6256 0.0301
0.85 258.0 -0.1315 0.7798 0.031
0.85 270.0 -1.0945 0.8695 0.0728
0.95 222.0 0.4865 0.6856 0.0421
0.95 234.0 -0.2153 0.6501 0.0327
