Measurement E151M1848

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALL
εL: 0.0765
Q2: 0.0593 GeV2
W: 1535.0 GeV
Ebeam: 1.9889 GeV
ε: 0.864

Slice: cos(θπ+) =

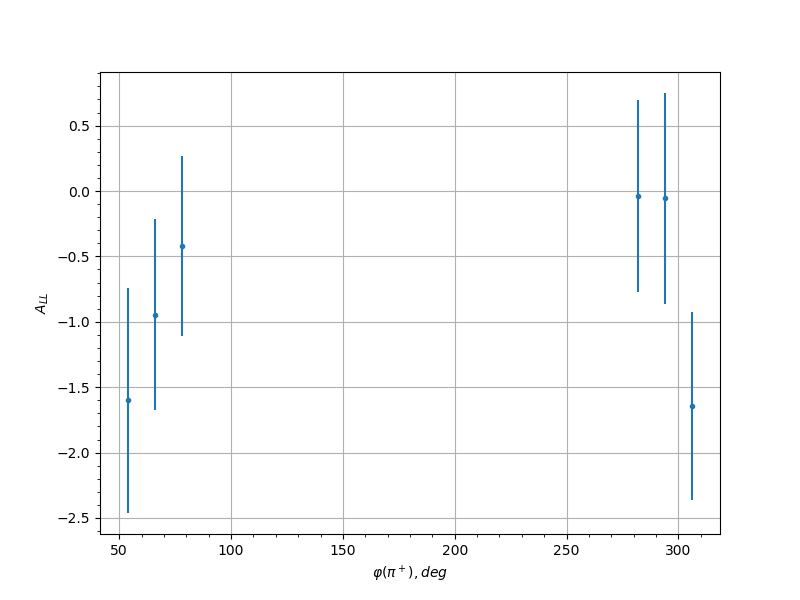

Measurement data
cos(θπ+) φ(π+), [deg] ALL uncertainty syst. uncert.
0.25 54.0 -1.6013 0.8605 0.1016
0.25 66.0 -0.9444 0.7306 0.0646
0.25 78.0 -0.4196 0.6858 0.0393
0.25 282.0 -0.0402 0.7355 0.0301
0.25 294.0 -0.0558 0.8051 0.0302
0.25 306.0 -1.6407 0.7182 0.1038
0.35 18.0 0.4566 0.8147 0.0408
0.35 66.0 -0.2555 0.6131 0.0338
0.35 78.0 0.2284 0.6578 0.033
0.35 90.0 0.7972 0.7455 0.0569
0.35 270.0 0.4123 0.6101 0.039
0.35 282.0 -0.4503 0.5865 0.0406
0.35 294.0 0.2182 0.6456 0.0328
0.35 306.0 -0.3628 0.7639 0.0372
0.35 330.0 -0.6193 0.8382 0.048
0.45 66.0 -0.0944 0.7113 0.0305
0.45 78.0 1.1419 0.6546 0.0754
0.45 90.0 1.0094 0.6072 0.0681
0.45 102.0 -0.2419 0.7674 0.0334
0.45 114.0 0.2745 0.9039 0.0343
0.45 126.0 -1.4472 0.6702 0.0927
0.45 138.0 -0.4135 0.8197 0.0391
0.45 222.0 0.5399 0.8367 0.0444
0.45 258.0 -1.2433 0.8215 0.0811
0.45 270.0 0.4336 0.5302 0.0399
0.45 282.0 0.0411 0.5523 0.0301
0.45 294.0 0.2924 0.7005 0.0348
0.45 306.0 0.6711 0.8326 0.0505
0.45 318.0 0.7591 0.8388 0.0549
0.55 78.0 1.0569 0.5917 0.0707
0.55 90.0 0.075 0.6403 0.0303
0.55 102.0 -0.332 0.8205 0.0361
0.55 114.0 -0.7085 0.6065 0.0524
0.55 126.0 0.1449 0.6502 0.0313
0.55 138.0 -0.6129 0.6563 0.0477
0.55 150.0 -0.3412 0.7578 0.0364
0.55 210.0 0.7218 0.7402 0.053
0.55 222.0 -0.8192 0.6874 0.058
0.55 234.0 -0.6149 0.6452 0.0478
0.55 246.0 0.2891 0.7202 0.0347
0.55 258.0 -0.4074 0.6157 0.0389
0.55 270.0 -0.4692 0.4633 0.0413
0.55 282.0 -0.0582 0.564 0.0302
0.55 294.0 -0.6041 0.7511 0.0473
0.65 54.0 -0.3642 0.7222 0.0372
0.65 66.0 0.4771 0.6611 0.0417
0.65 78.0 0.2405 0.8591 0.0334
0.65 102.0 -0.9439 0.7014 0.0646
0.65 114.0 -0.6201 0.5158 0.0481
0.65 126.0 -0.2783 0.5882 0.0344
0.65 138.0 -1.2664 0.5307 0.0824
0.65 150.0 0.1706 0.7899 0.0317
0.65 198.0 0.2119 0.8483 0.0326
0.65 210.0 0.8127 0.6169 0.0577
0.65 222.0 0.3718 0.5625 0.0375
0.65 234.0 -0.4815 0.5823 0.0418
0.65 246.0 -0.4767 0.6344 0.0416
0.65 258.0 0.665 0.6389 0.0502
0.65 270.0 -1.1585 0.7155 0.0763
0.65 282.0 -0.1715 0.6798 0.0317
0.65 294.0 0.1539 0.6345 0.0314
0.65 306.0 0.4904 0.7753 0.0422
0.75 66.0 -0.9855 0.6208 0.0668
0.75 78.0 1.1616 0.6914 0.0765
0.75 102.0 -2.2624 0.6289 0.1403
0.75 114.0 0.2383 0.6082 0.0333
0.75 126.0 0.1102 0.5188 0.0307
0.75 138.0 -0.0941 0.5684 0.0305
0.75 150.0 -1.774 0.6389 0.1116
0.75 186.0 0.1616 0.9216 0.0316
0.75 198.0 -2.0161 0.5596 0.1258
0.75 210.0 -1.6418 0.5056 0.1039
0.75 222.0 -0.8956 0.5118 0.062
0.75 234.0 0.1532 0.4958 0.0314
0.75 246.0 -0.5363 0.4835 0.0442
0.75 258.0 0.0799 0.6657 0.0304
0.75 270.0 -0.5361 0.707 0.0442
0.75 282.0 0.2221 0.5054 0.0329
0.75 294.0 0.7018 0.5926 0.052
0.85 90.0 -0.1937 0.9567 0.0322
0.85 102.0 0.3799 0.6739 0.0378
0.85 114.0 0.4909 0.6152 0.0422
0.85 126.0 -1.1086 0.6244 0.0736
0.85 138.0 -1.704 0.701 0.1075
0.85 198.0 -0.7911 0.7259 0.0566
0.85 210.0 -0.4641 0.5634 0.0411
0.85 222.0 -0.367 0.5214 0.0373
0.85 234.0 -0.5662 0.4769 0.0456
0.85 246.0 0.3277 0.5326 0.036
0.85 258.0 -0.6813 0.7211 0.051
0.85 282.0 1.7096 0.6107 0.1079
0.95 126.0 0.0532 0.8303 0.0302
0.95 198.0 -0.9032 0.6808 0.0624
0.95 210.0 -1.1805 0.6976 0.0776
0.95 222.0 -1.1275 0.5504 0.0746
0.95 234.0 0.4156 0.5352 0.0392
0.95 246.0 0.4017 0.765 0.0386
0.95 258.0 -0.3735 0.7524 0.0376
