Measurement E151M1976

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALL
εL: 0.3691
Q2: 0.0844 GeV2
W: 1295.0 GeV
Ebeam: 2.2596 GeV
ε: 0.9635

Slice: cos(θπ+) =

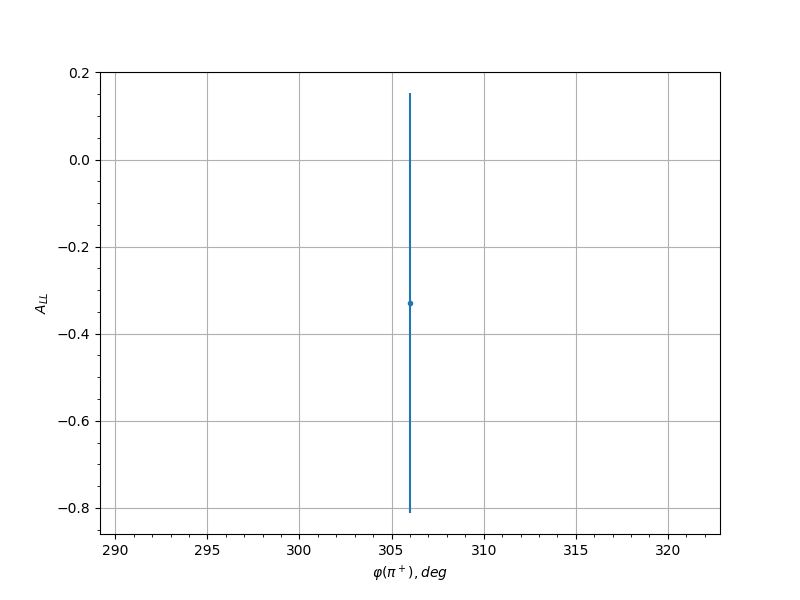

Measurement data
cos(θπ+) φ(π+), [deg] ALL uncertainty syst. uncert.
0.15 306.0 -0.3295 0.4823 0.0631
0.25 66.0 -0.1404 0.4779 0.032
0.25 78.0 -0.424 0.5149 0.0408
0.25 294.0 0.0759 0.4549 0.033
0.25 306.0 1.0475 0.3791 0.0754
0.35 66.0 0.4609 0.3819 0.0595
0.35 78.0 -0.4243 0.4209 0.0501
0.35 282.0 0.7195 0.583 0.0556
0.35 294.0 0.0166 0.3946 0.0304
0.35 306.0 0.148 0.4575 0.0525
0.45 66.0 -0.6027 0.3755 0.0552
0.45 78.0 -0.6658 0.3441 0.0543
0.45 90.0 -0.4247 0.4997 0.0458
0.45 282.0 0.28 0.5071 0.0406
0.45 294.0 0.0791 0.4347 0.0305
0.55 66.0 0.1464 0.4453 0.0955
0.55 78.0 0.2152 0.3433 0.0385
0.55 90.0 0.6165 0.5302 0.0501
0.55 270.0 0.2299 0.4502 0.0366
0.55 282.0 -0.5531 0.4471 0.0483
0.65 78.0 -2.1847 1.4949 0.203
0.65 90.0 1.3651 1.7784 0.129
0.65 102.0 1.9254 1.9435 0.1795
0.65 114.0 1.7934 2.0113 0.1675
0.65 246.0 0.8801 1.5478 0.0863
0.65 258.0 1.0504 1.2407 0.1011
0.65 270.0 2.2515 1.0807 0.2091
0.65 282.0 2.6875 1.101 0.2488
0.75 90.0 1.0181 1.7833 0.0983
0.75 102.0 0.771 1.6381 0.0769
0.75 114.0 0.9166 1.5338 0.0894
0.75 126.0 -0.4819 1.905 0.0535
0.75 234.0 2.3801 1.6566 0.2208
0.75 246.0 -2.1507 1.2228 0.1999
0.75 258.0 -0.6399 0.9142 0.066
0.75 270.0 -0.1365 1.0827 0.0325
0.75 282.0 -1.568 1.2501 0.1472
0.85 102.0 -1.8534 1.6119 0.173
0.85 114.0 -2.1741 1.4337 0.202
0.85 126.0 0.5947 1.5326 0.0623
0.85 138.0 -0.5689 1.5086 0.0603
0.85 150.0 3.1288 1.5722 0.2891
0.85 162.0 0.6877 2.2177 0.07
0.85 222.0 2.9895 1.8254 0.2764
0.85 234.0 1.706 1.3664 0.1596
0.85 246.0 -2.0893 1.3716 0.1943
0.85 258.0 -0.4409 1.1603 0.0504
0.85 270.0 1.6744 1.1867 0.1568
0.85 282.0 0.3566 1.4172 0.0444
0.95 114.0 4.2343 5.4122 0.3903
0.95 126.0 3.2523 4.9153 0.3004
0.95 138.0 -6.4878 5.9763 0.597
0.95 150.0 -0.6443 5.1509 0.0664
0.95 162.0 6.3074 6.1126 0.5804
0.95 186.0 -1.7212 6.4589 0.161
0.95 198.0 1.4357 5.7494 0.1353
0.95 222.0 14.6971 14.6971 1.351
0.95 234.0 5.0738 5.2556 0.4673
0.95 246.0 17.3544 17.3544 1.5952
0.95 258.0 1.7775 4.9745 0.1661
0.55 294.0 0.083 0.4708 0.0305
0.65 78.0 0.0635 0.5106 0.0303
0.65 90.0 0.4383 0.5476 0.0414
0.65 102.0 -0.269 0.6416 0.0347
0.65 246.0 -0.3332 0.5511 0.037
0.65 258.0 0.3082 0.399 0.0361
0.65 270.0 0.0575 0.4148 0.0302
0.65 282.0 0.5472 0.4629 0.0465
0.75 90.0 0.1393 0.5722 0.0313
0.75 102.0 -0.6359 0.4549 0.0511
0.75 114.0 0.3059 0.463 0.036
0.75 126.0 -0.1283 0.5531 0.0311
0.75 138.0 -0.3782 0.6054 0.0388
0.75 234.0 -0.8156 0.507 0.061
0.75 246.0 -1.0057 0.4216 0.072
0.75 258.0 0.1306 0.3643 0.0312
0.75 270.0 0.1452 0.3344 0.0315
0.75 282.0 -0.2486 0.4259 0.0341
0.85 90.0 0.0656 0.6493 0.0303
0.85 102.0 -0.7586 0.4614 0.0577
0.85 114.0 0.9396 0.4583 0.0681
0.85 126.0 0.0259 0.4059 0.03
0.85 138.0 1.0577 0.4812 0.0751
0.85 150.0 1.0413 0.5986 0.0741
0.85 162.0 -0.4112 0.7391 0.0402
0.85 198.0 0.489 0.7681 0.0437
0.85 222.0 0.779 0.5173 0.0589
0.85 234.0 0.2126 0.5192 0.033
0.85 246.0 1.0194 0.4538 0.0728
0.85 258.0 -0.1639 0.4253 0.0318
0.85 270.0 1.0677 0.3714 0.0757
0.85 282.0 0.4684 0.5662 0.0428
0.95 102.0 2.7546 0.8755 0.1817
0.95 114.0 -0.4131 0.9522 0.0403
0.95 126.0 0.1588 0.7777 0.0317
0.95 138.0 0.7584 0.8256 0.0577
0.95 150.0 0.6664 0.9293 0.0527
0.95 162.0 -0.3654 1.1404 0.0383
0.95 174.0 1.7159 1.1937 0.1156
0.95 186.0 1.7105 1.0389 0.1152
0.95 210.0 0.9732 0.9735 0.0701
0.95 222.0 0.5376 1.0058 0.0461
0.95 234.0 0.9517 0.8853 0.0688
0.95 246.0 1.2523 0.7812 0.0868
0.95 258.0 0.8439 0.818 0.0626
0.95 270.0 0.6217 0.9438 0.0504
