Measurement E151M2003

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALL
εL: 0.3459
Q2: 0.1205 GeV2
W: 1355.0 GeV
Ebeam: 2.2596 GeV
ε: 0.9439

Slice: cos(θπ+) =

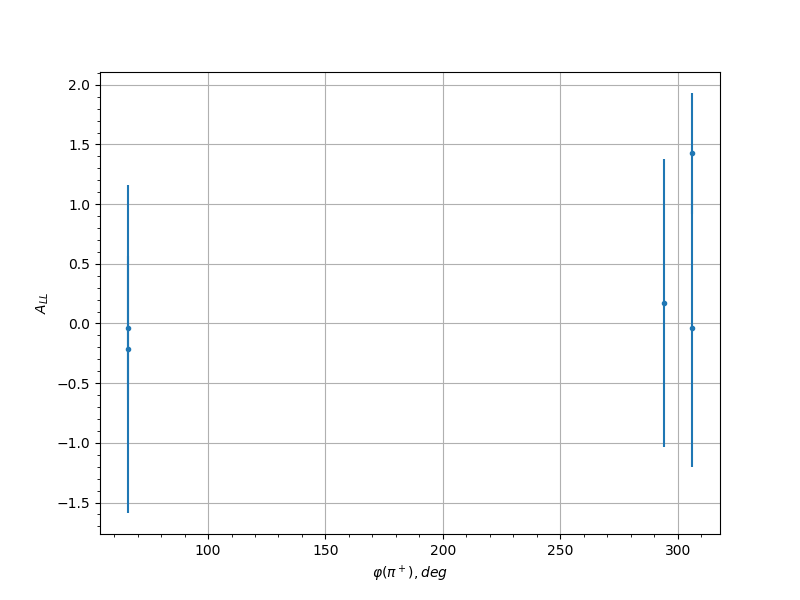

Measurement data
cos(θπ+) φ(π+), [deg] ALL uncertainty syst. uncert.
0.25 66.0 -0.2156 1.3723 0.036
0.25 294.0 0.1726 1.2092 0.0339
0.25 306.0 -0.0408 1.1587 0.0302
0.35 66.0 -1.5304 1.2851 0.1438
0.35 78.0 -1.458 1.2877 0.1373
0.35 294.0 -1.3959 0.9113 0.1317
0.35 306.0 -0.2117 1.0592 0.0358
0.45 66.0 -0.5875 1.3413 0.0618
0.45 78.0 1.163 1.1315 0.111
0.45 294.0 -0.1578 1.0569 0.0333
0.55 78.0 -1.1952 1.5113 0.1139
0.65 78.0 0.5741 1.462 0.0607
0.65 90.0 -0.9185 1.599 0.0896
0.65 102.0 -0.0784 1.3174 0.0309
0.65 114.0 -0.0589 1.2766 0.0305
0.65 258.0 0.6456 0.9817 0.0665
0.65 270.0 0.3966 1.1049 0.0472
0.75 90.0 0.9474 1.3637 0.0921
0.75 102.0 -0.0586 1.2793 0.0305
0.75 114.0 1.1559 1.1689 0.1104
0.75 126.0 -0.4108 1.5704 0.0482
0.75 138.0 -0.9974 1.5717 0.0964
0.75 234.0 -1.5281 1.1775 0.1436
0.75 246.0 -1.0788 1.0863 0.1036
0.75 258.0 0.772 1.0123 0.077
0.75 270.0 -1.1368 1.0495 0.1087
0.75 282.0 0.6676 1.1833 0.0683
0.85 90.0 -1.0301 1.7691 0.0993
0.85 102.0 1.3649 1.235 0.129
0.85 114.0 -3.1709 1.3958 0.293
0.85 126.0 -0.8388 1.3338 0.0827
0.85 138.0 -3.5329 1.4992 0.3261
0.85 222.0 0.9323 1.7557 0.0908
0.85 234.0 -1.9826 1.1512 0.1847
0.85 246.0 1.1434 1.076 0.1093
0.85 258.0 -0.2694 1.1543 0.0389
0.85 270.0 -0.2558 1.0224 0.0381
0.85 282.0 0.6623 1.0794 0.0679
0.95 114.0 3.9032 4.8946 0.36
0.95 138.0 17.7141 17.7141 1.6282
0.95 222.0 1.1077 3.9603 0.1061
0.95 234.0 4.7076 4.4781 0.4337
0.95 246.0 -3.6612 3.2828 0.3378
0.95 258.0 -0.9017 3.7461 0.0881
0.95 270.0 -2.129 3.1797 0.1979
0.95 282.0 3.7833 4.14 0.349
0.15 66.0 0.2532 0.5841 0.0342
0.15 306.0 -0.3573 0.6093 0.038
0.25 66.0 -0.0344 0.6036 0.0301
0.25 306.0 1.4256 0.5058 0.0975
0.35 66.0 0.2376 0.5339 0.0337
0.35 78.0 -0.9834 0.5474 0.0707
0.35 294.0 0.0872 0.5895 0.0305
0.35 306.0 -0.0342 0.632 0.0301
0.45 66.0 0.5339 0.534 0.0459
0.45 78.0 0.1641 0.535 0.0318
0.45 282.0 0.3725 0.6773 0.0386
0.45 294.0 0.1786 0.6439 0.0322
0.55 78.0 -0.509 0.6579 0.0447
0.55 270.0 -0.6992 0.7144 0.0545
0.65 102.0 0.215 0.6853 0.0331
0.65 114.0 -0.1793 0.6668 0.0322
0.65 246.0 -1.0545 0.6534 0.0749
0.65 258.0 0.3432 0.6599 0.0374
0.65 270.0 -0.2613 0.6271 0.0345
0.75 90.0 -0.1209 0.6355 0.031
0.75 102.0 0.3737 0.506 0.0386
0.75 114.0 -0.1604 0.5245 0.0318
0.75 126.0 0.5761 0.6102 0.048
0.75 222.0 0.778 0.6826 0.0588
0.75 234.0 0.7965 0.5807 0.0599
0.75 246.0 1.0194 0.5306 0.0728
0.75 258.0 0.8088 0.5676 0.0606
0.75 270.0 0.9483 0.5271 0.0686
0.75 282.0 0.4906 0.6619 0.0438
0.85 78.0 0.8974 0.7525 0.0656
0.85 90.0 1.2228 0.7658 0.085
0.85 102.0 -0.886 0.5497 0.065
0.85 114.0 0.0811 0.5155 0.0305
0.85 126.0 0.7785 0.664 0.0589
0.85 138.0 1.0515 0.6305 0.0747
0.85 222.0 -0.6087 0.8055 0.0497
0.85 234.0 -0.5062 0.6282 0.0445
0.85 246.0 -0.384 0.5245 0.039
0.85 258.0 -0.441 0.5579 0.0415
0.85 270.0 0.0866 0.4958 0.0305
0.85 282.0 0.5817 0.5084 0.0483
0.95 102.0 0.5042 1.2674 0.0445
0.95 126.0 0.0123 1.2191 0.03
0.95 138.0 1.0529 1.1006 0.0748
0.95 150.0 2.2393 1.2683 0.1487
0.95 222.0 0.6234 1.3191 0.0504
0.95 234.0 -0.9983 1.172 0.0715
0.95 246.0 1.4128 1.1018 0.0967
0.95 258.0 0.8895 1.1081 0.0652
0.95 270.0 0.5143 0.9219 0.0449
0.95 282.0 1.1866 1.0868 0.0828
