Measurement E151M2098

Experiment:	EG4
Year:	2016	Experiment comment: Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson:	Xiaochao Zheng
Reaction:	ep → π⁺n
Polarization:	beam (longitudinal), target (longitudinal)
Quantity:	A_LL
ε_L:	0.1113
Q²:	0.101 GeV²
W:	1565.0 GeV
E_beam:	2.2596 GeV
ε:	0.8731

Slice: cos(θ_π⁺) =

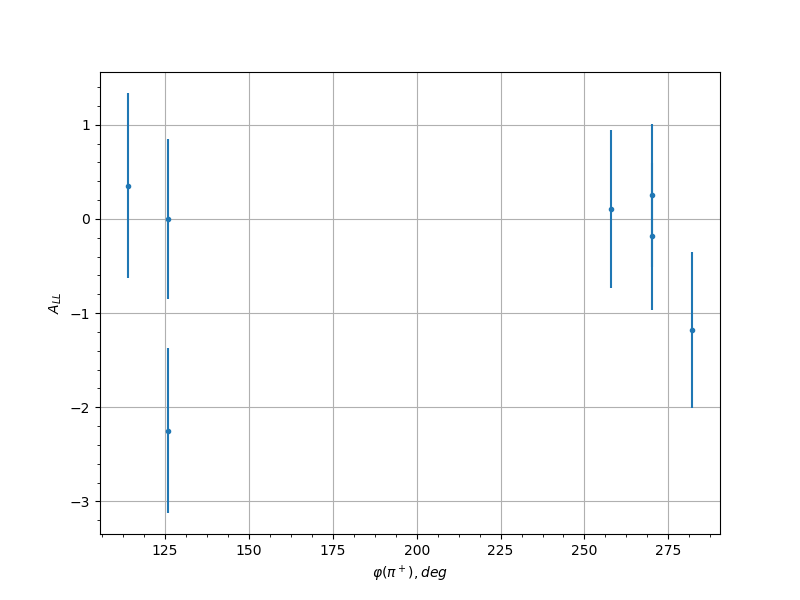

Measurement data
cos(θ_π⁺)	φ(π⁺), [deg]	A_LL	uncertainty	syst. uncert.
0.55	126.0	0.0015	0.8519	0.03
0.55	270.0	-0.1823	0.7793	0.0323
0.55	282.0	-1.1754	0.8267	0.0821
0.65	102.0	0.2394	0.8633	0.0338
0.65	114.0	0.7033	0.6816	0.0547
0.65	126.0	-0.5133	0.8977	0.0449
0.65	222.0	0.8723	1.0108	0.0642
0.65	246.0	-1.759	0.9056	0.1183
0.75	114.0	0.5331	0.9394	0.0459
0.75	126.0	-0.8314	0.9289	0.0618
0.75	138.0	-1.1179	0.8525	0.0787
0.75	222.0	0.8765	0.9323	0.0644
0.75	234.0	-0.827	0.9458	0.0616
0.75	294.0	-1.5649	0.7301	0.1061
0.85	90.0	0.3866	0.7257	0.0391
0.85	102.0	1.0948	0.7627	0.0773
0.85	210.0	0.114	1.0104	0.0309
0.85	222.0	-0.5684	0.7688	0.0476
0.85	234.0	-0.6636	0.9471	0.0526
0.85	246.0	0.1964	0.9053	0.0326
0.85	282.0	-0.6471	0.9604	0.0517
0.95	234.0	2.9022	1.3023	0.1912
0.95	246.0	-2.6877	1.494	0.1774
0.45	282.0	0.7719	0.7478	0.077
0.55	114.0	0.3547	0.9832	0.0443
0.55	126.0	-2.2469	0.8755	0.2087
0.55	258.0	0.1059	0.8435	0.0315
0.55	270.0	0.2496	0.7613	0.0378
0.65	126.0	-0.634	0.8992	0.0655
0.65	138.0	1.2002	0.9419	0.1143
0.65	222.0	1.8212	0.7497	0.17
0.75	102.0	1.3069	0.9996	0.1238
0.75	114.0	0.357	0.8826	0.0445
0.75	126.0	-0.0527	0.936	0.0304
0.75	210.0	-0.5888	0.9124	0.0619
0.75	222.0	1.0394	0.9406	0.1001
0.75	234.0	0.1501	0.9019	0.033
0.75	282.0	0.5125	0.7066	0.0558
0.75	294.0	-0.3996	0.8324	0.0474
0.85	90.0	0.3342	1.1266	0.0429
0.85	210.0	0.5866	1.0449	0.0617
0.85	222.0	0.226	0.9458	0.0365
0.85	234.0	-0.2858	0.9225	0.0399
0.95	210.0	0.9934	3.0446	0.0961
0.95	222.0	-0.1226	2.8398	0.032
0.95	246.0	0.2386	2.6646	0.0372
