Measurement E151M2192

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALL
εL: 0.6259
Q2: 0.1715 GeV2
W: 1295.0 GeV
Ebeam: 2.999 GeV
ε: 0.9713

Slice: cos(θπ+) =

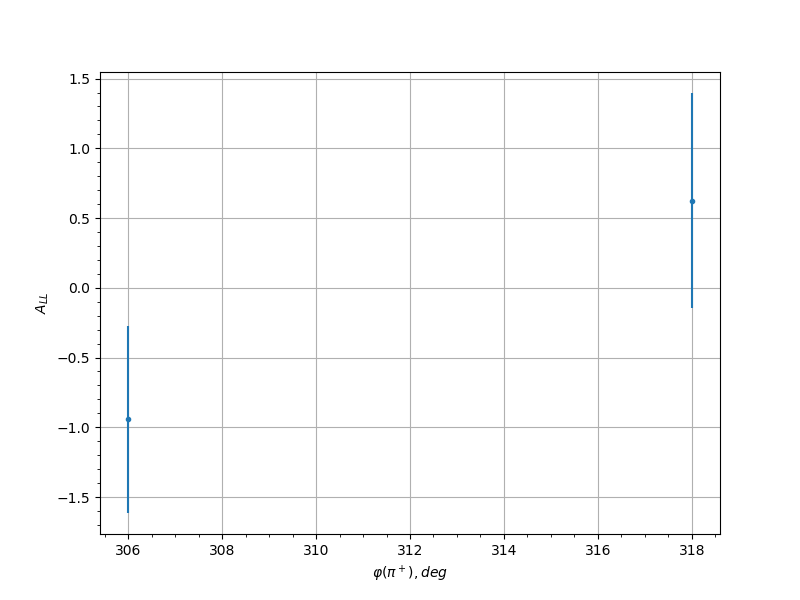

Measurement data
cos(θπ+) φ(π+), [deg] ALL uncertainty syst. uncert.
-0.05 306.0 -0.944 0.6707 0.0747
-0.05 318.0 0.6257 0.7709 0.0544
0.05 54.0 -0.1345 0.7564 0.0315
0.05 66.0 -0.2049 0.8902 0.0335
0.05 294.0 0.8905 0.7851 0.0712
0.05 306.0 -0.0218 0.5216 0.03
0.05 318.0 -0.623 0.734 0.0542
0.15 54.0 0.3748 0.6346 0.0405
0.15 66.0 0.0101 0.4841 0.03
0.15 78.0 1.3984 0.7531 0.1057
0.15 294.0 0.1396 0.6144 0.0317
0.15 306.0 -0.4048 0.5232 0.042
0.15 318.0 0.4711 0.7771 0.0455
0.25 54.0 -0.6515 0.6676 0.056
0.25 66.0 0.3879 0.3979 0.0411
0.25 78.0 -1.4121 0.5828 0.1067
0.25 294.0 0.1484 0.5681 0.0319
0.25 306.0 0.0929 0.5126 0.0307
0.35 54.0 0.2821 0.5561 0.0363
0.35 66.0 -0.3466 0.4122 0.0391
0.35 78.0 -0.3275 0.5037 0.0383
0.35 282.0 0.6798 0.7624 0.0577
0.35 294.0 -0.7842 0.5113 0.0643
0.35 306.0 0.582 0.6443 0.0518
0.45 54.0 1.4499 0.5165 0.1093
0.45 66.0 -0.386 0.5046 0.041
0.45 78.0 -0.2688 0.4927 0.0358
0.45 270.0 -0.0694 0.8414 0.0304
0.45 282.0 1.407 0.4621 0.1063
0.45 294.0 0.0104 0.456 0.03
0.55 54.0 0.044 0.7855 0.0302
0.55 66.0 0.2412 0.5451 0.0347
0.55 78.0 -0.6723 0.5257 0.0572
0.55 90.0 0.3542 0.6427 0.0395
0.55 102.0 -0.2706 0.8875 0.0358
0.55 270.0 -0.0528 0.4633 0.0302
0.55 282.0 -0.0828 0.4001 0.0306
0.55 294.0 -0.5358 0.4833 0.0491
0.65 66.0 0.2281 0.6518 0.0343
0.65 78.0 0.3591 0.4815 0.0397
0.65 90.0 0.2958 0.4245 0.0369
0.65 102.0 0.2267 0.4813 0.0342
0.65 114.0 0.903 0.8501 0.072
0.65 258.0 0.2552 0.4583 0.0352
0.65 270.0 0.3819 0.3198 0.0408
0.65 282.0 0.578 0.312 0.0515
0.65 294.0 0.3447 0.3796 0.039
0.75 66.0 -0.8435 0.4836 0.0681
0.75 78.0 0.0485 0.3717 0.0302
0.75 90.0 -0.0974 0.3282 0.0308
0.75 102.0 -0.0793 0.3489 0.0305
0.75 114.0 0.6865 0.3688 0.0581
0.75 126.0 1.4021 0.8182 0.106
0.75 234.0 0.5284 0.7046 0.0487
0.75 246.0 -0.3608 0.4746 0.0398
0.75 258.0 0.3026 0.3541 0.0372
0.75 270.0 -0.6234 0.2881 0.0543
0.75 282.0 0.5251 0.2972 0.0485
0.75 294.0 -0.161 0.3028 0.0322
0.75 306.0 0.0595 0.6482 0.0303
0.85 66.0 -0.1943 0.5076 0.0331
0.85 78.0 0.3403 0.3281 0.0388
0.85 90.0 0.5725 0.2881 0.0512
0.85 102.0 0.9575 0.2789 0.0756
0.85 114.0 0.3903 0.2937 0.0412
0.85 126.0 0.4743 0.3862 0.0456
0.85 138.0 -0.1554 0.5243 0.032
0.85 150.0 0.8079 0.7769 0.0658
0.85 210.0 1.0789 0.7091 0.0838
0.85 222.0 0.5541 0.5523 0.0501
0.85 234.0 -0.2773 0.4446 0.0361
0.85 246.0 0.2539 0.3444 0.0352
0.85 258.0 -0.1036 0.2916 0.0309
0.85 270.0 -0.1115 0.3007 0.0311
0.85 282.0 -0.1479 0.2891 0.0319
0.85 294.0 0.6454 0.2741 0.0556
0.85 306.0 0.4762 0.4234 0.0457
0.95 54.0 -0.8332 0.751 0.0675
0.95 66.0 0.7388 0.4528 0.0614
0.95 78.0 0.3509 0.3407 0.0393
0.95 90.0 -0.0225 0.3409 0.03
0.95 102.0 -0.3671 0.3643 0.0401
0.95 114.0 0.5509 0.3565 0.05
0.95 126.0 -0.3199 0.3799 0.0379
0.95 138.0 -0.1001 0.3966 0.0309
0.95 150.0 -0.1076 0.452 0.031
0.95 162.0 0.5997 0.5172 0.0528
0.95 174.0 0.3475 0.6087 0.0392
0.95 186.0 0.4141 0.6469 0.0424
0.95 198.0 -1.0177 0.583 0.0797
0.95 210.0 -0.2464 0.4934 0.0349
0.95 222.0 0.4131 0.4322 0.0424
0.95 234.0 0.1746 0.4407 0.0326
0.95 246.0 -0.3388 0.3876 0.0388
0.95 258.0 0.188 0.3372 0.033
0.95 270.0 0.5313 0.3285 0.0488
0.95 282.0 0.2888 0.3388 0.0366
0.95 294.0 -0.2519 0.3301 0.0351
0.95 306.0 -0.1145 0.3699 0.0311
0.95 318.0 0.4335 0.6308 0.0435
