Measurement E151M2213

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALL
εL: 0.4047
Q2: 0.1435 GeV2
W: 1355.0 GeV
Ebeam: 2.999 GeV
ε: 0.9673

Slice: cos(θπ+) =

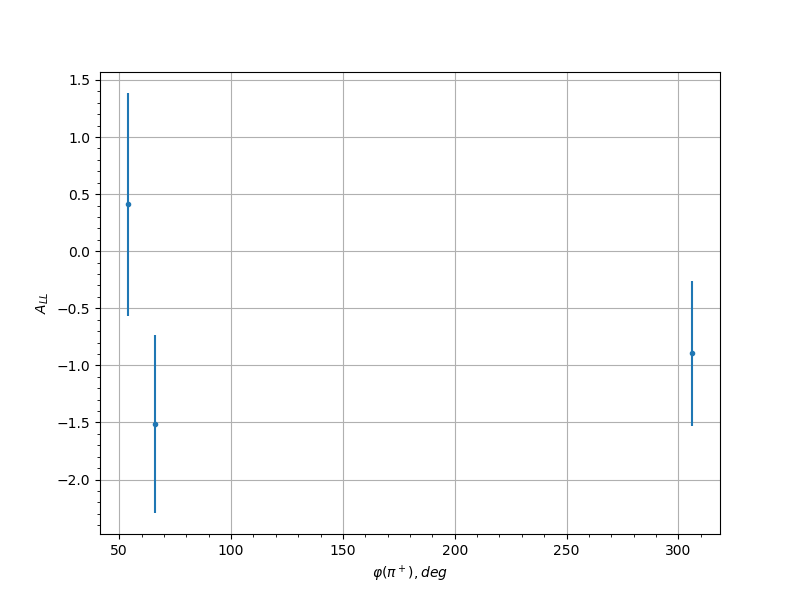

Measurement data
cos(θπ+) φ(π+), [deg] ALL uncertainty syst. uncert.
0.05 54.0 0.4098 0.9761 0.0422
0.05 66.0 -1.5112 0.7815 0.1136
0.05 306.0 -0.8956 0.6365 0.0715
0.15 54.0 0.4427 0.6216 0.0439
0.15 66.0 0.2026 0.6304 0.0334
0.15 294.0 0.5198 0.5833 0.0482
0.15 306.0 0.1824 0.5839 0.0328
0.15 318.0 -0.7576 0.7756 0.0626
0.25 54.0 0.4584 0.7003 0.0448
0.25 66.0 -0.8306 0.5522 0.0673
0.25 78.0 0.0341 0.6575 0.0301
0.25 282.0 2.4818 2.4818 0.1824
0.25 294.0 -0.4525 0.4902 0.0445
0.25 306.0 -0.9814 0.5086 0.0772
0.35 54.0 1.3067 0.6172 0.0994
0.35 66.0 0.5254 0.4433 0.0485
0.35 78.0 0.5334 0.5822 0.0489
0.35 282.0 -0.6133 0.6165 0.0536
0.35 294.0 -0.4043 0.4847 0.0419
0.35 306.0 0.4978 0.5551 0.0469
0.45 54.0 0.4736 0.7599 0.0456
0.45 66.0 0.4956 0.5005 0.0468
0.45 78.0 -0.4605 0.5917 0.0449
0.45 282.0 0.7938 0.633 0.0649
0.45 294.0 -0.2284 0.4916 0.0343
0.45 306.0 -0.806 0.745 0.0657
0.55 54.0 0.6144 0.6433 0.0537
0.55 66.0 0.4875 0.6393 0.0464
0.55 78.0 1.5321 0.6939 0.1151
0.55 90.0 0.6916 0.5429 0.0584
0.55 102.0 0.1129 0.8055 0.0311
0.55 258.0 -0.6762 0.7215 0.0575
0.55 270.0 0.473 0.5485 0.0456
0.55 282.0 1.0 0.5047 0.0785
0.55 294.0 -0.1293 0.6873 0.0314
0.65 66.0 0.5682 0.7296 0.051
0.65 78.0 0.1312 0.5679 0.0315
0.65 90.0 0.2488 0.5202 0.035
0.65 102.0 -0.1834 0.4741 0.0328
0.65 114.0 -0.0013 0.6134 0.03
0.65 246.0 -0.3527 0.5666 0.0394
0.65 258.0 0.085 0.4876 0.0306
0.65 270.0 0.0263 0.4457 0.0301
0.65 282.0 0.6744 0.535 0.0574
0.65 294.0 -0.8942 0.7446 0.0714
0.75 66.0 -0.3448 0.8462 0.0391
0.75 78.0 0.4808 0.4145 0.046
0.75 90.0 0.1478 0.3798 0.0319
0.75 102.0 -0.3205 0.3605 0.0379
0.75 114.0 1.366 0.3996 0.1035
0.75 126.0 -0.2481 0.4921 0.035
0.75 138.0 0.2465 0.8037 0.0349
0.75 222.0 0.4049 0.7187 0.042
0.75 234.0 0.9791 0.4557 0.0771
0.75 246.0 0.6944 0.4055 0.0586
0.75 258.0 0.3231 0.3828 0.0381
0.75 270.0 0.3241 0.3589 0.0381
0.75 282.0 0.4341 0.4295 0.0435
0.75 294.0 0.3229 0.5333 0.0381
0.85 66.0 0.1375 0.5777 0.0316
0.85 78.0 -0.2777 0.5364 0.0361
0.85 90.0 0.1032 0.3634 0.0309
0.85 102.0 0.7163 0.3346 0.06
0.85 114.0 0.9708 0.3612 0.0765
0.85 126.0 0.09 0.3943 0.0307
0.85 138.0 -0.2885 0.4605 0.0366
0.85 150.0 1.5534 0.5694 0.1166
0.85 162.0 2.2632 0.6671 0.1668
0.85 186.0 0.8475 0.8351 0.0684
0.85 198.0 0.8455 0.7712 0.0683
0.85 210.0 0.8658 0.5907 0.0696
0.85 222.0 0.247 0.4439 0.0349
0.85 234.0 -0.5569 0.3655 0.0503
0.85 246.0 0.2671 0.3419 0.0357
0.85 258.0 -0.8576 0.3425 0.069
0.85 270.0 0.529 0.3447 0.0487
0.85 282.0 0.4965 0.3276 0.0469
0.85 294.0 0.6524 0.3378 0.056
0.95 66.0 -0.3877 0.5483 0.0411
0.95 90.0 0.4152 0.5024 0.0425
0.95 102.0 0.2988 0.4976 0.037
0.95 114.0 0.422 0.4178 0.0429
0.95 126.0 0.3641 0.4308 0.04
0.95 138.0 -0.1612 0.4929 0.0322
0.95 150.0 0.2967 0.5769 0.0369
0.95 162.0 -0.3778 0.716 0.0406
0.95 174.0 1.1761 0.7438 0.0904
0.95 186.0 1.1649 0.614 0.0896
0.95 198.0 0.5434 0.6169 0.0495
0.95 210.0 0.4825 0.5631 0.0461
0.95 222.0 0.0604 0.457 0.0303
0.95 234.0 0.7995 0.3732 0.0653
0.95 246.0 -0.1984 0.3832 0.0333
0.95 258.0 0.3112 0.3773 0.0375
0.95 270.0 -0.4044 0.3383 0.042
0.95 282.0 -0.2715 0.3232 0.0359
0.95 294.0 0.9679 0.3408 0.0763
0.95 306.0 0.3734 0.5496 0.0404
