Measurement E151M2248

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALL
εL: 0.3016
Q2: 0.1715 GeV2
W: 1445.0 GeV
Ebeam: 2.999 GeV
ε: 0.9499

Slice: cos(θπ+) =

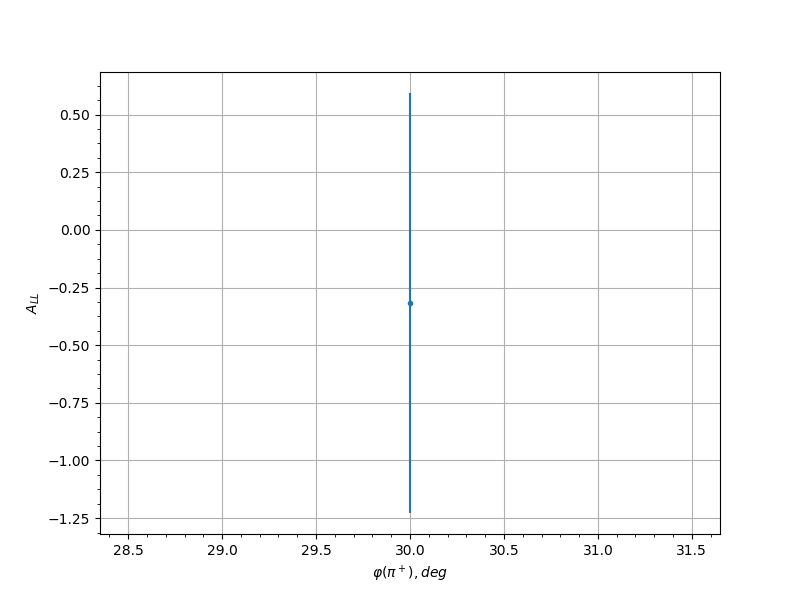

Measurement data
cos(θπ+) φ(π+), [deg] ALL uncertainty
-0.15 30.0 -0.3172 0.9106
-0.05 54.0 0.0195 0.9536
0.05 54.0 -0.5257 0.8386
0.05 66.0 1.1375 0.6943
0.05 294.0 -0.6057 0.8264
0.05 306.0 -0.4524 0.7512
0.15 54.0 -0.2773 0.5195
0.15 66.0 1.3398 0.5947
0.15 78.0 0.5557 0.8917
0.15 282.0 -1.1228 0.9695
0.15 294.0 1.4932 0.4931
0.15 306.0 -0.9452 0.5158
0.25 54.0 -0.7877 0.6071
0.25 66.0 -0.1579 0.4895
0.25 78.0 0.3542 0.5577
0.25 282.0 -0.0804 0.5498
0.25 294.0 0.1146 0.454
0.25 306.0 -0.1287 0.5306
0.35 54.0 -0.7283 0.7382
0.35 66.0 0.2597 0.4762
0.35 78.0 0.3677 0.5182
0.35 90.0 -1.4401 0.8001
0.35 270.0 1.1482 0.6481
0.35 282.0 0.3578 0.4565
0.35 294.0 -0.4503 0.5008
0.35 306.0 -0.6697 0.6378
0.45 54.0 -0.974 0.5719
0.45 66.0 0.7969 0.5455
0.45 78.0 -0.0923 0.6072
0.45 90.0 0.8547 0.7778
0.45 102.0 0.8509 0.6527
0.45 270.0 0.008 0.5201
0.45 282.0 0.7294 0.4512
0.45 294.0 0.0838 0.421
0.45 306.0 -0.4529 0.6886
0.55 54.0 -0.1761 0.5899
0.55 66.0 -0.4012 0.659
0.55 78.0 0.2405 0.5635
0.55 90.0 -0.1291 0.5427
0.55 102.0 0.9621 0.4475
0.55 114.0 0.6037 0.4909
0.55 126.0 0.0835 0.9724
0.55 246.0 0.5381 0.9016
0.55 258.0 1.2332 0.6354
0.55 270.0 0.0755 0.5669
0.55 282.0 0.2349 0.4495
0.55 294.0 1.5472 0.5224
0.55 306.0 -0.486 0.4449
0.65 54.0 -1.5688 0.6554
0.65 66.0 2.3275 0.5722
0.65 78.0 0.5469 0.5054
0.65 90.0 -0.052 0.381
0.65 102.0 0.0852 0.3687
0.65 114.0 -0.0017 0.3615
0.65 126.0 0.4011 0.4961
0.65 138.0 0.1254 0.7214
0.65 222.0 0.3785 0.8201
0.65 234.0 -0.0821 0.5725
0.65 246.0 -0.0186 0.4737
0.65 258.0 -0.1345 0.4348
0.65 270.0 -0.0254 0.4771
0.65 282.0 0.5902 0.5258
0.65 294.0 -1.657 0.6342
0.65 306.0 -0.1407 0.5631
0.75 66.0 -0.2196 0.5682
0.75 78.0 -0.4472 0.5343
0.75 90.0 0.0578 0.3559
0.75 102.0 0.3936 0.3226
0.75 114.0 -0.4052 0.3699
0.75 126.0 -0.0694 0.4255
0.75 138.0 0.2985 0.54
0.75 150.0 -0.2728 0.7331
0.75 186.0 -0.907 0.8662
0.75 198.0 0.3533 0.7994
0.75 210.0 0.5195 0.5663
0.75 222.0 0.1468 0.4949
0.75 234.0 0.6788 0.4118
0.75 246.0 0.4641 0.3557
0.75 258.0 0.3562 0.3893
0.75 270.0 0.2747 0.4624
0.75 282.0 0.6689 0.5609
0.75 294.0 1.1874 0.6195
0.85 66.0 0.3 0.3839
0.85 78.0 -0.3677 0.4696
0.85 90.0 0.2434 0.5195
0.85 102.0 -0.1129 0.341
0.85 114.0 -0.4007 0.3849
0.85 126.0 -0.4854 0.3992
0.85 138.0 -0.206 0.5277
0.85 150.0 1.4376 0.601
0.85 162.0 1.3975 0.8713
0.85 174.0 -1.2415 0.8418
0.85 186.0 0.9938 0.709
0.85 198.0 -0.5609 0.655
0.85 210.0 0.3031 0.5391
0.85 222.0 0.7009 0.3972
0.85 234.0 -0.3518 0.3936
0.85 246.0 0.0263 0.3374
0.85 258.0 0.2754 0.3227
0.85 270.0 0.3606 0.3386
0.85 282.0 -0.3417 0.3901
0.85 294.0 -0.1887 0.455
0.95 66.0 -0.136 0.5198
0.95 78.0 -0.866 0.4527
0.95 90.0 -0.7845 0.704
0.95 102.0 -0.4608 0.6625
0.95 114.0 -0.2069 0.5583
0.95 126.0 0.3021 0.6007
0.95 138.0 0.5361 0.6932
0.95 150.0 0.8706 0.8687
0.95 162.0 0.9262 0.7629
0.95 174.0 0.0648 0.7775
0.95 186.0 0.3399 0.9578
0.95 198.0 0.9336 0.5703
0.95 210.0 1.3204 0.5312
0.95 222.0 0.917 0.4751
0.95 234.0 0.4837 0.4
0.95 246.0 0.7904 0.3735
0.95 258.0 0.0059 0.4089
0.95 270.0 -0.1022 0.3247
0.95 282.0 0.1887 0.3139
0.95 294.0 -0.2507 0.3428
0.95 306.0 2.0613 0.4582
