Measurement E151M2275

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALL
εL: 0.3361
Q2: 0.2915 GeV2
W: 1505.0 GeV
Ebeam: 2.999 GeV
ε: 0.9198

Slice: cos(θπ+) =

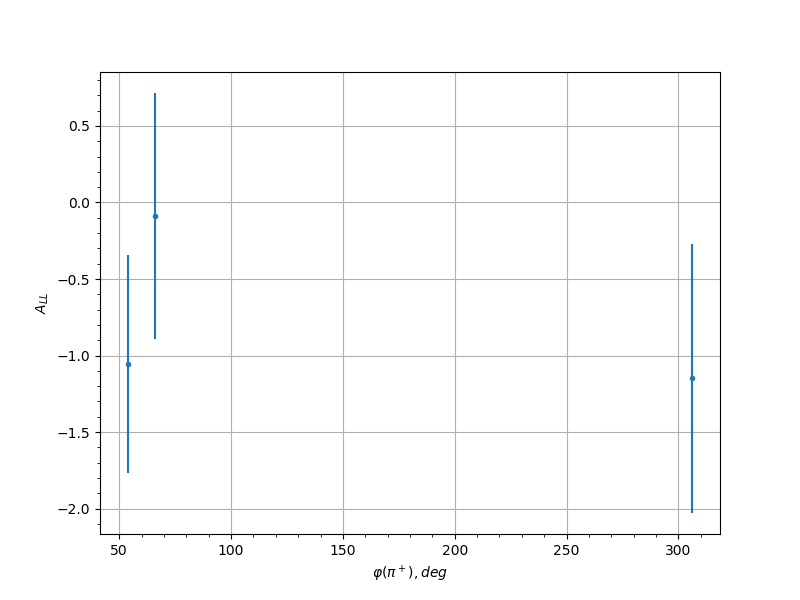

Measurement data
cos(θπ+) φ(π+), [deg] ALL uncertainty syst. uncert.
0.05 54.0 -1.0563 0.7137 0.0823
0.05 66.0 -0.0887 0.8043 0.0307
0.05 306.0 -1.1498 0.8795 0.0886
0.15 54.0 -0.4748 0.7985 0.0457
0.15 66.0 0.2676 0.6402 0.0357
0.15 282.0 -0.552 0.7763 0.05
0.15 294.0 0.0039 0.7032 0.03
0.15 306.0 -0.6878 0.8317 0.0582
0.25 54.0 0.0091 0.8256 0.03
0.25 66.0 -1.1529 0.6526 0.0888
0.25 282.0 0.9484 0.6961 0.075
0.25 294.0 -0.5399 0.656 0.0493
0.25 306.0 -0.3271 0.6282 0.0382
0.35 66.0 -0.274 0.6996 0.036
0.35 270.0 -1.4042 0.6794 0.1061
0.35 282.0 -0.0861 0.5862 0.0306
0.35 294.0 0.5513 0.6211 0.05
0.45 78.0 -0.2659 0.8783 0.0357
0.45 90.0 -0.7418 0.8283 0.0616
0.45 102.0 -0.1659 0.7032 0.0323
0.45 114.0 0.6459 0.8219 0.0556
0.45 270.0 -0.2898 0.8555 0.0366
0.45 282.0 1.3475 0.6889 0.1022
0.45 294.0 0.0238 0.7538 0.03
0.45 306.0 -0.313 0.7315 0.0376
0.55 54.0 0.8942 0.8767 0.0714
0.55 78.0 0.521 0.7382 0.0482
0.55 90.0 1.186 0.5444 0.0911
0.55 102.0 -0.7859 0.5896 0.0644
0.55 114.0 1.0183 0.5527 0.0797
0.55 126.0 1.2703 0.9189 0.0969
0.55 258.0 -0.7555 0.8403 0.0625
0.55 270.0 0.2652 0.7486 0.0356
0.55 282.0 0.1471 0.7662 0.0318
0.55 294.0 -0.1009 0.8658 0.0309
0.55 306.0 0.4317 0.6695 0.0434
0.65 78.0 0.3067 0.7351 0.0373
0.65 90.0 0.8756 0.507 0.0702
0.65 102.0 -0.5034 0.5674 0.0473
0.65 114.0 1.1955 0.5313 0.0917
0.65 126.0 1.3075 0.6012 0.0994
0.65 234.0 -0.019 0.8516 0.03
0.65 246.0 0.1364 0.5942 0.0316
0.65 258.0 0.038 0.6906 0.0301
0.65 270.0 -0.5216 0.655 0.0483
0.65 294.0 -0.0671 0.8363 0.0304
0.65 306.0 0.2592 0.7296 0.0354
0.75 54.0 0.5213 0.7264 0.0483
0.75 66.0 -0.63 0.7003 0.0547
0.75 78.0 0.5031 0.7752 0.0472
0.75 90.0 -0.2614 0.4612 0.0355
0.75 102.0 -0.9059 0.4981 0.0722
0.75 114.0 -0.2227 0.4995 0.0341
0.75 126.0 0.5081 0.6805 0.0475
0.75 138.0 -0.6116 0.8069 0.0535
0.75 198.0 -1.3553 0.7521 0.1028
0.75 210.0 0.015 0.6891 0.03
0.75 222.0 0.4181 0.8198 0.0427
0.75 234.0 0.7528 0.5104 0.0623
0.75 246.0 0.1399 0.5575 0.0317
0.75 258.0 1.2089 0.5587 0.0926
0.75 270.0 1.1166 0.5339 0.0863
0.75 282.0 1.5038 0.8098 0.1131
0.85 54.0 0.1137 0.6345 0.0311
0.85 66.0 -0.4902 0.4907 0.0465
0.85 78.0 0.461 0.6639 0.0449
0.85 90.0 -0.5878 0.8639 0.0521
0.85 102.0 -0.1466 0.5112 0.0318
0.85 114.0 0.7915 0.5127 0.0648
0.85 126.0 -0.3232 0.6189 0.0381
0.85 150.0 -0.4043 0.9217 0.0419
0.85 186.0 -0.4922 0.8453 0.0466
0.85 198.0 -0.3266 0.7652 0.0382
0.85 210.0 0.2943 0.5914 0.0368
0.85 222.0 -0.4936 0.5902 0.0467
0.85 234.0 -0.2061 0.5022 0.0335
0.85 246.0 -0.605 0.4606 0.0531
0.85 258.0 -0.4853 0.4498 0.0462
0.85 270.0 -0.1397 0.4423 0.0317
0.85 282.0 -0.0711 0.4723 0.0304
0.85 294.0 -0.6521 0.5122 0.056
0.85 306.0 -0.5104 0.802 0.0476
0.95 54.0 0.1795 0.7761 0.0327
0.95 66.0 0.9745 0.627 0.0768
0.95 78.0 -0.9485 0.6872 0.075
0.95 114.0 0.4632 0.7123 0.045
0.95 198.0 1.322 0.703 0.1004
0.95 210.0 0.651 0.9034 0.0559
0.95 222.0 -0.5149 0.6462 0.0479
0.95 234.0 0.5764 0.5731 0.0514
0.95 246.0 0.8249 0.6931 0.0669
0.95 258.0 0.0601 0.5699 0.0303
0.95 270.0 -0.809 0.4494 0.0659
0.95 282.0 -0.3939 0.4407 0.0414
0.95 294.0 0.0951 0.4397 0.0308
0.95 306.0 0.3224 0.4349 0.038
0.95 318.0 0.1176 0.5412 0.0312
0.95 330.0 0.1261 0.7052 0.0314
