Measurement E151M2308

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALL
εL: 0.123
Q2: 0.1205 GeV2
W: 1595.0 GeV
Ebeam: 2.999 GeV
ε: 0.9227

Slice: cos(θπ+) =

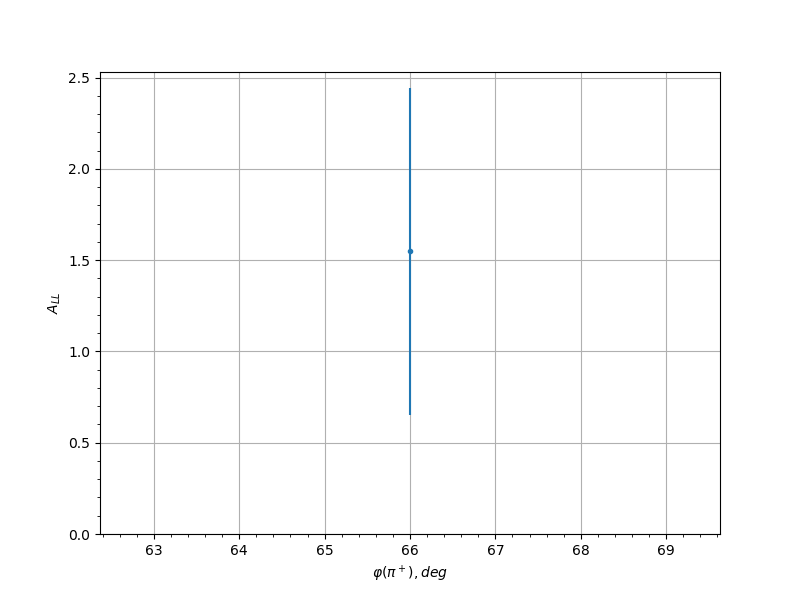

Measurement data
cos(θπ+) φ(π+), [deg] ALL uncertainty
0.15 66.0 1.5478 0.8934
0.25 54.0 0.3205 0.9879
0.25 66.0 1.0013 0.7607
0.25 78.0 1.8043 0.7671
0.25 270.0 0.6229 0.8086
0.25 282.0 1.0455 0.6927
0.25 294.0 0.589 0.8066
0.35 54.0 -0.1217 1.061
0.35 66.0 0.3425 0.7454
0.35 78.0 0.4004 1.0029
0.35 90.0 -1.2647 0.7722
0.35 114.0 -0.8939 1.0177
0.35 270.0 -0.194 0.7262
0.35 282.0 -1.1751 0.5838
0.35 294.0 -0.3468 0.7402
0.45 66.0 -0.7059 0.7346
0.45 78.0 -0.3844 0.923
0.45 90.0 -1.3963 0.8136
0.45 102.0 -0.8801 0.7969
0.45 114.0 -0.5558 0.742
0.45 126.0 0.4078 0.8005
0.45 258.0 -1.4274 0.6728
0.45 270.0 -0.8002 0.608
0.45 282.0 0.4151 0.5491
0.45 294.0 0.1579 0.7765
0.55 54.0 -0.3894 0.8427
0.55 66.0 -1.4642 0.8432
0.55 78.0 0.655 1.0028
0.55 90.0 -0.744 0.7259
0.55 102.0 -1.0991 0.6056
0.55 114.0 -0.926 0.6123
0.55 126.0 -1.5792 0.6575
0.55 138.0 -0.3396 0.7342
0.55 150.0 -0.0846 0.9712
0.55 186.0 -2.3337 0.8154
0.55 198.0 -1.1272 0.9199
0.55 210.0 0.3098 0.8672
0.55 222.0 0.4866 0.7938
0.55 234.0 0.8968 0.7053
0.55 246.0 -0.4985 0.7124
0.55 258.0 -1.3435 0.6304
0.55 270.0 -0.1081 0.6098
0.55 282.0 -0.4985 0.5943
0.55 294.0 1.0705 0.848
0.55 306.0 -0.8218 0.8073
0.65 54.0 1.251 0.6348
0.65 66.0 0.3811 0.9375
0.65 78.0 1.7191 0.8198
0.65 90.0 -0.4687 0.6066
0.65 102.0 -0.5901 0.5106
0.65 114.0 0.5822 0.4563
0.65 126.0 0.2496 0.6066
0.65 138.0 0.5088 0.6196
0.65 162.0 -0.3192 1.0495
0.65 174.0 0.5256 1.0666
0.65 186.0 0.7351 0.848
0.65 198.0 0.1733 0.8132
0.65 210.0 -0.1296 0.6572
0.65 222.0 0.5052 0.601
0.65 234.0 1.1446 0.613
0.65 246.0 0.2397 0.6699
0.65 258.0 -0.6065 0.6092
0.65 270.0 -0.5524 0.7614
0.65 282.0 -0.6872 0.6046
0.65 294.0 -0.2679 0.5282
0.65 306.0 1.2586 0.6514
0.75 66.0 -1.0532 1.0156
0.75 78.0 1.1379 0.7554
0.75 90.0 0.2459 0.6668
0.75 102.0 -0.4862 0.6391
0.75 114.0 -0.6079 0.4796
0.75 126.0 0.4119 0.5409
0.75 138.0 -0.9703 0.704
0.75 150.0 0.3446 0.8179
0.75 162.0 -0.4121 0.9335
0.75 174.0 -0.0372 0.9006
0.75 186.0 -1.3233 0.7411
0.75 198.0 -0.1387 0.6374
0.75 210.0 -0.1144 0.575
0.75 222.0 -0.1995 0.5148
0.75 234.0 0.0355 0.5861
0.75 246.0 -0.3205 0.5296
0.75 258.0 0.9954 0.6073
0.75 270.0 -0.2897 0.6631
0.75 282.0 0.1489 0.5306
0.75 294.0 -0.0205 0.4835
0.85 78.0 0.346 0.5069
0.85 90.0 0.3551 0.4614
0.85 102.0 -0.2186 0.5067
0.85 114.0 -0.0768 0.6862
0.85 126.0 -0.2737 0.8406
0.85 138.0 1.5663 0.7926
0.85 150.0 0.6026 0.8504
0.85 162.0 -0.1987 0.938
0.85 174.0 1.1177 0.7846
0.85 186.0 -0.3919 0.699
0.85 198.0 -0.4493 0.7218
0.85 210.0 -0.1928 0.5508
0.85 222.0 0.522 0.4927
0.85 234.0 -0.6603 0.435
0.85 246.0 0.001 0.4976
0.85 258.0 0.4843 0.5537
0.85 270.0 0.0829 0.707
0.85 282.0 -0.7967 0.5859
0.95 90.0 0.7199 0.5327
0.95 102.0 -1.1626 0.6647
0.95 114.0 -1.0579 0.6431
0.95 126.0 0.2537 0.985
0.95 174.0 -1.1202 0.7957
0.95 186.0 0.2322 0.7917
0.95 198.0 -0.55 0.7631
0.95 210.0 1.8907 0.625
0.95 222.0 0.8577 0.5222
0.95 234.0 0.0204 0.4776
0.95 246.0 -0.118 0.4832
0.95 258.0 -0.6022 0.4907
0.95 270.0 0.6621 0.5341
