Measurement E151M2330
| Experiment: | EG4 | |
|---|---|---|
| Year: | 2016 | |
| Spokesperson: | Xiaochao Zheng | |
| Reaction: | ep → π+n | |
| Polarization: | beam (longitudinal), target (longitudinal) | |
| Quantity: | ALL | |
| εL: | 0.0717 | |
| Q2: | 0.0844 GeV2 | |
| W: | 1655.0 GeV | |
| Ebeam: | 2.999 GeV | |
| ε: | 0.9103 | |

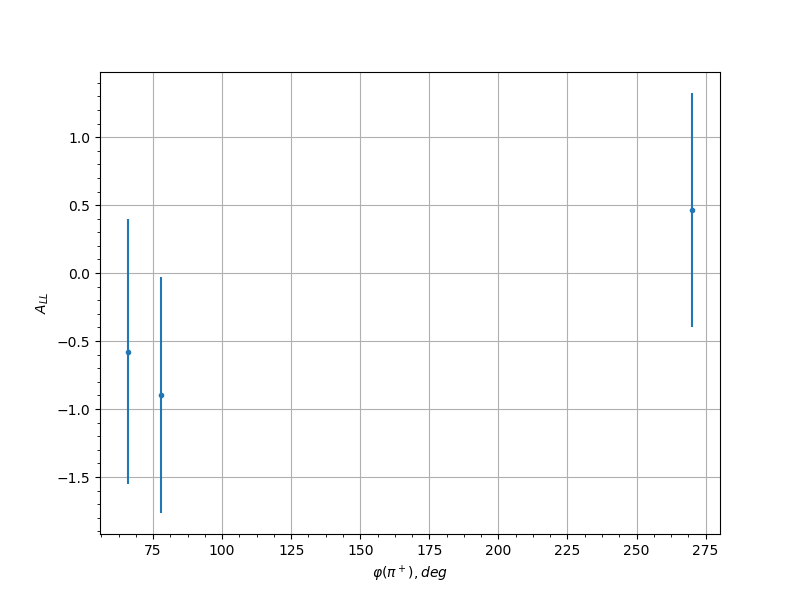

| cos(θπ+) | φ(π+), [deg] | ALL | uncertainty |
|---|---|---|---|
| 0.35 | 66.0 | -0.5791 | 0.9745 |
| 0.35 | 78.0 | -0.8977 | 0.8668 |
| 0.35 | 270.0 | 0.4626 | 0.862 |
| 0.45 | 78.0 | 0.3738 | 0.9515 |
| 0.45 | 102.0 | -2.4119 | 0.6745 |
| 0.45 | 114.0 | 0.4377 | 0.8357 |
| 0.45 | 126.0 | 1.7144 | 0.7315 |
| 0.45 | 258.0 | -0.5587 | 0.7673 |
| 0.45 | 270.0 | -1.1347 | 0.646 |
| 0.45 | 282.0 | -1.8591 | 0.6705 |
| 0.45 | 294.0 | -1.09 | 0.8102 |
| 0.55 | 66.0 | 0.5015 | 0.8226 |
| 0.55 | 102.0 | -0.4716 | 0.7715 |
| 0.55 | 114.0 | -0.3512 | 0.6717 |
| 0.55 | 126.0 | -1.8161 | 0.6985 |
| 0.55 | 138.0 | -2.6809 | 2.6809 |
| 0.55 | 198.0 | -0.5167 | 0.9918 |
| 0.55 | 210.0 | -0.5291 | 0.8272 |
| 0.55 | 222.0 | 0.3526 | 0.8193 |
| 0.55 | 234.0 | 0.3043 | 1.0098 |
| 0.55 | 258.0 | -1.4451 | 0.706 |
| 0.55 | 270.0 | 0.3272 | 0.6575 |
| 0.55 | 282.0 | -0.8314 | 0.8479 |
| 0.65 | 42.0 | -2.5737 | 2.5737 |
| 0.65 | 54.0 | -0.0706 | 0.9892 |
| 0.65 | 66.0 | -0.0449 | 0.6915 |
| 0.65 | 102.0 | -0.5341 | 0.8239 |
| 0.65 | 114.0 | -0.993 | 0.6815 |
| 0.65 | 126.0 | 0.2716 | 0.6292 |
| 0.65 | 138.0 | 0.7798 | 0.7121 |
| 0.65 | 186.0 | 0.0581 | 0.9558 |
| 0.65 | 198.0 | -1.2765 | 0.7965 |
| 0.65 | 210.0 | 1.2359 | 0.704 |
| 0.65 | 222.0 | 0.1867 | 0.6984 |
| 0.65 | 234.0 | -0.1737 | 0.8941 |
| 0.65 | 282.0 | 0.6653 | 0.6823 |
| 0.65 | 294.0 | -0.5515 | 0.8336 |
| 0.75 | 90.0 | -0.7217 | 0.7973 |
| 0.75 | 114.0 | 0.5378 | 0.7214 |
| 0.75 | 126.0 | -1.1518 | 0.6282 |
| 0.75 | 138.0 | 1.0277 | 0.6735 |
| 0.75 | 174.0 | -2.3764 | 0.8269 |
| 0.75 | 186.0 | -0.1309 | 0.8136 |
| 0.75 | 198.0 | 0.3813 | 0.7128 |
| 0.75 | 210.0 | 0.3692 | 0.6916 |
| 0.75 | 222.0 | -0.2733 | 0.5593 |
| 0.75 | 234.0 | -0.1782 | 0.7317 |
| 0.75 | 270.0 | -0.18 | 0.8193 |
| 0.75 | 282.0 | 0.3826 | 0.6376 |
| 0.75 | 294.0 | -0.7155 | 0.6895 |
| 0.85 | 90.0 | -0.0393 | 0.6798 |
| 0.85 | 102.0 | 0.6247 | 0.5739 |
| 0.85 | 114.0 | 0.6644 | 0.6884 |
| 0.85 | 126.0 | -0.553 | 0.8763 |
| 0.85 | 186.0 | 0.3778 | 0.7245 |
| 0.85 | 198.0 | 0.5066 | 0.6741 |
| 0.85 | 210.0 | -0.9189 | 0.6623 |
| 0.85 | 222.0 | -0.5607 | 0.5626 |
| 0.85 | 234.0 | 0.0572 | 0.5586 |
| 0.85 | 246.0 | -0.6629 | 0.8981 |
| 0.85 | 270.0 | 0.6629 | 0.9767 |
| 0.85 | 282.0 | -0.4908 | 0.8159 |
| 0.95 | 102.0 | -2.3166 | 0.6445 |
| 0.95 | 114.0 | -1.3657 | 0.8512 |
| 0.95 | 198.0 | 0.5416 | 0.6952 |
| 0.95 | 210.0 | 0.7393 | 0.7292 |
| 0.95 | 222.0 | 0.2812 | 0.8314 |
| 0.95 | 234.0 | 0.6724 | 0.7061 |
| 0.95 | 246.0 | -0.2205 | 0.7443 |
Experiment comment:
