Measurement E151M2560

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALU
εL: 0.1314
Q2: 0.0496 GeV2
W: 1355.0 GeV
Ebeam: 1.0539 GeV
ε: 0.7603

Slice: cos(θπ+) =

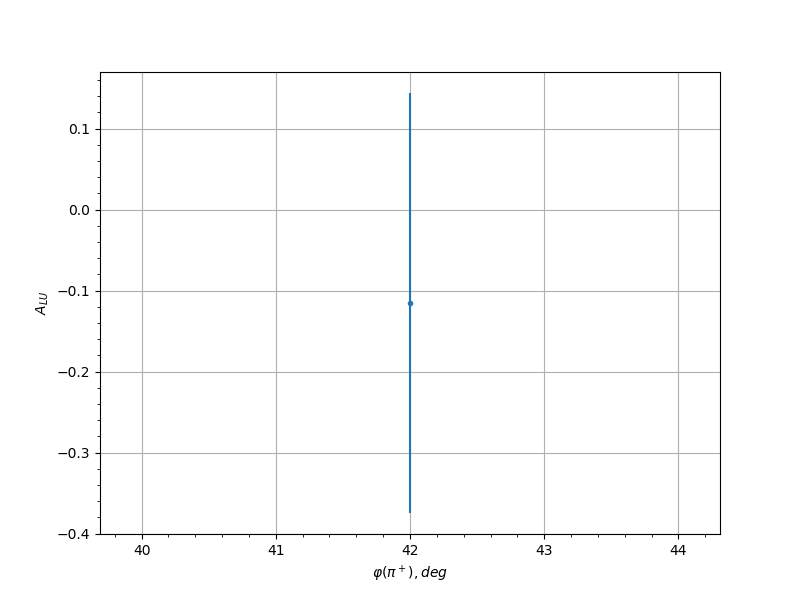

Measurement data
cos(θπ+) φ(π+), [deg] ALU uncertainty syst. uncert.
0.15 42.0 -0.1153 0.2592 0.0301
0.25 42.0 -0.108 0.2243 0.0301
0.35 30.0 -0.1011 0.2308 0.0301
0.35 42.0 -0.1173 0.2016 0.0301
0.45 42.0 0.336 0.181 0.0307
0.55 234.0 0.2269 0.2099 0.0303
0.55 246.0 -0.1176 0.1912 0.0301
0.55 258.0 -0.0922 0.1658 0.0301
0.55 270.0 -0.0576 0.2559 0.03
0.65 138.0 -0.1483 0.2165 0.0301
0.65 150.0 0.3131 0.2247 0.0306
0.65 222.0 0.0153 0.2026 0.03
0.65 234.0 0.2461 0.1491 0.0304
0.65 246.0 0.0392 0.1576 0.03
0.65 258.0 0.0584 0.1423 0.03
0.65 270.0 -0.0178 0.1662 0.03
0.75 126.0 -0.0831 0.2509 0.03
0.75 138.0 -0.0096 0.1894 0.03
0.75 150.0 -0.0194 0.1692 0.03
0.75 162.0 -0.2564 0.1998 0.0304
0.75 174.0 0.342 0.231 0.0308
0.75 222.0 -0.0548 0.2028 0.03
0.75 234.0 0.0206 0.164 0.03
0.75 246.0 -0.0949 0.1343 0.0301
0.75 258.0 -0.0573 0.1424 0.03
0.75 270.0 -0.1653 0.1828 0.0302
0.85 138.0 0.0588 0.1883 0.03
0.85 150.0 0.4357 0.2094 0.0312
0.85 162.0 0.3553 0.1942 0.0308
0.85 174.0 0.6363 0.1667 0.0326
0.85 186.0 0.0034 0.2346 0.03
0.85 222.0 -0.2163 0.1958 0.0303
0.85 234.0 -0.15 0.1909 0.0301
0.85 246.0 -0.0471 0.1446 0.03
0.85 258.0 -0.08 0.1423 0.03
0.85 270.0 -0.0279 0.1521 0.03
0.85 282.0 -0.2085 0.2275 0.0303
0.95 114.0 0.4753 0.2215 0.0315
0.95 126.0 0.037 0.2092 0.03
0.95 246.0 0.2292 0.2348 0.0303
0.95 258.0 0.1677 0.1846 0.0302
