Measurement E151M2803

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALU
εL: 0.134
Q2: 0.0844 GeV2
W: 1445.0 GeV
Ebeam: 1.3383 GeV
ε: 0.7524

Slice: cos(θπ+) =

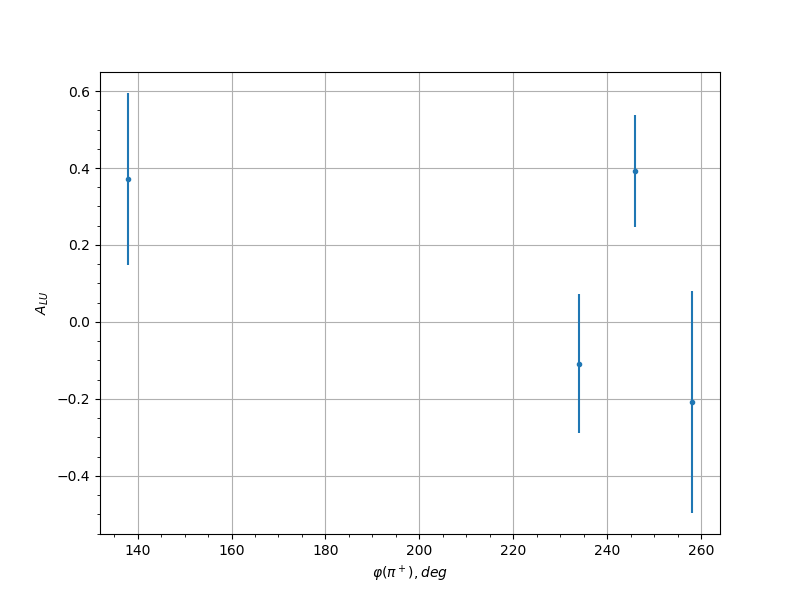

Measurement data
cos(θπ+) φ(π+), [deg] ALU uncertainty syst. uncert.
0.55 138.0 0.3716 0.2234 0.0309
0.55 234.0 -0.1093 0.1807 0.0302
0.55 246.0 0.3916 0.1461 0.0314
0.65 126.0 -0.0341 0.2387 0.03
0.65 138.0 0.1076 0.2511 0.0301
0.65 150.0 0.3633 0.2149 0.0309
0.65 162.0 0.1246 0.2579 0.0301
0.65 222.0 0.1383 0.2481 0.0301
0.65 234.0 0.0284 0.219 0.03
0.65 246.0 -0.2293 0.2085 0.0303
0.65 258.0 -0.0063 0.2399 0.03
0.75 114.0 0.111 0.2224 0.0301
0.75 126.0 0.043 0.2486 0.03
0.75 138.0 0.3484 0.2012 0.0308
0.75 150.0 -0.3186 0.2432 0.0307
0.75 222.0 0.0444 0.2511 0.03
0.75 234.0 -0.1616 0.2162 0.0302
0.75 246.0 -0.2262 0.2559 0.0303
0.75 258.0 0.2497 0.2018 0.0304
0.75 270.0 -0.0276 0.2591 0.03
0.85 114.0 0.0746 0.2294 0.03
0.85 126.0 0.1243 0.2656 0.0301
0.85 138.0 0.1057 0.223 0.0301
0.85 150.0 0.0987 0.2631 0.0301
0.85 222.0 -0.0151 0.252 0.03
0.85 234.0 0.2247 0.2032 0.0303
0.85 246.0 -0.0345 0.2047 0.03
0.85 258.0 0.0761 0.1908 0.03
0.85 270.0 -0.1883 0.1952 0.0302
0.95 102.0 0.297 0.2401 0.0306
0.95 234.0 -0.2465 0.2282 0.0304
0.95 246.0 0.029 0.2315 0.03
0.95 258.0 0.0748 0.2152 0.03
0.95 270.0 -0.3268 0.2077 0.0307
0.95 282.0 -0.2366 0.2641 0.0304
0.55 258.0 -0.208 0.2887 0.0303
0.65 126.0 -0.2754 0.2823 0.0305
0.65 138.0 -0.0066 0.3422 0.03
0.65 222.0 -0.0204 0.3222 0.03
0.65 234.0 0.4114 0.2507 0.0311
0.65 246.0 -0.1207 0.273 0.0301
0.65 258.0 0.2128 0.2925 0.0303
0.75 114.0 -0.2608 0.3531 0.0305
0.75 126.0 -0.116 0.3108 0.0301
0.75 138.0 -0.3373 0.3108 0.0307
0.75 162.0 -0.223 0.3538 0.0303
0.75 222.0 0.5225 0.303 0.0318
0.75 234.0 0.2876 0.2686 0.0305
0.75 246.0 -0.3916 0.2861 0.031
0.75 258.0 -0.2036 0.2844 0.0303
0.75 270.0 -0.4006 0.3352 0.0311
0.85 138.0 0.1446 0.3435 0.0301
0.85 222.0 0.0596 0.3248 0.03
0.85 234.0 0.3724 0.2447 0.0309
0.85 246.0 -0.0828 0.2676 0.03
0.85 258.0 0.0459 0.272 0.03
0.85 270.0 -0.2539 0.2693 0.0304
0.95 102.0 -0.4996 0.3101 0.0316
0.95 114.0 0.7703 0.1925 0.0337
0.95 234.0 0.7046 0.1762 0.0331
0.95 246.0 0.2849 0.3201 0.0305
0.95 258.0 0.04 0.3066 0.03
0.95 270.0 0.8512 0.1876 0.0345
