Measurement E151M2840

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALU
εL: 0.0807
Q2: 0.0707 GeV2
W: 1505.0 GeV
Ebeam: 1.3383 GeV
ε: 0.6863

Slice: cos(θπ+) =

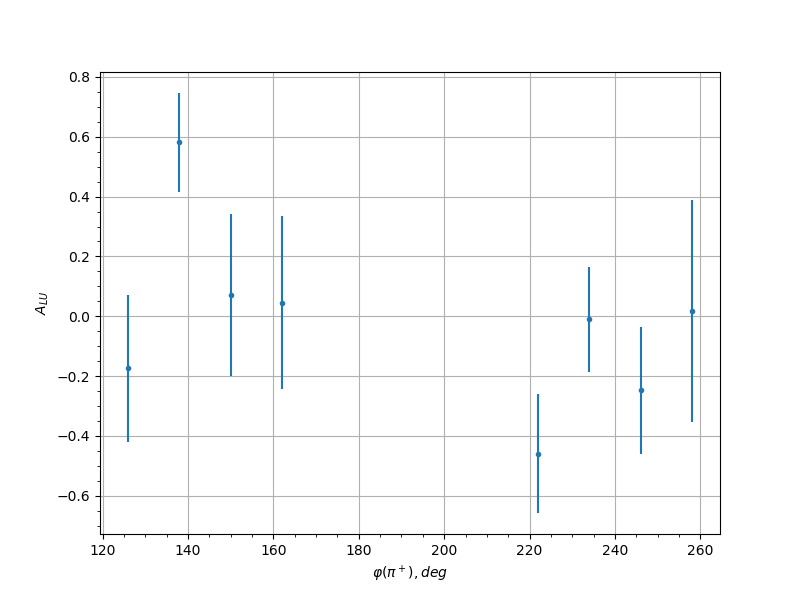

Measurement data
cos(θπ+) φ(π+), [deg] ALU uncertainty syst. uncert.
0.55 126.0 -0.1741 0.2469 0.0302
0.55 138.0 0.5812 0.1651 0.0322
0.55 150.0 0.0714 0.2716 0.03
0.55 162.0 0.0459 0.2886 0.03
0.55 222.0 -0.4593 0.1982 0.0315
0.55 234.0 -0.0104 0.1747 0.0307
0.55 246.0 -0.2472 0.2116 0.0306
0.65 126.0 -0.0572 0.2407 0.03
0.65 138.0 -0.0689 0.2247 0.03
0.65 150.0 0.0608 0.2628 0.03
0.65 210.0 -0.2216 0.251 0.0303
0.65 222.0 -0.2358 0.241 0.0304
0.65 234.0 -0.0433 0.2069 0.03
0.65 246.0 0.0702 0.1914 0.03
0.65 258.0 -0.1411 0.2758 0.0301
0.75 126.0 0.0701 0.2241 0.03
0.75 138.0 0.4148 0.1887 0.0311
0.75 150.0 0.1678 0.2418 0.0302
0.75 210.0 0.1062 0.2621 0.0301
0.75 222.0 0.0453 0.2313 0.03
0.75 234.0 -0.2267 0.1837 0.0303
0.75 246.0 0.1697 0.1988 0.0302
0.75 258.0 -0.1227 0.2259 0.0301
0.85 150.0 0.3061 0.2646 0.0306
0.85 222.0 -0.2981 0.2389 0.0306
0.85 234.0 -0.3446 0.2483 0.0308
0.85 246.0 -0.0987 0.1883 0.0301
0.85 258.0 -0.0974 0.255 0.0301
0.95 126.0 -0.3555 0.2316 0.0308
0.95 138.0 -0.1673 0.268 0.0302
0.95 246.0 0.4667 0.2476 0.0314
0.55 258.0 0.0168 0.3714 0.03
0.65 138.0 0.1705 0.3853 0.0302
0.65 150.0 0.3703 0.2777 0.0309
0.65 210.0 -0.4394 0.2998 0.0313
0.65 222.0 -0.0354 0.2816 0.03
0.65 234.0 0.6206 0.2744 0.0325
0.65 246.0 0.2989 0.3405 0.0306
0.75 138.0 -0.5202 0.2507 0.0318
0.75 150.0 -0.2417 0.3718 0.0304
0.75 222.0 -0.3795 0.2523 0.0309
0.75 234.0 -0.3604 0.33 0.0309
0.75 246.0 -0.2903 0.2098 0.0306
0.75 258.0 -0.0795 0.3252 0.03
0.85 126.0 -0.599 0.3035 0.0323
0.85 222.0 0.0525 0.3549 0.03
0.85 234.0 0.2112 0.2567 0.0303
0.85 246.0 -0.0804 0.2828 0.03
0.85 258.0 0.5857 0.2822 0.0322
0.95 246.0 -0.5584 0.2866 0.032
