Measurement E151M2842

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALU
εL: 0.1063
Q2: 0.101 GeV2
W: 1505.0 GeV
Ebeam: 1.3383 GeV
ε: 0.66

Slice: cos(θπ+) =

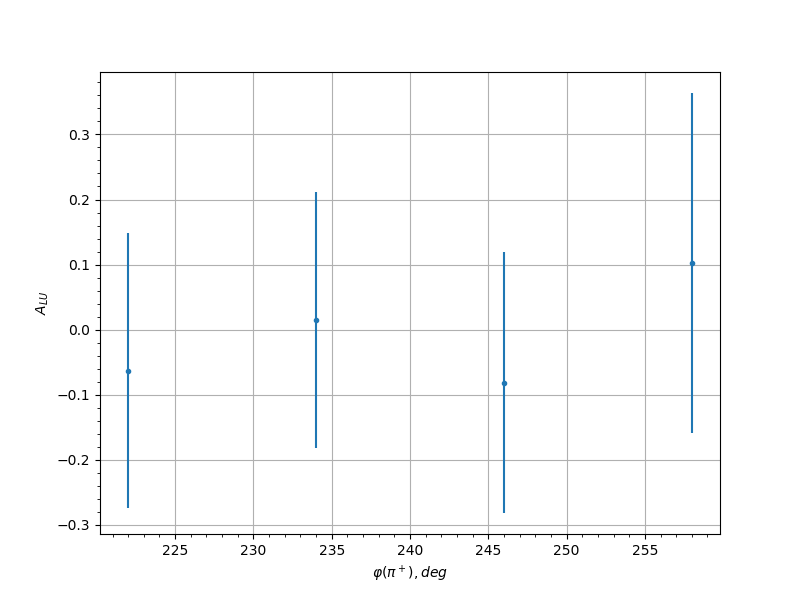

Measurement data
cos(θπ+) φ(π+), [deg] ALU uncertainty syst. uncert.
0.55 222.0 -0.0633 0.2114 0.0316
0.55 234.0 0.0148 0.1964 0.03
0.55 246.0 -0.0816 0.2002 0.0305
0.65 138.0 0.6922 0.2446 0.033
0.65 150.0 -0.1643 0.3985 0.0302
0.65 222.0 -0.785 0.1555 0.0339
0.65 234.0 0.5757 0.2846 0.0321
0.65 246.0 -0.1637 0.2831 0.0302
0.65 258.0 0.4592 0.2717 0.0314
0.75 138.0 0.1996 0.3413 0.0303
0.75 162.0 -0.0782 0.3925 0.03
0.75 222.0 0.2724 0.2841 0.0305
0.75 234.0 -0.1767 0.2876 0.0302
0.75 246.0 0.0224 0.3008 0.03
0.75 258.0 -0.0859 0.3244 0.03
0.85 222.0 -0.4028 0.2783 0.0311
0.85 234.0 -0.5641 0.2604 0.0321
0.85 246.0 0.4684 0.2375 0.0314
0.85 258.0 0.2067 0.2642 0.0303
0.95 102.0 0.6178 0.271 0.0324
0.95 114.0 0.4216 0.3922 0.0312
0.95 222.0 -0.0677 0.2973 0.03
0.95 234.0 -0.1675 0.3374 0.0302
0.95 246.0 -0.0228 0.3916 0.03
0.95 258.0 0.2311 0.3394 0.0304
0.55 258.0 0.1024 0.2613 0.0301
0.65 126.0 0.2614 0.2296 0.0305
0.65 138.0 -0.5557 0.2061 0.032
0.65 150.0 0.2257 0.2409 0.0303
0.65 222.0 -0.0593 0.2302 0.03
0.65 234.0 -0.1997 0.2035 0.0303
0.65 246.0 -0.2229 0.2255 0.0303
0.65 258.0 0.3349 0.2177 0.0307
0.75 126.0 -0.1678 0.2447 0.0302
0.75 138.0 -0.3892 0.2296 0.031
0.75 162.0 -0.0447 0.2853 0.03
0.75 222.0 -0.4209 0.2207 0.0312
0.75 234.0 0.2206 0.2277 0.0303
0.75 246.0 -0.1495 0.1845 0.0301
0.75 258.0 0.0905 0.2138 0.0301
0.85 222.0 -0.2259 0.2592 0.0303
0.85 234.0 -0.2911 0.2422 0.0306
0.85 246.0 -0.0148 0.2449 0.03
0.85 258.0 -0.0182 0.2194 0.03
0.85 270.0 0.1268 0.2484 0.0301
0.95 114.0 -0.2821 0.2466 0.0305
0.95 234.0 0.1603 0.2643 0.0302
