Measurement E151M3114

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALU
εL: 0.0309
Q2: 0.0348 GeV2
W: 1625.0 GeV
Ebeam: 1.9889 GeV
ε: 0.8115

Slice: cos(θπ+) =

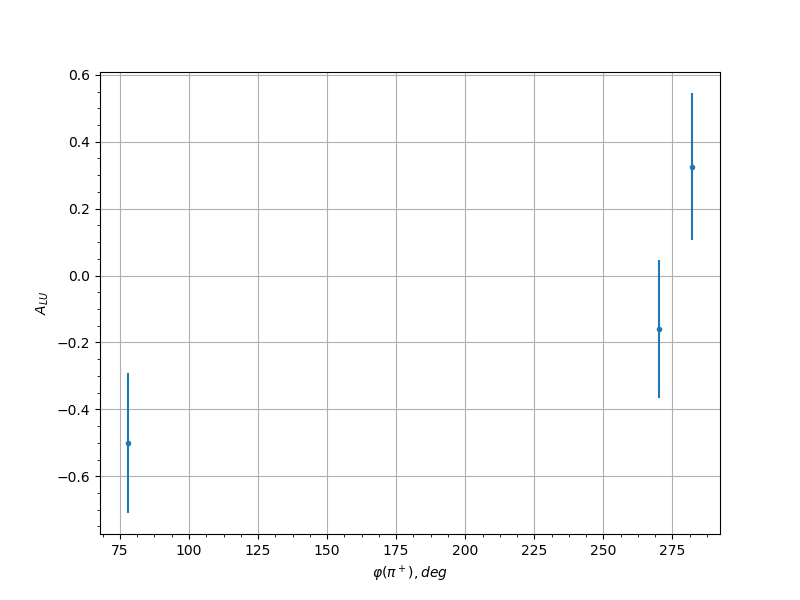

Measurement data
cos(θπ+) φ(π+), [deg] ALU uncertainty
0.35 78.0 -0.5006 0.2092
0.35 270.0 -0.1593 0.2064
0.35 282.0 0.3257 0.2199
0.45 18.0 0.0089 0.2548
0.45 30.0 0.1232 0.2725
0.45 66.0 -0.3721 0.257
0.45 78.0 0.2836 0.2197
0.45 258.0 -0.5439 0.2127
0.45 270.0 0.1225 0.2148
0.45 282.0 0.2298 0.2333
0.45 330.0 0.2717 0.2646
0.55 78.0 0.4302 0.2627
0.55 90.0 0.393 0.2671
0.55 114.0 0.0257 0.2454
0.55 126.0 0.0178 0.2064
0.55 138.0 -0.1126 0.2677
0.55 150.0 -0.1516 0.2699
0.55 198.0 0.1523 0.2446
0.55 210.0 -0.3642 0.2454
0.55 222.0 -0.0524 0.2522
0.55 258.0 -0.1738 0.2271
0.55 270.0 0.0849 0.2158
0.55 282.0 -0.2254 0.2781
0.65 78.0 -0.1227 0.2602
0.65 114.0 0.053 0.278
0.65 126.0 0.1211 0.2072
0.65 138.0 0.3911 0.2271
0.65 150.0 0.2199 0.2534
0.65 198.0 0.2702 0.2593
0.65 210.0 0.2183 0.2326
0.65 222.0 -0.3156 0.2079
0.65 234.0 0.2507 0.2645
0.65 270.0 -0.1355 0.2344
0.65 282.0 0.2635 0.2161
0.75 66.0 -0.1019 0.2747
0.75 78.0 0.416 0.2732
0.75 198.0 0.109 0.225
0.75 210.0 0.22 0.1995
0.75 222.0 0.2028 0.231
0.75 234.0 -0.0254 0.2395
0.75 246.0 0.5372 0.2431
0.75 270.0 0.2155 0.1884
0.75 282.0 0.0989 0.2034
0.85 114.0 -0.248 0.2128
0.85 126.0 0.0279 0.2424
0.85 198.0 -0.0658 0.2447
0.85 210.0 0.0513 0.2057
0.85 222.0 -0.33 0.2259
0.85 234.0 -0.1544 0.2492
0.85 258.0 0.1845 0.2543
0.85 270.0 -0.0013 0.2377
0.85 282.0 -0.0713 0.2519
